- Product Description
-
- Commodity name: VJ series 3D profile measuring instrument
The VJ series 3D profile measuring instrument, equipped with a high-precision line laser probe and combined with a high-precision image analysis algorithm, achieves non-contact scanning 3D profile imaging for fast and accurate dimensional measurement. In CNC mode, simply press the start button, and the instrument can automatically locate the measurement object, match the template, perform measurement evaluation, and generate reports according to the shape of the workpiece, truly achieving one-button fast and accurate measurement.
The VJ series 3D profile measuring instrument, equipped with a high-precision line laser probe and combined with a high-precision image analysis algorithm, performs non-contact scanning 3D profile imaging to achieve fast and accurate measurement of dimensions. In CNC mode, simply press the start button, and the instrument can automatically locate the measurement object, match the template, perform measurement evaluation, and generate reports according to the shape of the workpiece, truly achieving one-button fast and accurate measurement.
Application Fields
The VJ series 3D profile measuring instrument can be used in the fields of machinery, electronics, mobile phones, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, home appliances, printed circuit boards, medical devices, watches, tools, metrology and testing, etc.

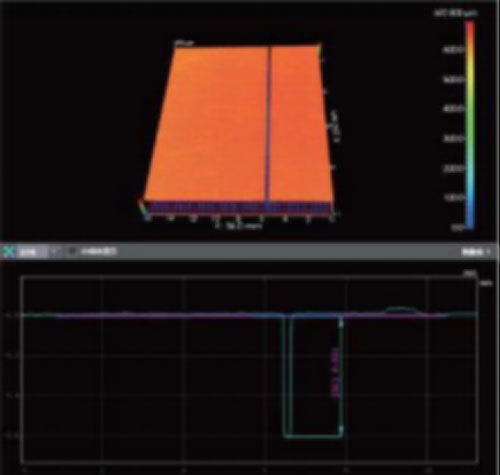

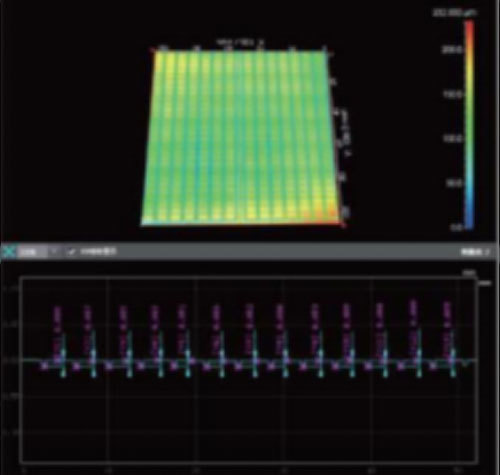

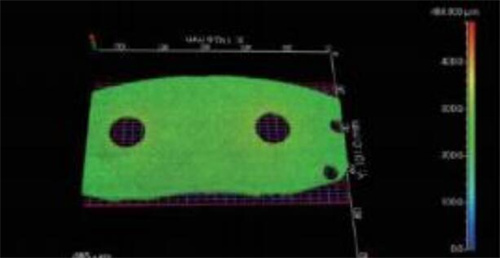

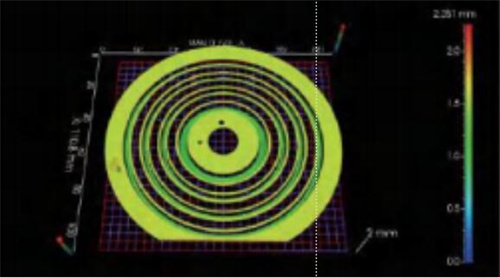

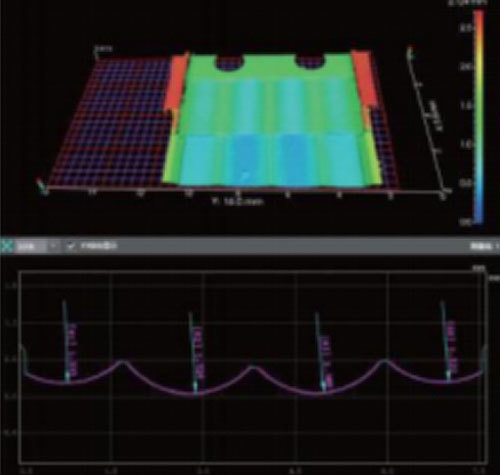

3D Measurement
Planarity/Surface Height Difference
Automotive
Precision Machining
5G
Semiconductor

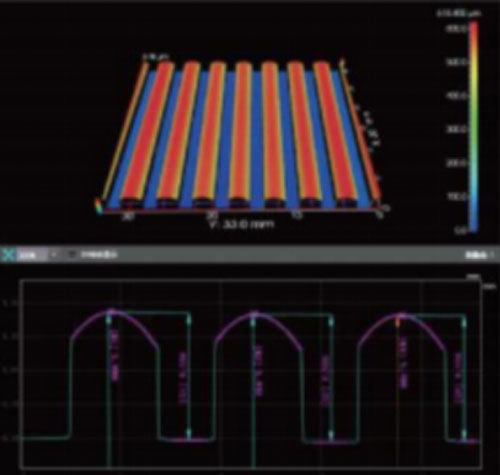

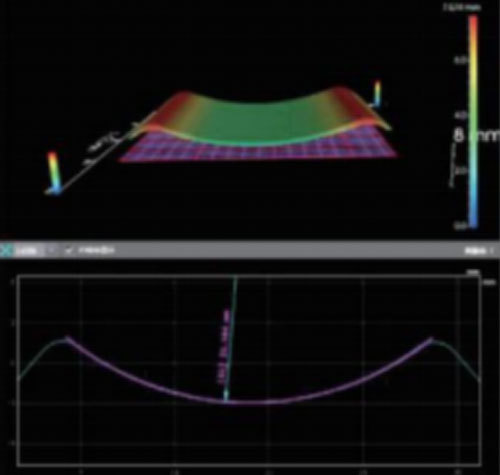

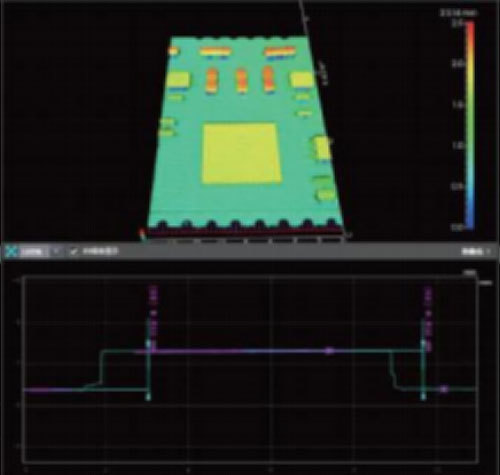

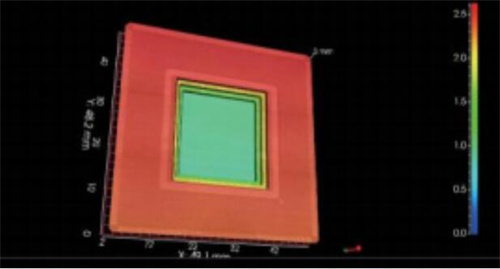

2D Measurement
Arc/Step/Spacing Detection
Magnetic Materials
Electronic Circuits
Circuit Boards
Microelectronics
Metal Cutting
5G
Technical Parameters
Product Model
VJ1000S
VJ1010S
VJ2010S
Field of View xy(mm)
100
100×100
200×100
Travel Range x z(mm)
100×75
100×100×75
200 × 100 × 75
Probe Parameters
Measurement Range (Z-axis) *1
18mm
Scanning Width *2
30mm
Repeatability*3
±1.5μm
Measurement Accuracy*4
±0.1%F.S.
Motion Axis Accuracy
XY *5
±(2.5+L/100)μm
Z *6
±(3.5+L/100)μm
Scanning Speed
XY *7
12~80mm/s
Grating Display Resolution
0.1μm
Display
24-inch LCD display (1920×1080)
Load Capacity
5kg
Dimensions
530×280×600mm
530×402×603 mm
530×503×603mm
Instrument Weight
25Kg
45Kg
65Kg
Measurement Software
VisionX 3D
Power Supply
200-240VAC，50/60Hz，300W
Environmental Resistance
Temperature 10℃ ~35℃, Humidity 20~80% (non-condensing)
*1 Measurement range 5mm~18mm optional *2 Scanning width 14mm~30mm optional
*3 At an ambient temperature of 20°C±1°C, tested using a national standard instrument. Repeatability ±1μm optional
*4 At an ambient temperature of 20°C±1°C, tested using a national standard instrument, F.S. is the Z-axis measurement range (mm)
*5 Ambient temperature is 20°C±1°C, the weight on the stage is less than 5kg, L is the amount of movement of the motion axis (mm)
*6 Ambient temperature is 20°C±1°C, the weight on the stage is less than 5kg, L is the amount of movement of the motion axis (mm)
*7 Determined according to the actual measurement accuracy requirements
