Programmable voltage waveform
IT6100 series linear DC power supply
The IT6100 series boasts high resolution of 0.1mV/0.1mA, ensuring more accurate test results for customers. Its voltage rise time is up to 20ms, and its high-speed List mode output allows for independent editing and execution of preset voltage waveforms, meeting the demands of high-speed testing.
Keywords:
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
The IT6100 series boasts high resolution of 0.1mV/0.1mA, ensuring more accurate test results for customers. Its voltage rise time is up to 20ms, and its high-speed List mode output allows for independent editing and execution of preset voltage waveforms, meeting the demands of high-speed testing.
Weight
Category:
Quantity
-
+
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: IT6100 series linear DC power supply
The IT6100 series boasts high resolution of 0.1mV/0.1mA, ensuring more accurate test results for customers. Its voltage rise time is up to 20ms, and its high-speed List mode output allows for independent editing and execution of preset voltage waveforms, meeting the demands of high-speed testing.
IT6100 Series High-Performance Programmable DC Power SupplyThe IT6100 series features high resolution of 0.1mV/0.1mA, allowing for more accurate test results. Its voltage rise time can reach 20ms, and the high-speed List mode output allows for independent editing and execution of preset voltage waveforms, meeting the needs of high-speed testing.
The series is built-in with a 5½-digit digital voltmeter and milliohmmeter for accurate measurement of additional signals. Using the standard SCPI communication protocol, customers can optionally use GPIB/USB and RS232 for programming control, making it a better choice for laboratory and production line DC power supplies.
It is a better choice for laboratory and production line DC power supplies.

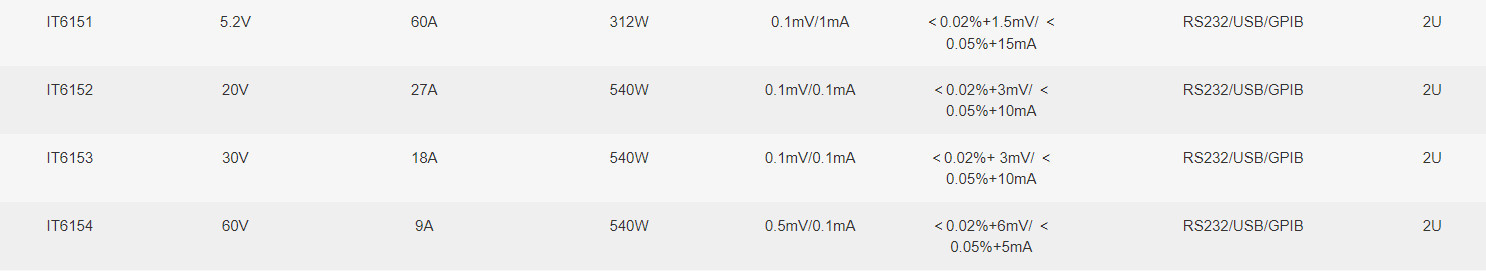

Product Model
Model Voltage Current Power Resolution Accuracy Interface Dimensions
Product Features
♦ Programmable Linear Power Supply
♦ High-brightness VFD display
♦ Low ripple and noise
♦ Built-in 5½ digit digital voltmeter
♦ Supports SCPI communication protocol
♦ Supports USB/RS232/GPIB communication interfaces
♦ High resolution and accuracy
♦ Provides LIST mode for quick switching of output voltage and current values
♦ Standard 19-inch rack mount
Product Functions and Advantages
LIST Mode

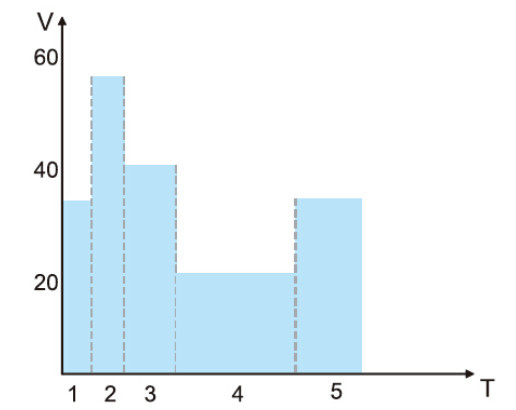

The IT6100 series power supply provides a high-speed List mode output, allowing the power supply to automatically output according to the sequence edited by the user. By editing the value and time of each step of the LIST operation, various output changes can be generated.
Sequence.
Remote Sensing Function
When the load consumes a large current, a voltage drop will be generated on the connection line between the power supply and the load terminals. To ensure measurement accuracy, the IT6100 series provides remote sensing terminals on the rear panel, which customers can use to measure the input terminal voltage of the device under test.
