Photovoltaic Glass Transmittance Measurement
JW-T03 Transmittance Detector
The Transmittance Tester is a general-purpose instrument that uses advanced spectral measurement technology for fast, full-spectrum transmittance measurement. It conforms to various measurement standards and comes with professional and comprehensive analysis software.
Keywords:
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
The Transmittance Tester is a general-purpose instrument that uses advanced spectral measurement technology for fast, full-spectrum transmittance measurement. It conforms to various measurement standards and comes with professional and comprehensive analysis software.
Weight
Category:
Quantity
-
+
Remaining Stock
0
隐藏域元素占位
- Product Description
-
- Commodity name: JW-T03 Transmittance Detector
The Transmittance Tester is a general-purpose instrument that uses advanced spectral measurement technology for fast, full-spectrum transmittance measurement. It conforms to various measurement standards and comes with professional and comprehensive analysis software.
Introduction
The Transmittance Detector is a general-purpose instrument that uses advanced spectral measurement technology for rapid, full-spectrum transmittance measurement, complying with various measurement standards: EN ANSI AS/NZS 、 BS EN ISO 12312-1 ： 2013+Al ：
2015、 ANSI Z80.3-2015 、 AS/NZS 1067.1 ：2016、GB10810.3-2006、 ISO 8980-3 14889(2013) 、 AS/NZS1337,1:2010+A2012 、 CSA Z94.3-07(R2014) 、 QB 2457-99 、
QB/T 2506-2017 、 GB/T 11417.5-2012 、 EN166:2001-EN170:2002 、 EN166:2001-EN172:1994 、 ANSI Z87.1-2015 、 ASTM F659-10 etc., with professional and comprehensive analysis software.
Application Areas
★Suitable for transmittance testing of various optical components.
★ Suitable for transmittance testing of various films.
★ Suitable for transmittance testing of various filters.
★ Suitable for transmittance testing of flat glass and lenses.
★ Suitable for transmittance testing of photovoltaic glass.
★ Transmittance testing of displays, mobile phone screens, and touch panels.
★ Suitable for spectral transmittance analysis, etc.
Mobile Phone Panel Transmittance Measurement
Flat Lens Transmittance Measurement
Filter Transmittance Measurement
Chemical/Scientific Research Transmittance Spectral Analysis
Thin Film Transmittance Measurement
Product Features
■Uses advanced spectral measurement technology for rapid, full-spectrum transmittance measurement.
■ Real-time display 360-1000nm Transmittance data and spectral curves for each wavelength band.
■ Users can customize measurement schemes and set average transmittance and calibration standards.
■ Can calculate CIE color parameters, xy 、 Lab 、dominant wavelength, saturation, purity, etc.
■ Professional testing software allows setting, storing, and printing list data according to actual operational needs.
■ The software includes powerful measurement analysis and management software, which can be customized according to customer requirements for measurement schemes, spectral data processing, quality inspection functions, CIE color measurement functions, open database, and report printing.
■ Complies with domestic and international measurement standards.
■ Online measurement can also be upgraded
Advantage 1
Wide spectral range, supplementary light path combination forming from ultraviolet - visible - infrared spectrum ( 360nm-1000nm) measurement light source, higher energy, shorter detection time.
Advantage 2
Ultra-fast spectral detection, using supplementary light functions at both ultraviolet and near-infrared ends, compared with similar products, the detection results are more accurate and stable. For the same sample detection, the black curve is our company's product, and the red curve is a similar comparative product.
Advantage 3
This product adheres to independent innovation, and this product has applied for a number of patent technologies and software copyright certificates.
Advantage 4
The size of the emitted spot of this product can be adjusted according to the size of the sample, making the measurement more accurate and error-free.
Advantage 5
This product adheres to innovation and quality, featuring accurate, comprehensive, rapid, convenient measurement results and a wide range of applications, and has been awarded a high-tech product qualification certificate.
Advantage 6
This product has authoritative certifications, has been calibrated by metrology institutions, and can be accompanied by a calibration certificate.
Advantage 7
This product can also perform sample CIE The color detection function can calculate various sample CIE color parameters, such as: x 、 y 、 LAB 、dominant wavelength, etc.
Advantage 8
You can set the upper and lower limits of any wavelength range for quality inspection, and quickly perform measurement results on the product OK 、 NG judgment, automatically sort out unqualified products, and statistically analyze the yield of products.
Technical Parameters
Model
JW-T03
Wavelength Range
360-1000nm
Spot Size
Diameter 0.8mm
Transmittance Measurement Range
0-100%
Detector
2048 Array Photoelectric Detector
Single Sampling Time
Better than 1s
Wavelength Accuracy
<1nm
Wavelength Repeatability
0.2nm
Display Accuracy
0.001%
Instrument Repeatability
≤1%
Dark Background Subtraction
Automatic
Measurable Parameters
Wavelength Transmittance, Average Transmittance, Transmittance Spectral Curve, Transmittance, Curve over Time, Transmitted Color xy, XYZ, Lab Etc.
Computer Operating System
USB Interface
Supported Operating Systems
Windows98/2000/XP/Vista/ Windows7/8/10
Standards Met
ENANSIAS/NZS、BSENISO12312-1： 2013+Al ：2015、ANSIZ80.3-2015、AS/NZS1067.1：2016、GB10810.3-2006、 ISO8980-314889(2013) 、 AS/NZS1337,1:2010+A2012 、 CSAZ94.3-07(R2014) 、 QB 2457-99 、 QB/T 2506-2017 、GB/T11417.5-2012、 EN166:2001
-EN170:2002 、 EN166:2001-EN172:1994 、ANSIZ87.1-2015、 ASTM F659-10 Etc.

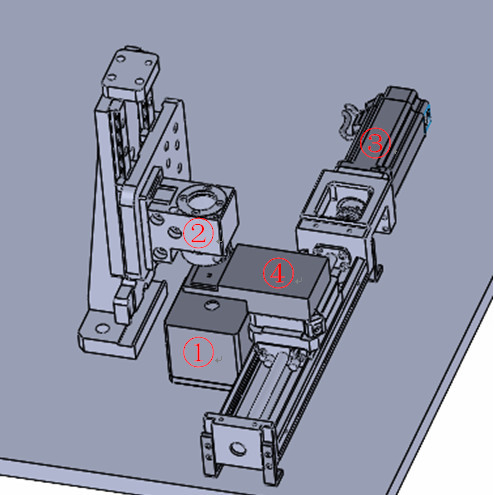

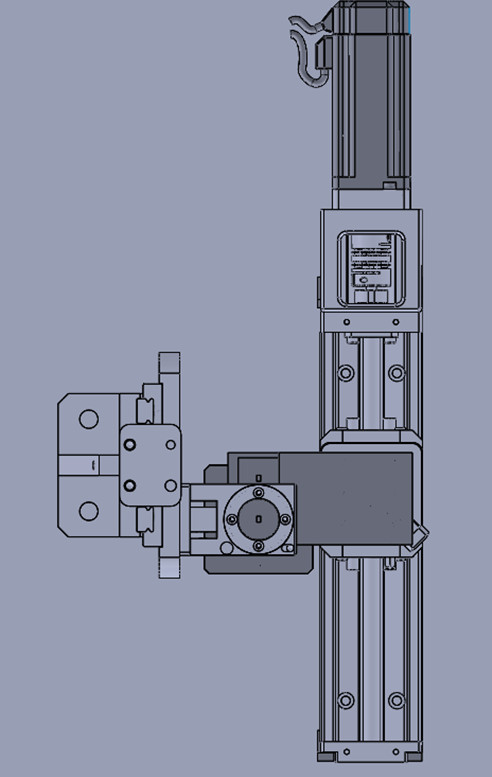

Single Machine Automatic Measurement
①Integrating Sphere Module
②Light Source Module, Precision Workbench & Spot Collimation System
③Y-table Linear Servo Motor Guide Rail
④Fixture
