ITS9500 Power Automatic Testing System
The ITS9500 series power supply automatic testing system is a convenient and practical testing system. Its small size provides test results comparable to traditional large-scale cabinet testing systems, helping customers significantly save space and reduce costs.
Keywords:
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: ITS9500 Power Automatic Testing System
The ITS9500 series power supply automatic testing system is a convenient and practical testing system. Its small size provides test results comparable to traditional large-scale cabinet testing systems, helping customers significantly save space and reduce costs.
ITS9500 Power Supply Automatic Test SystemThe ITS9500 series power supply automatic test system is a convenient and practical testing system. Its small size provides test results comparable to traditional large-scale cabinet test systems, helping customers significantly save space and reduce costs. It can support 8 simultaneous testing of multiple power supplies, thanks to ITECH its rich power supply and load product lines. Users can choose instruments suitable for their needs to build a test system, providing greater flexibility and scalability for the system architecture. The system provides over 80 test items. Users can select test items based on the characteristics of the device under test to easily complete the test. Widely used in testing AC and DC power supplies, power converters, chargers, on-board chargers, and other products.
System Features
Integrates DSO, electronic load, AC power supply, DC power supply, noise analysis, and timing analysis functions, easily installable on a table or in a standard cabinet.
♦ High cost performance
♦ Modular design, easy to maintain♦ High test accuracy
♦ Provides nearly 40 test items
♦ Test program management/editing function
♦ Statistical report output and editing function
♦ Multi-level management authority setting function
♦ User rights setting
♦ Personnel access system records
♦ Software supports BarCodeReader
♦ Optional external fixture for automated testing
♦ Compliant with ENERGY STAR measurement specificationsTest Items
Input Test
Output Test Protection Test Input/Output Test
Input voltage limit test
Input frequency limit test
Input power disturbance test
Power-off protection test
Input RMS current test
Input peak current test
Static Test
Dynamic Test
Output overcurrent protection test
Output overvoltage/undervoltage protection test
Short circuit protection test
Overpower protection test
Low voltage protection test
Timing/Dynamic Test Stability Test Special Test Power-on time test
Rise time test
Power-off time test
Fall time test
Overshoot voltage test
Surge current test
Power effect test
Load effect test
Mixed effect testAdditional measurement point test
Discharge test
Supports analog output controlSupports PWM output control
Supports CAN bus read/write
Supports GPIB read/write, supports RS232 read/write
Supports RS485 read/write
Supports I2C read/write
Supports TTL signal control
Supports relay control
Supports barcode reading
Modular design, easy to maintain
The ITS9500 power supply automatic test system adopts a modular design, building a convenient, fast, and fully functional power supply testing platform. This makes future maintenance easier and reduces the impact on the production line.

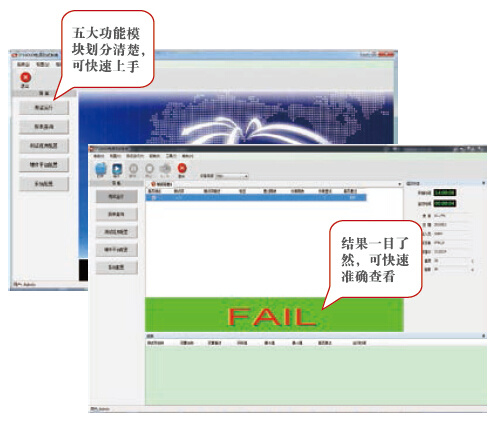

Simple operation, clear results
The ITS9500 test software, with the help of the test system, can realize the editing, running, testing, and data analysis functions of power supply test items.
♦ The software operating interface is concise, with five functional modules clearly divided, clear at a glance, simple to operate, and even those without programming skills can quickly get started.
♦ The final test result, PASS or FAULT, will be prominently displayed on the interface for quick and accurate viewing by the operator.
