IT-N6900 Series Programmable DC Power Supply
The IT-N6900 series DC power supplies offer 60V and 150V outputs with power ratings of 850W and 1500W. The entire series features a black panel with a high-definition display, low ripple, and low noise, providing stable and clean DC power. They offer two current ranges and a current resolution as high as 1 μA. With CC/CV priority settings and added Foldback protection, they easily adapt to various loads, including DC-DC converters, semiconductor lasers, automotive electronics, communication electronics, motors, and photovoltaic components. The IT-N6900 series supports SCPI and LabVIEW drivers and features built-in USB/LAN/digital IO communication interfaces. GPIB/RS232 and analog interfaces are optional, making them suitable for remote control and system integration. Applications include R&D, production lines, and educational institutions.
Keywords:
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: IT-N6900 Series Programmable DC Power Supply
The IT-N6900 series DC power supplies offer 60V and 150V outputs with power ratings of 850W and 1500W. The entire series features a black panel with a high-definition display, low ripple, and low noise, providing stable and clean DC power. They offer two current ranges and a current resolution as high as 1 μA. With CC/CV priority settings and added Foldback protection, they easily adapt to various loads, including DC-DC converters, semiconductor lasers, automotive electronics, communication electronics, motors, and photovoltaic components. The IT-N6900 series supports SCPI and LabVIEW drivers and features built-in USB/LAN/digital IO communication interfaces. GPIB/RS232 and analog interfaces are optional, making them suitable for remote control and system integration. Applications include R&D, production lines, and educational institutions.
IT-N6900 Series Programmable DC Power SupplyIT-N6900 Series DC power supplies include 60V and 150V，850W and 1500W output. The entire series uses a black panel and high-definition screen control, low ripple, low noise, and can provide stable and pure DC power, two ranges of current, up to 1 μ A current resolution, with CC 、 CV priority setting, newly added Foldback protection, easily adaptable to DC-DC semiconductor lasers, automotive electronics, communication electronics, motors, photovoltaic components, and other types of devices under test. IT-N6900 Series supports SCPI and LabVIEW driver, built-in USB/LAN/ digital IO communication interface, optional GPIB/RS232 and analog interfaces suitable for remote control and system integration, applicable to R&D, production lines, schools, and various occasions.

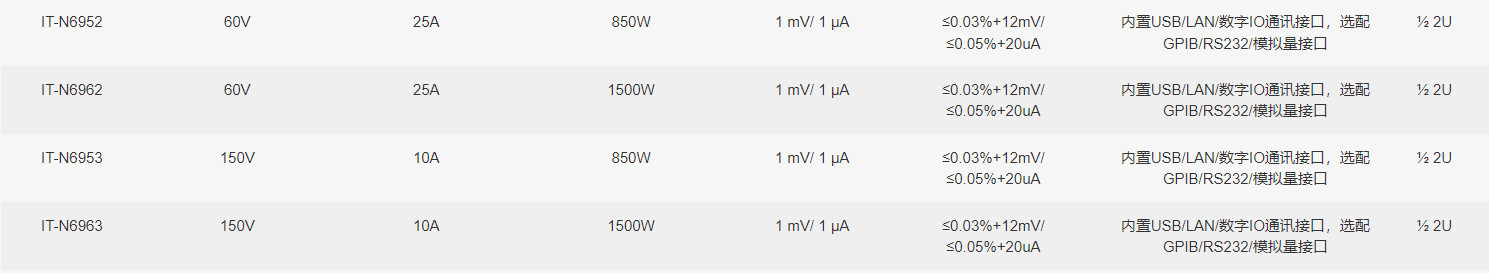

Product Model
Model Voltage Current Power Resolution Accuracy Interface Dimensions
Product Features
♦ 4.3” LCD High-definition Screen
♦ Voltage range: 60V, 150V,
♦ Power output: 850W, 1500W, wide range output
♦ Two ranges of current, 1 μ A current resolution
♦ Lower voltage and current ripple noise
♦ Using a new transformer method, lighter weight, higher efficiency and output stability
♦ Faster voltage rise and fall times
♦ Supports List programming and Voltage and current slope setting
♦ With CC, CV priority setting, adaptable to various devices under test
♦ Trend graph analysis, monitoring the voltage, current, and power curves of the device under test for a long time
♦ Remote compensation function, compensates for line voltage drop
♦ Supports OVP, UVP, OCP, OPP, OTP, Foldback protection functions
♦ Built-in USB/LAN/Digital IO communication interface, optional GPIB/RS232 and analog interface
♦ Supports SCPI, LabVIEW programming
Application Areas
♦ Automotive Electronics
♦ Motors
♦ Consumer Electronics
♦ Semiconductors
♦ Batteries
♦ Communication Electronics
♦ Production lines, R&D, testing institutions, universities

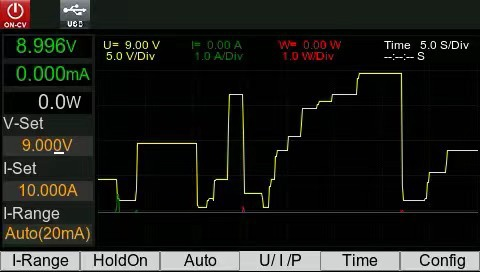

Data recording function (trend graph analysis)
The IT-N6900 series can achieve multiple voltage and current combinations at a fixed power. A single power supply can meet the testing needs of different devices under test with high voltage and low current or high current and low voltage. At the same time, because the output of the power supply voltage and current is controlled by the limit power, it will show automatic ranging of voltage and current switching.
List Programming Function
The IT-N6900 LIST operation can provide up to 100 steps of sequence output, and a total of 10 sequence files can be edited. Users can generate various output change sequences by editing sequential operations, each step including voltage, current, time, and whether to loop steps.

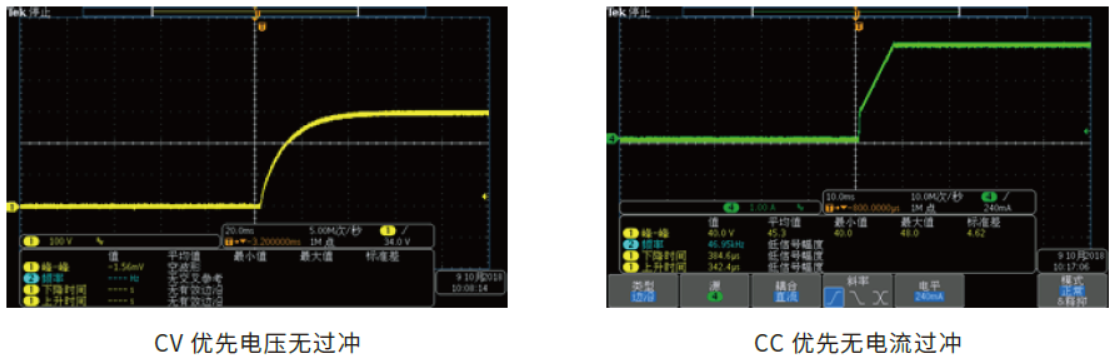

CC&CV Priority Function
The IT-N6900 series uses the CC/CV priority concept, which can help users solve various harsh problems in long-term testing applications, making high-speed or overshoot-free power supply applications more flexible. Users can choose the CV priority mode to obtain a faster voltage rise speed for test scenarios requiring high-speed voltage; or they can choose the CC priority mode, the output current is overshoot-free, used to test the constant current working characteristics of the device under test. Applicable to laser testing, integrated circuit testing, charge and discharge testing, automotive electronic power transient simulation and characterization, etc.
