- Product Description
-
- Commodity name: IT7200 Series Programmable AC/DC Power Supply
The IT7200 series programmable AC/DC power supply is designed to provide a high-performance, cost-effective testing solution for R&D, production, and laboratory testing, with the dual use of desktop and rack-mounted. It provides 300VA/600VA power output within a 1/2 2U size, and built-in USB/LAN communication interface for easy remote control and data storage.
IT7200 Series Programmable AC/DC Power SupplyThe IT7200 series programmable AC/DC power supply is designed to provide a cost-effective testing solution for R&D, production, and laboratory testing, meeting the dual needs of desktop and rack-mounted use. It provides 300VA/600VA power output within a 1/2 2U size, with built-in USB/LAN communication interfaces for easy remote control and data storage. This series of power supplies has powerful waveform editing and simulation functions, as well as complete protection functions. Through LIST, custom waveforms, or harmonic simulation, it can simulate various AC/DC power grid disturbance waveforms, such as voltage dips and short-term power outages. It is widely used in small household appliances, power tools, power modules, LED drivers, and Power IC fields.
Product Model

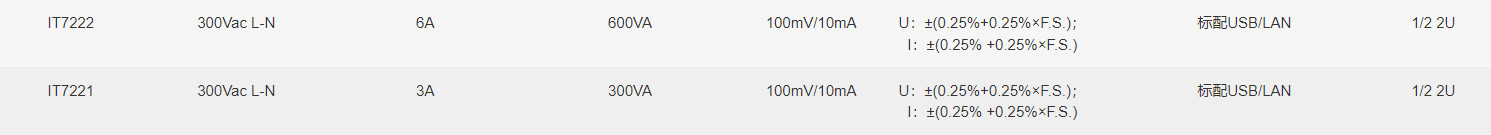

Model Voltage Current Power Resolution Accuracy Interface Dimensions
Product Features
♦ ½ 2U compact design, suitable for both desktop and rack-mounted testing
♦ Adjustable output frequency 45-500Hz, voltage range 0-300Vac L-N
♦ Multiple output modes: AC, DC, AC+DC
♦ A variety of output waveforms: Sine/Square/Triangle/Sawtooth/Clip sine
♦ Built-in AC power meter and up to 50th harmonic analysis function
♦ Built-in extensive waveform database, providing 30 built-in harmonic distortion waveforms
♦ List mode simulates mains power reproduction, enabling instantaneous power interruption simulation
♦ Arbitrary waveform output function, users can customize waveforms
♦ Up to 50th harmonic simulation function♦ Output waveform start/stop phase angle can be set
♦ Standard USB/LAN communication interface, provides free host computer software
Product Applications
♦ R&D, verification, and testing of small power supply manufacturing
♦ Low-power household appliance PCB board power supply testing
♦ Testing of industrial low-power AC servo motors
♦ Testing of connectors, protective switches, and other devices
♦ Production and process control
♦ Power IC device aging test
♦ Automated testing systemVarious output modes can be achieved: AC, DC, AC+DC

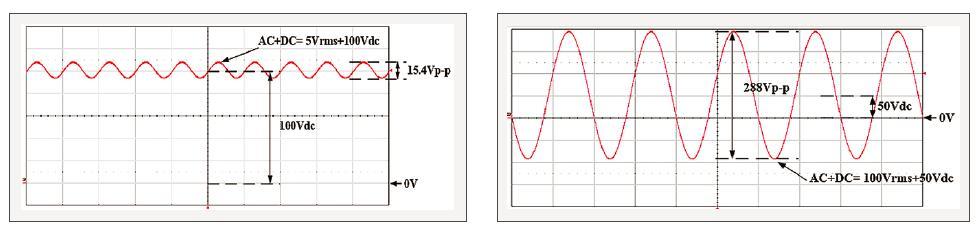

The IT7200 series can achieve various output modes: AC, DC, and AC+DC. It not only provides pure AC/DC output but also provides an AC+DC output mode to expand applications and test DC bias components.

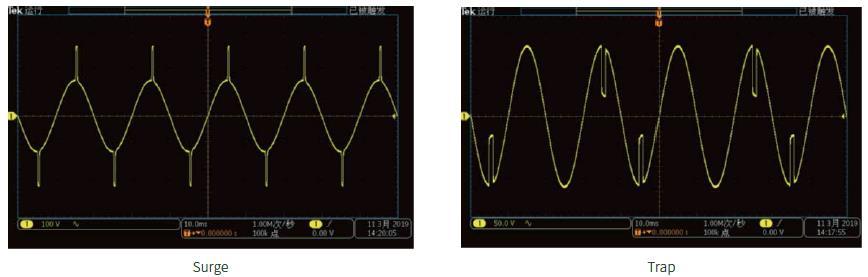

Surge/Trap Function
The IT7200 series provides surge/trap simulation. Users can add surges/traps to the output sine wave to simulate abnormal voltage fluctuations in the circuit system, thereby testing the performance of the device under such conditions. The IT7200 series also provides up to 50th harmonic simulation and measurement functions. Users can also use the powerful custom waveform function to simulate various complex AC/DC power supply disturbances.
Built-in Extensive Waveform Library
The IT7200 series has built-in square, sawtooth, triangle, and other user-defined waveforms, as well as up to 30 built-in distortion waveforms for user editing and retrieval. These can be used as base waveforms or retrieved during list programming.

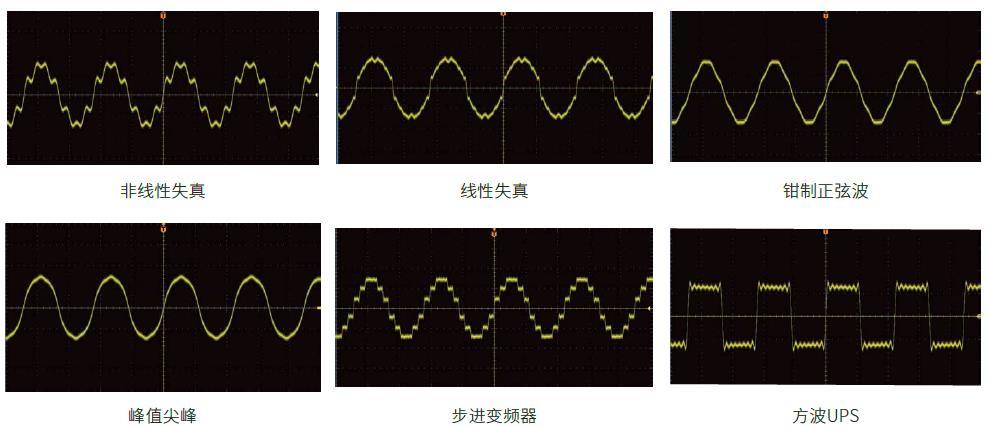

The IT7200 series has 30 built-in harmonic distortion waveforms.
