HYHVS-5ZL/10ZL/30ZL/50ZLT3.1 Fully Automatic Digital Vickers Hardness Tester

The HYHVS-5ZL, 10ZL, 30ZL, and 50ZLT3.1 fully automatic Vickers hardness testers feature an 8-inch LCD touch screen and an automatic turret digital Vickers hardness tester. They are equipped with a fully automatic micro/Vickers hardness image measurement system. A computer controls the digital Vickers hardness tester, automatic loading stage, and elevating screw (T3.1), displaying the hardness indentation image on the computer screen. This hardness testing instrument integrates various professional technologies, including electrical control, optical imaging, mechanical displacement, image analysis, and computer processing.

HYHVS-5ZL/10ZL/30ZL/50ZLT3.1 Fully Automatic Digital Vickers Hardness Tester

Product Overview:

  The HYHVS-5ZL, 10ZL, 30ZL, 50ZLT3.1 fully automatic Vickers hardness testers feature an 8-inch LCD touchscreen main unit and an automatic turret digital Vickers hardness tester. Equipped with a microscopic/Vickers hardness image fully automatic measurement system, it controls the digital Vickers hardness tester, automatic stage, and elevating screw (T3.1) via computer. Hardness indentations are imaged on the computer screen. This hardness testing instrument integrates various professional technologies including electrical control, optical imaging, mechanical displacement, image analysis, and computer processing. Employing a precise mechanical design and controlled by a high-speed ARM processor for electrical operation, it utilizes advanced technologies such as a high-definition optical measurement system and photoelectric sensing. Combining mechanics, optics, and electronics, it improves the measurement accuracy of microscopic/Vickers or Knoop hardness. It is an ideal hardness testing instrument for research and testing in universities, research institutions, factories, and quality inspection departments.

Features:

The HYHV300T3.1 microscopic/Vickers hardness image automatic measurement system directly controls the hardness tester main unit, automatic coordinate stage, and elevating screw (T3.1). It allows real-time image observation and hardness value measurement, supporting both manual and automatic measurement. The measurement process is fast and accurate. The system automatically moves the specimen along a preset path and takes readings, achieving intelligent functions such as automatic turret, automatic focusing (T3.1), automatic loading, automatic displacement, and automatic reading, meeting the needs of high-end users.

• The system uses a 3-megapixel digital camera to acquire images, effectively improving measurement accuracy;
• The automatic coordinate stage offers various control methods, including computer control, manual operation, and joystick operation;
• The system features a one-button measurement function for effective hardened layer depth. The computer controls automatic hardness testing, automatically generates a hardness curve, and automatically calculates the effective hardened layer depth. It can also print the effective hardened layer depth curve and report;
• The system has error correction and calibration functions to correct systematic errors of the hardness tester;
• It can display in real-time the location of the hardness indentation, facilitating the selection of Vickers hardness measurement for different microstructures;
• A system scale can be superimposed on the indentation image;
• The system has database query and management functions.

Applications:

• Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;
• Hard alloys, glass, ceramics, agate, gemstones, etc.;
• Measurement of depth and gradient of carburized layers, nitrided layers, and quenched hardened layers;
• Vickers hardness measurement of small parts such as thin plates and thin films.

Main Unit Features:

• Automatic turret; frictionless spindle, high test force accuracy;
• Electronic loading, fully automatic closed-loop loading control system;
• High-precision optical measurement system, precision coordinate stage;
• Uses a high-speed ARM processor and an 8-inch LCD touchscreen;
• Chinese and English interface switching; various hardness value conversions;
• Dynamic display of time-force curves during loading and unloading;
• The screen displays test force, indentation length, dwell time, number of measurements, etc.;
• Automated testing process, simple operation, no human error;
• Automatic correction of hardness values on concave and convex surfaces;
• Data storage function in the database; test data is synchronized, stored, and can be exported;
• Equipped with USB and RS232 interfaces for convenient data processing;
• Equipped with a mini printer for direct printing of test results;
• Knoop indenter can be optionally equipped for Knoop hardness testing;
• Accuracy meets GB/T4340.2, ISO6507-2 and American ASTM E92.

Main Unit Technical Parameters:

HYHV300T3.1 Microscope / Vickers Hardness Image Automatic Measurement System Function Introduction

1 Main functions: (There may be slight differences in different software versions)

• System linkage: The system uses RS232 interface to achieve system linkage with the hardness tester. The software controls the hardness tester in real time, adjusts the brightness, controls the turret, switches lenses, and loads the load and reads directly;
• Pressure linkage: After the hardness tester pressure conversion, the system senses the pressure change and adjusts accordingly;
• Turret linkage: The software controls the hardness tester to switch between the objective lens and - indenter;
• Loading linkage: The software controls the hardness tester for loading without manual control of the hardness tester;
• Measurement linkage: The software controls the hardness tester turret and loading, and directly measures the hardness value;
• Platform linkage: Professional automatic platform and control, completely controlled by the system;
• Platform dragging: Drag the mouse on the active image to control the displacement of the platform in various directions;
• Focus linkage: T3.1 fully automatic system configuration. The computer controls the automatic rise and fall of the hardness tester leadscrew and automatic focusing. Manual raising and lowering of the leadscrew and observation for focusing is unnecessary. This saves time and effort, reduces human error, and improves accuracy;
• Direction setting: According to the depth direction, set the corresponding platform displacement direction to ensure the best measurement results;
• Path planning: The automatic coordinate stage automatically moves the sample to the specified position according to the set trajectory; Multiple schemes support indentation testing   Path planning. The edge normal can be set, Z Character, sawtooth, arc, and straight-line test paths;
• Path adjustment: Arbitrary adjustments such as adding, deleting, modifying, and moving can be made at path points;
• Measurement range: Supports from 10 grams to 50 kilograms of force;

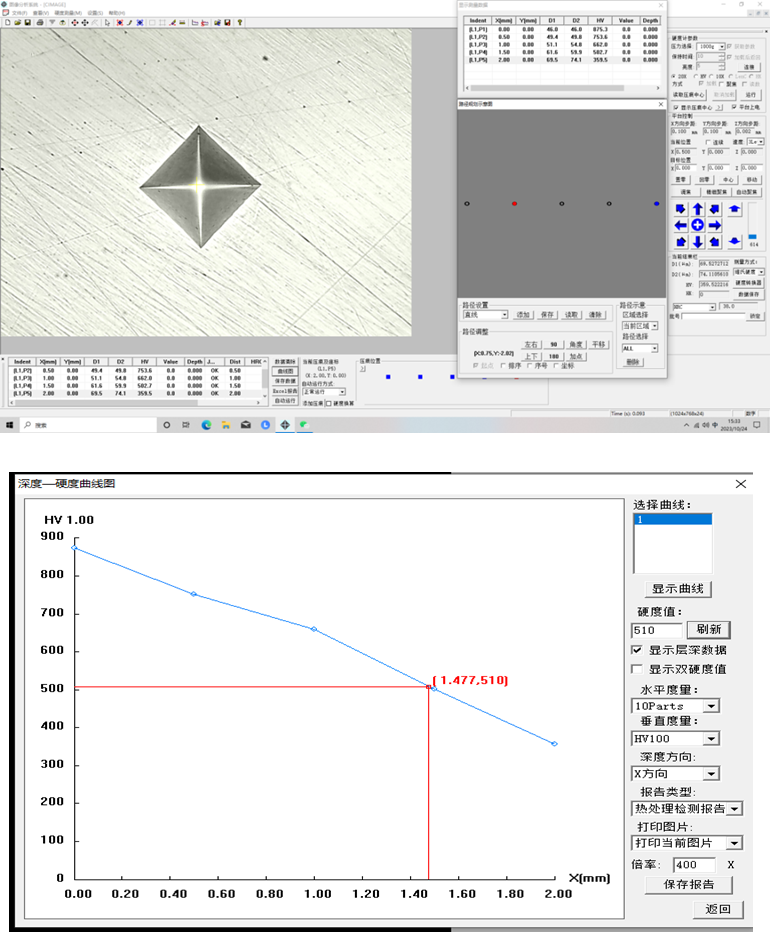

• Image acquisition: Displays hardness image in real time. Images can be stored and printed, and the output magnification can be set;
• Automatic measurement: Automatically finds the four vertices of the indentation and directly reads the hardness value. It is fast and accurate;
• Diagonal measurement: Measurement is performed by tangential to the four vertices of the indentation with four lines, and the hardness value is read;
• Four-point measurement: The mouse clicks the four vertices of the indentation to read the hardness value, with simultaneous real-time display of the enlarged image;

• Automatic scanning: It can automatically scan the sample edge and contour;
• Hardness conversion: According to national standards, automatic conversion of Brinell - Rockwell - Vickers - Knoop and other hardness values is performed and displayed in real time;
• Depth curve: Plot hardness based on measured data - depth curve, can output dual hardness curve graph ( HV and HRC/HRA etc.).
• Graphic report: Automatically records measurement data and automatically generates hardness - depth curve, saves or prints hardness - depth curve, indentation image and all indentation measurements. All reports are in WORD document format;
• Image printing: Users can set the export mode of indentation images, which is divided into all images, current images or no images output;
• Results Statistics: The measurement results of multiple indentations are exported in EXCEL data format, and automatically statistics the number of measurements, maximum hardness, minimum value, average value, standard deviation, etc.

2 Main features:

• Wide applicability: Can be connected with Huayin's full series of Vickers and microhardness testers;
• Easy installation: USB2.0 Connect to the computer, no card insertion is required during installation;
• Stable performance: As long as the hardness tester image is clear and uniform, even if there are a small number of scratches or rust on the indentation, automatic reading is possible;
• Powerful functions: Manual reading, automatic reading, hardness conversion, depth hardness curve, indentation image, graphic report function;
• Easy to use: Calibration is done through hardness blocks, Customers can operate quickly and easily. After a little training, they can use it skillfully;
• Automatic reading: Unique automatic reading algorithm, automatically reads various indentations, fast speed and high accuracy;
• Good repeatability: High repeatability of automatic reading meets the professional requirements of users.

3、X-Y Automatic coordinate stage parameters :

• The electric worktable adopts high-quality stepping motor, high precision and good reliability
• Operation method: manual, computer control, or joystick operation
• Table size: 120 x 130 ( mm )
• X Axis stroke: 50 mm
• X Axis stroke: 50 mm
• Minimum step: ≤ 2.5 μm
• Repeatability: ≤ 2 μm
• Moving speed: five-speed adjustable
• Power     supply: AC 220V ，50/60Hz
• Communication interface: RS232 Serial port
• Weigh     t: Approximately 4Kg
