HYHVS-5ZL/10ZL/30ZL/50ZLT2.1 Automatic Digital Vickers Hardness Tester

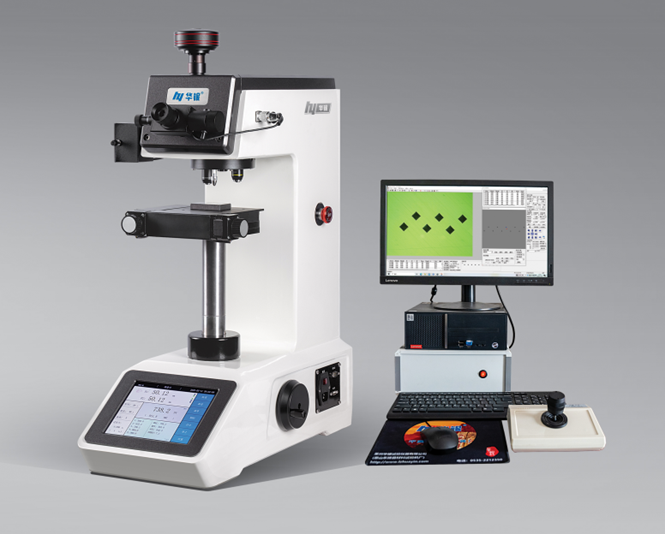

HYHVS-5ZL, 10ZL, 30ZL, 50ZLT2.1 automatic Vickers hardness tester. The main unit is an 8-inch LCD touchscreen, automatic turret digital Vickers hardness tester, equipped with a microscopic/Vickers hardness image fully automatic measurement system. It controls the digital Vickers hardness tester and the automatic stage through a computer, imaging the hardness indentation on the computer screen. It is a hardness testing instrument integrating various professional technologies such as electrical control, optical imaging, mechanical displacement, image analysis, and computer processing.

HYHVS-5ZL/10ZL/30ZL/50ZLT2.1 Automatic Digital Vickers Hardness Tester

Product Overview:

  The HYHVS-5ZL, 10ZL, 30ZL, 50ZLT2.1 automatic Vickers hardness testers feature an 8-inch LCD touch screen and an automatic turret digital Vickers hardness testing system. Equipped with a fully automatic micro/Vickers hardness image measurement system, they are controlled by a computer, which also displays the hardness indentation image on the screen. These hardness testing instruments integrate various professional technologies, including electrical control, optical imaging, mechanical displacement, image analysis, and computer processing. Precision mechanical design, ARM high-speed processor control of the testing process, and a high-definition optical measurement system with photoelectric sensing technology combine to improve the measurement accuracy of micro/Vickers or Knoop hardness. They are ideal hardness testing instruments for research and testing in universities, research institutions, factories, and quality inspection departments.

Functions and Features:

The HYHV300T2.1 micro/Vickers hardness image automatic measurement system directly controls the hardness tester host and the automatic coordinate stage. It allows real-time image observation and hardness value measurement, supporting both manual and automatic measurement. The measurement process is fast and accurate. The system can automatically move the sample along a preset trajectory and take readings, realizing intelligent functions such as automatic turret, automatic loading, automatic displacement, and automatic reading, meeting the needs of high-end users.

• The system uses 300  a ten-megapixel digital camera to capture images, effectively improving measurement accuracy;
• The automatic coordinate stage offers multiple control methods: computer control, manual operation, and joystick operation;
• The system features a one-button measurement function for effective hardened layer depth. The computer controls automatic hardness testing, automatically generates a hardness curve, and automatically calculates the effective hardened layer depth. It can also print the effective hardened layer depth curve and report;
• The system has error correction and calibration functions to correct systematic errors in the hardness tester;
• It can display in real-time the location of the hardness indentation, facilitating the selection of different microstructures for Vickers hardness measurement;
• A system scale can be superimposed on the indentation image;
• The system has database query and management functions.

Application Range:

• Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;
• Hard alloys, glass, ceramics, agate, gemstones, etc.;
• Measurement of the depth and gradient of carburized layers, nitrided layers, and quenched hardened layers;
• Vickers hardness measurement of small parts such as thin plates and thin sheets.

Main Features of the Host:

• Automatic turret; frictionless spindle, high test force accuracy;
• Electronic loading, fully automatic closed-loop loading control system;
• High-precision optical measurement system, precision coordinate stage;
• Uses an ARM high-speed processor and an 8-inch LCD touch screen;
• Chinese and English interface switching; various hardness value conversions;
• Dynamic display of time-force curves during loading and unloading;
• The screen displays test force, indentation length, holding time, number of measurements, etc.;
• Automated testing process, simple operation, no human operation error;
• Automatic correction of hardness values on uneven surfaces;
• Data storage function, test data is stored synchronously and can be exported;
• Equipped with USB and RS232 interfaces for convenient data processing;
• Equipped with a mini printer for direct printing of test results;
• Knoop indenter can be optionally equipped for Knoop hardness testing;
• Accuracy meets GB/T4340.2, ISO6507-2, and ASTM E92.

Host Technical Parameters:

HYHV300T2.1 Microscope / Vickers hardness image automatic measurement system function introduction

1 Main functions: (There are slight differences in different versions of software)

• System linkage: The system uses the RS232 interface to realize the linkage between the system and the hardness tester. The software controls the hardness tester in real time, adjusts the brightness, controls the turret, switches lenses, changes the load and reads the data directly;
• Pressure linkage: After the hardness tester pressure conversion, the system senses the pressure change and adjusts it in time;
• Turret linkage: The software controls the hardness tester to switch the objective - and indenter;
• Loading linkage: The software controls the hardness tester for loading without manual control of the hardness tester;
• Measurement linkage: The software controls the hardness tester turret, loading and directly measures the hardness value;
• Platform linkage ： Professional automatic platform and control, completely controlled by the system;
• Platform dragging: On the active image, drag the mouse to control the displacement of the platform in various directions;
• Direction setting ： According to the depth direction, set the corresponding platform displacement direction to ensure the best measurement results;
• Path planning: The automatic coordinate stage automatically moves the sample to the specified position according to the set trajectory; Multiple schemes support the planning of indentation test path, and the edge normal line, Z-shape, sawtooth shape, arc shape, straight line type and other test paths can be set;
• Path adjustment ： Any adjustments such as adding, deleting, modifying, and moving can be made at the path points;
• Measurement range Supports all force values from 10 grams to 50 kilograms;
• Image acquisition ： Displays the hardness image in real time. The image can be stored and printed, and the magnification of the output image can be set;
• Automatic measurement: Automatically finds the four vertices of the indentation and directly reads the hardness value, which is fast and accurate;
• Diagonal measurement: The four vertices of the indentation are measured by four side lines tangent to them, and the hardness value is read;
• Four-point measurement: The four vertices of the indentation are clicked by the mouse, and the hardness value is read. The enlarged image is displayed in real time;
• Automatic scanning: Can automatically scan the sample edges and contours;
• Hardness conversion: According to national standards, automatic conversion of Brinell - Rockwell - Vickers - Knoop and other hardness values are converted and displayed in real time;

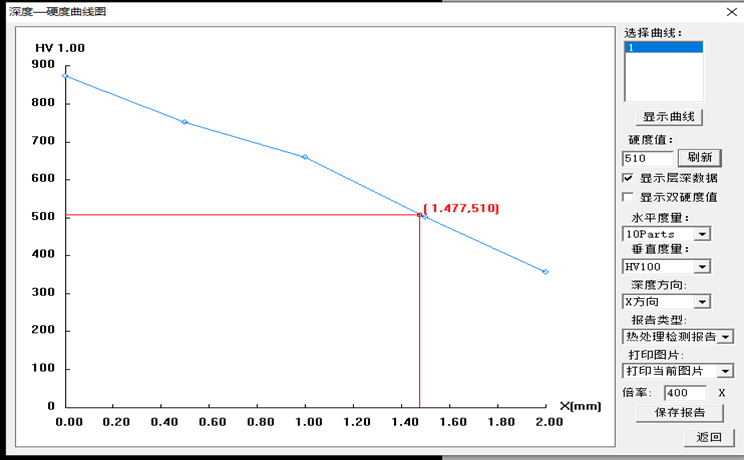

• Depth curve: Draw the hardness according to the measurement data - depth curve, which can output a dual hardness curve ( HV and HRC/HRA etc.).
• Image report: Automatically records the measurement data, automatically generates the hardness - depth curve, saves or prints the hardness - depth curve, indentation image and all indentation measurement values. All reports are saved as WORD documents;
• Image printing: Users can set the export mode for indentation images, including all images, current image, or no image output;
• Results Statistics: Exports the measurement results of multiple indentations in EXCEL data format, and automatically calculates the number of measurements, maximum hardness, minimum hardness, average hardness, standard deviation, etc.

2 Main Features:

• Wide Applicability: Compatible with the full range of Vickers and microhardness testers from Huayin.
• Easy Installation: USB2.0 Connects to the computer via a port, no card insertion required during installation.
• Stable Performance: As long as the hardness tester imaging is clear and uniform, automatic reading is possible even if the indentation has minor scratches or rust.
• Powerful Functions: Manual reading, automatic reading, hardness conversion, depth hardness curve, indentation image, and image-text report functions.
• User-Friendly: Calibration is performed using hardness blocks, making it convenient and quick for customers to operate. A little training is all it takes to become proficient.
• Automatic Reading: Unique automatic reading algorithm for automatic reading of various indentations, with high speed and accuracy.
• Good Repeatability: High repeatability of automatic reading, meeting professional user requirements.

3、X-Y Automatic Coordinate Stage Parameters :

• The electric stage uses high-quality stepper motors, ensuring high precision and reliability.
• Operation Modes: Manual, computer-controlled, or joystick operation.
• Table Size: 120 x 130 （ mm ）
• X Axis Travel: 50 mm
• X Axis Travel: 50 mm
• Minimum Step: ≤ 2.5 μm
• Repeatability: ≤ 2 μm
• Moving Speed: Five-speed adjustable
• Power     Source: AC 220V ，50/60Hz
• Communication Interface: RS232 Serial Port
• Weight:     Approximately 4Kg
