HVS-5Z/10Z/30Z/50Z Digital Vickers Hardness Tester
The HVS-5Z/10Z/20Z/30Z/50Z digital display Vickers hardness tester is a high-tech product integrating optics, mechanics, and electronics. It features good reliability, operability, and intuitiveness. This new Vickers and Knoop hardness testing instrument uses precision mechanical technology, photoelectric technology, and digital microprocessing technology.
Keywords:
Hardness tester and consumables
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: HVS-5Z/10Z/30Z/50Z Digital Vickers Hardness Tester
The HVS-5Z/10Z/20Z/30Z/50Z digital display Vickers hardness tester is a high-tech product integrating optics, mechanics, and electronics. It features good reliability, operability, and intuitiveness. This new Vickers and Knoop hardness testing instrument uses precision mechanical technology, photoelectric technology, and digital microprocessing technology.

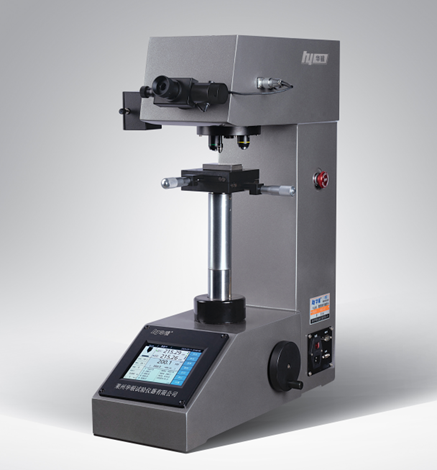

HVS-5Z/10Z/30Z/50Z Digital Vickers Hardness Tester
Main Features:
- Automatic turret; frictionless spindle, high test force accuracy ；
- Electronic loading, fully automatic closed-loop loading control system;
- High-precision optical measurement system, precision coordinate test table;
- Using ARM high-speed processor, 5.6 inch LCD touch screen;
- Chinese and English interface switching; various hardness value conversion;
- Loading and unloading process Dynamic time display - Force curve;
- The screen can display the test force, indentation length, holding time, number of measurements, etc.;
- Automated test process, simple operation, no human operation error;
- Automatic correction of concave and convex surface hardness values;
- It has a database function to store data, and the test data is stored synchronously and can be exported;
- Equipped with USB and RS232 interface, facilitating user data processing;
- Equipped with a miniature printer, which can directly print the test results;
- Optional Knoop indenter for Knoop hardness test;
- Optional HYHV-300 image measurement system, which realizes online function through data cable, controls all actions of the hardness tester on the computer, automatically captures indentation images, automatically measures hardness values, and automatically generates hardness curve, automatically calculates the effective hardened layer depth, and can also measure the fracture toughness of cemented carbide;
- Accuracy conforms to GB/T4340.2 ISO6507-2 and American ASTM E92 。
- Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;
- Cemented carbide, glass, ceramics, agate, gemstones, etc.;
- Measurement of the depth and gradient of carburized layers, nitrided layers, and quenched hardened layers;
- Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical parameters:
Model
HVS-5Z
HVS-10Z
HVS-30Z
HVS-50Z
Test force
1.961, 2.942, 4.904, 9.807, 19.61, 24.52, 29.42, 49.04 (N)
2.942, 4.904, 9.807, 19.61, 24.52, 29.42, 49.04, 98.07 (N)
4.904, 9.807, 19.61, 24.52, 29.42, 49.04, 98.07, 196.1, 294.2 (N)
9.807, 19.61, 24.52, 29.42, 49.04, 98.07, 196.1, 294.2, 490.4 (N)
0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 （ kgf ）
0.3, 0.5, 1, 2, 2.5, 3, 5, 10 （ kgf ）
0.5, 1, 2, 2.5, 3, 5, 10, 20, 30 （ kgf ）
1, 2, 2.5, 3, 5, 10, 20, 30, 50 （ kgf ）
Hardness testing range
5-3000HV
5-3000HV
5-3000HV
5-3000HV
Test force application method
Automatic (loading / Holding / unloading)
Objective and indenter switching
Automatic switching
Data output
Built-in printer, USB and RS232 Interface
Objective
10 X ， 40 X
10 X ， 20 X
10 X ， 20 X
10 X ， 20 X
Eyepiece
10 X Digital display Micrometer eyepiece
Total magnification
100 X ， 400 X
100 X ， 200 X
100 X ， 200 X
100 X ， 200 X
Minimum detection unit
0.0625μm
0.125μm
0.125μm
0.125μm
Holding time
1~99s
1~99s
1~99s
1~99s
Light source
Halogen light source
Maximum sample height
210mm
210mm
210mm
210mm
Distance from indenter center to wall
130mm
130mm
130mm
130mm
Power supply
AC220V，50Hz
Implementation standard
GB/T 4340.2 ， ISO 6507-2 ， ASTM E92
Dimensions
560 × 310 × 660(mm)
Weight
Approximately 75kg
