- Product Description
-
- Commodity name: HVS-5ZL/10ZL/30ZL/50ZL Digital Vickers Hardness Tester

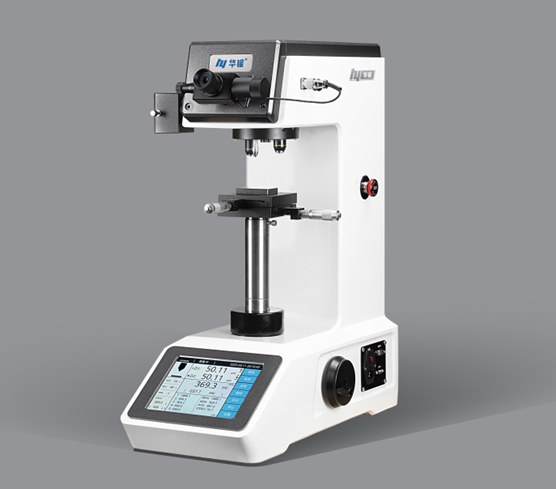

HVS-5ZL/10ZL/30ZL/50ZL Digital Vickers Hardness Tester
Main Features:
- Automatic turret; frictionless spindle, high test force accuracy ；
- Electronic loading, fully automatic closed-loop loading control system ；
- High-precision optical measurement system, precision coordinate test table;
- Using ARM high-speed processor, 8 inch LCD touch screen;
- Chinese and English interface switching; various hardness value conversions;
- Loading and unloading process Dynamic display time - Force curve ；
- The screen can display test force, indentation length, holding time, number of measurements, etc.;
- Automated test process, simple operation, no human operation error;
- Automatic correction of concave and convex surface hardness values;
- Has a database data storage function, test data is synchronously stored and can be exported;
- With USB and RS232 interface, convenient for users to process data;
- Equipped with a miniature printer, which can directly print the test results;
- Optional Nupop indenter for Knoop hardness testing;
- Optional CCD image processing system, realizes online function through data cable, controls all actions of hardness tester on computer, automatically captures indentation image, automatically measures hardness value, automatically generates hardness curve, automatically calculates the effective hardened layer depth, and can also measure the fracture toughness of cemented carbide;
- Accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E92 。
- Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;
- Cemented carbide, glass, ceramics, agate, gems, etc.;
- Measurement of depth and gradient of carburized layer, nitrided layer, and quenching hardened layer;
- Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical parameters:
Model
HVS-5ZL
HVS-10ZL
HVS-30ZL
HVS-50ZL
Test force
1.961, 2.942, 4.904, 9.807, 19.61, 24.52, 29.42, 49.04(N)
2.942, 4.904, 9.807, 19.61, 24.52, 29.42, 49.04, 98.07(N)
4.904, 9.807, 19.61, 24.52, 29.42, 49.04, 98.07, 196.1, 294.2 (N)
9.807, 19.61, 24.52, 29.42, 49.04, 98.07, 196.1, 294.2, 490.4 (N)
0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 （ kgf ）
0.3, 0.5, 1, 2, 2.5, 3, 5, 10 （ kgf ）
0.5, 1, 2, 2.5, 3, 5, 10, 20, 30 （ kgf ）
1, 2, 2.5, 3, 5, 10, 20, 30, 50 （ kgf ）
Hardness test range
5-3000HV
5-3000HV
5-3000HV
5-3000HV
Test force application method
Automatic (loading / Holding / unloading)
Objective and indenter switching
Automatic switching
Data output
Built-in printer, USB and RS232 Interface
Objective
10 X ， 40 X
10 X ， 20 X
10 X ， 20 X
10 X ， 20 X
Eyepiece
10 X Digital display Micrometer eyepiece
Total magnification
100 X ， 400 X
100 X ， 200 X
100 X ， 200 X
100 X ， 200 X
Minimum detection unit
00.0625μm
0.125μm
0.125μm
0.125μm
Holding time
1~99s
1~99s
1~99s
1~99s
Light source
Halogen light source
Maximum sample height
210mm
210mm
210mm
210mm
Distance from indenter center to machine wall
130mm
130mm
130mm
130mm
Power supply
AC220V，50Hz
Execution standard
GB/T 4340.2 ， ISO 6507-2 ， ASTM E92
Dimensions
580 × 340 × 660(mm)
Weight
Approximately 47kg
Main attachments:
- Coordinate stage: 1 pcs
- Thin shaft stage: 1 pcs
- Thin plate stage: 1 pcs
- Vise: 1 pcs
- Large V Standard block: 1 pcs
- Small V Standard block: 1 pcs
- Diamond cone indenter: 1 pcs
- Standard microscope / Vickers hardness block: 3 pcs
- Miniature printer: 1 pcs
