MSCAN Global Photogrammetry System

The MSCAN-L15 global photogrammetry system is specifically designed for high-precision geometric dimension measurement of large workpieces, production equipment, and other objects. It features an ultra-large imaging area and depth of field, achieving a volume accuracy of up to 0.015 mm/m for large projects and components ranging from 2m to 10m.

Keywords:

3D scanner

Electronics and Electrical Engineering

Product Attachments:

Retail Price

Market Price


The MSCAN-L15 global photogrammetry system is specifically designed for high-precision geometric dimension measurement of large workpieces, production equipment, and other objects. It features an ultra-large imaging area and depth of field, achieving a volume accuracy of up to 0.015 mm/m for large projects and components ranging from 2m to 10m.

Weight

Category:

Quantity
-
+

Remaining Stock

隐藏域元素占位

  • Product Description
    • Commodity name: MSCAN Global Photogrammetry System

    The MSCAN-L15 global photogrammetry system is specifically designed for high-precision geometric dimension measurement of large workpieces, production equipment, and other objects. It features an ultra-large imaging area and depth of field, achieving a volume accuracy of up to 0.015 mm/m for large projects and components ranging from 2m to 10m.

    Product Introduction



    MSCAN-L15 A global photogrammetry system specifically designed for high-precision geometric dimension measurement of large workpieces, production equipment, and other objects. It features an ultra-large imaging area and depth of field, suitable for large scale projects



    and 2 m ~ 10  m component measurement, with volumetric accuracy up to 0.015 mm/m

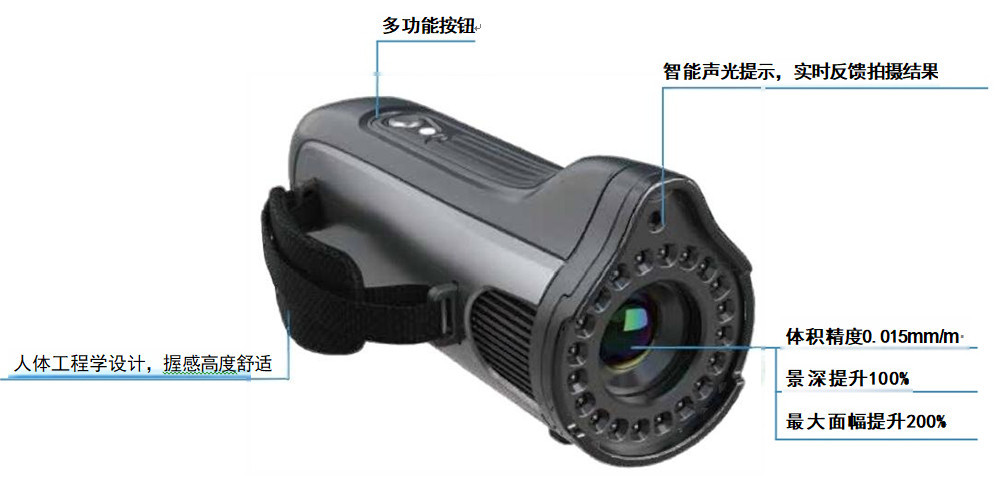

    MSCAN-L15 Supports use with other 3D scanners. Ergonomic design, lightweight and portable. Auxiliary light source can be activated in dark environments for smooth operation, ensuring accurate and efficient measurement for large objects in 3D



    measurement, product development and design, and quality control.







    Product Features



    Metrology-grade volumetric accuracy


    More precise measurement of large objects, volumetric accuracy improved by 40%, up to 0.015 mm/m.



    More comprehensive functions


    Supports HDR mode, blue LED light for higher detection accuracy.


    Supports deformation detection


    MSCAN acquires high-precision 3D data of the workpiece before and after deformation, and the software quickly generates intuitive deviation values.



    Multiple adapters to meet diverse needs


    For features that cannot be directly measured using coded points or markers (such as cylindrical axis distance, hole center, etc.), adapters can be used for measurement. Users can customize adapters based on their own part characteristics.





    Technical Parameters



          MSCAN Global Photogrammetry System Technical Specifications

    Model



    MSCAN-L15

    Volumetric Accuracy



    0.015mm/m









    Volumetric Accuracy ( When used with the product on the right )

    KSCAN-Magic  KSCAN-Magicll

    0.010 mm+0.015 mm/m

    PRINCE  335 PRINCE  775

    R Standard Scan Mode: 0.020 mm+0.0 15 mm/m B Ultra-fine Scan Mode: 0.010 mm+0.015 mm/m

    HSCAN331

    HSCAN  771

    0.020 mm+0.015 mm/m

    AXE-G7 AXE-B11

    TrackScan-P42

    0.020 mm+0.015 mm/m   0.044 mm+0.015 mm/m

    Equipment Type

    Industrial Camera and Lens ( Non-SLR Camera )

    Weight

    ≤0.58kg

    Shooting Method

    Real-time Calculation, Real-time Display

    Interface Type

    Gigabit Ethernet

    Working Depth of Field

    6.5m

    Maximum Area

    9.4×6.9 m

    Patent Certificates

    CN306051753S
