- Product Description
-
- Commodity name: AutoScan-T42 Automated 3D Scanning and Detection System
AutoScan-T42 automated 3D scanning and detection system, an intelligent and automatic detection upgrade, specially designed for factory automation quality control, helping enterprises achieve the best match between cost and efficiency.
Product Introduction
AutoScan-T42 automated 3D scanning and detection system, a new and upgraded intelligent automatic detection system, specially designed for automated quality control in factory workshops, helping enterprises achieve the optimal match between cost and efficiency. The
entire automated scanning process requires no marking points, is non-contact and non-destructive, and seamlessly integrates with the production line, significantly reducing the burden of quality inspection work. Military-grade manufacturing quality, with strong anti-interference ability, adapts to complex and harsh workshop
environments, and can be widely used in national defense, military industry, energy, 5G, mold manufacturing and other fields. One-button start, offline programming, and high software compatibility enable users of all professional levels to operate easily.
Product Features
Seamless Production Line Integration
Born for batch quality inspection scenarios, based on automated optical tracking and measurement technology, no marking points or contact is needed to complete the inspection, seamlessly integrating with the production line progress and significantly improving process iteration efficiency.
Precise and Efficient

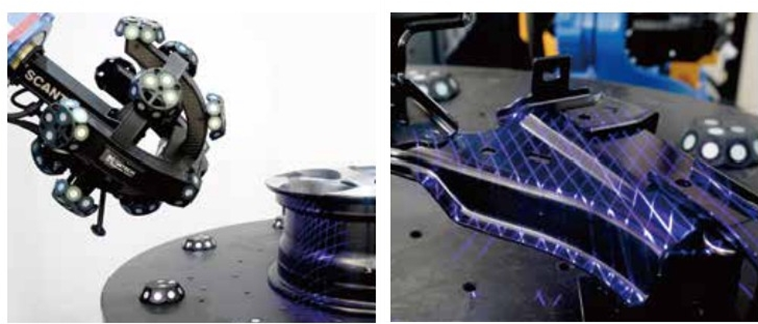

Using pure blue light and synchronous tracking optical technology, the scanning rate is as high as 1,900,000 measurements/second. The accuracy is not affected by factors such as robots and guide rails, realizing efficient and flexible automated manufacturing processes.
Supports Multiple Configurations
Can be equipped with handheld 3D scanners, portable CMM measuring pens, MSCAN photogrammetry systems, rotary platforms, guide rails, and multiple optical tracking and measurement methods to provide users with personalized application solutions.
High Usability
One-button start, manual and automatic offline simulation programming, safe and reliable, automatically completes batch detection and generates inspection reports. This greatly reduces the difficulty of user operation, easily completing automated path and scanning
measurement tasks.
Technical Parameters
Auto Scan Automated 3D Detection System Technology Specifications
Model Number AutoScan-T42 AutoScan-T30 AutoScan-T22 Scanning Mode
High-Speed Scanning
34 intersecting blue laser lines
22 intersecting blue laser lines
14 intersecting red laser lines
( Additional 1 red laser lines )
Fine Scanning
7 parallel blue laser lines
Deep Hole Scanning
Additional 1 blue laser line
Total Number of Laser Lines
42
30
22
Accuracy
0.025 mm
0.030 mm
Maximum Scanning Speed
1,900,000 measurements/second
1,200,000 measurements/second
480,000 measurements/second
Scanning Area
310 mm × 350 mm
275 mm × 250 mm
Laser Class
CLASS I Ⅱ (Eye Safe)
Minimum Resolution
0.020 mm
Volumetric Accuracy Scanner Used Alone )
9.1 m³
0.064 mm
16.6 m³
0.078 mm
Volumetric Accuracy
( In Combination with MSCAN-L15 Global Photogrammetry System )
0.044 mm + 0.015 mm/m
Scanning Object Size Range
( Recommended )
200～6000 mm
Baseline Distance
300 mm
Depth of Field
320 mm
Output Format
.stl, .ply, .obj, .igs, .wrl, .xyz, .dae, .fbx, .ma, .asc, etc., customizable
Operating Temperature
5～40℃
Interface Type
USB 3.0
Patent Certificates
CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN2048 54633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN2049 02784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN2091 97685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN2111 21096U, US10309770B2, KR102096806B1

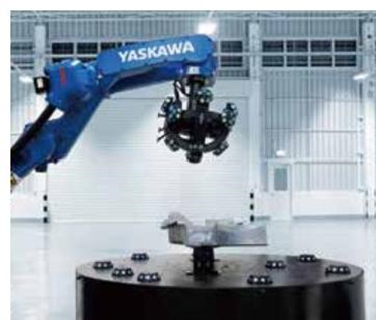

● Application scenarios
