KSCAN composite 3D scanner
The KSCAN series of composite 3D scanners features three modes: global photogrammetry, fast red laser scanning, and fine blue laser scanning. It boasts superior detail capture capabilities compared to other laser 3D scanners. The built-in photogrammetry system significantly expands the maximum scan size and precision. The product incorporates SiKan's globally pioneering dual red and blue laser technology and global 3D measurement technology, providing a full-size solution from 0.02m to 10m for industrial applications.
Keywords:
3D scanner
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: KSCAN composite 3D scanner
The KSCAN series of composite 3D scanners features three modes: global photogrammetry, fast red laser scanning, and fine blue laser scanning. It boasts superior detail capture capabilities compared to other laser 3D scanners. The built-in photogrammetry system significantly expands the maximum scan size and precision. The product incorporates SiKan's globally pioneering dual red and blue laser technology and global 3D measurement technology, providing a full-size solution from 0.02m to 10m for industrial applications.
Product Introduction

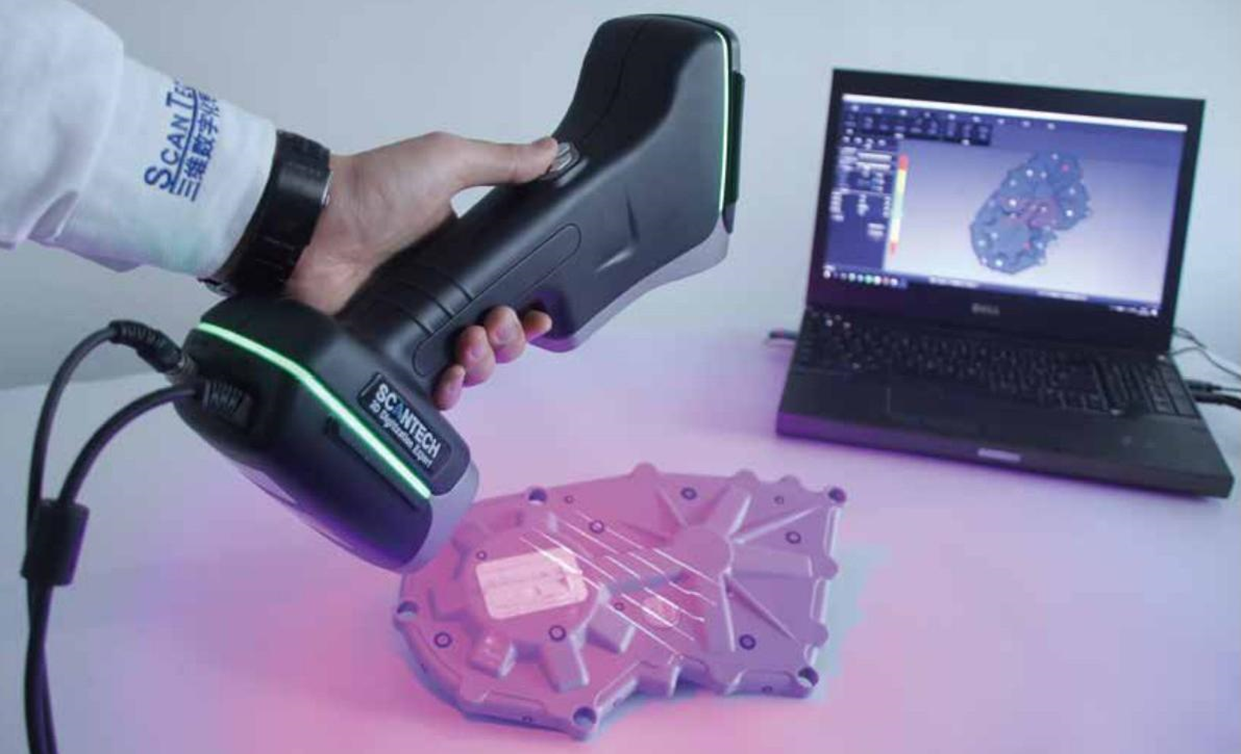

The KSCAN series of composite 3D scanners simultaneously features three modes: global photogrammetry, fast red laser scanning, and fine blue laser scanning. It boasts far superior detail capture capabilities compared to other laser 3D scanners.
The built-in photogrammetry system module significantly expands the maximum scan size and scanning accuracy supported by the instrument. The product integrates Sikan Technology's globally pioneering dual-color red and blue lasers
and global 3D measurement technologies, providing a full-size solution for industrial applications ranging from 0.02m to 10m.
KSCAN supports contact measurement, enabling the acquisition of high-precision 3D data for key points such as hole positions, planes, and boundaries. The accompanying ScanViewer software includes rich measurement and analysis functions such as pipe fitting measurement, deformation detection, and 3D inspection,
providing efficient, reliable, and comprehensive 3D measurement technology support for product design and inspection professionals.
Product Features
Ultra-High Precision
Highest Accuracy 0.020 mm, Built-in photogrammetry, volumetric accuracy up to 0.035 mm/m, A single unit can achieve high-precision 3D measurement from 0.020 m
to 10 m for full-size applications.
High-Speed Measurement
Depth optimization of each scanning stage, maximum scanning area 550 mm × 600 mm, significantly reduced number of marker points, scanning rate 650,000
measurements/second, effective working distance 150～800mm, simple scanning operation,
significantly improving work efficiency.
Ultimate Detail
Dual-color red and blue lasers combine flexibility and efficiency with detail; the blue light mode offers ultra-high resolution of 0.010 mm, showcasing ultimate
detail.
Supports Contact Measurement
Portable three-coordinate measuring probe for quickly obtaining high-precision 3D data for key areas such as datum holes, hidden points, and features.
Supports Intelligent Boundary Detection
The boundary detection module automatically extracts boundary information by capturing high-resolution images from different angles.
Technical Parameters
KSCAN Composite 3D Scanner Model
KSCAN20
Scanning Mode
R Standard Scanning Mode
B Ultra-Fine Scanning Mode
Light Source Type
14 Intersecting red laser lines ( plus 1 red laser lines )
5 parallel blue laser lines
Deep Hole Scanning
Supported
Total Number of Laser Lines
20
Accuracy
0.020mm
Maximum Scan Rate
650,000 measurements/second
Maximum Scan Area
550mm × 600mm
Photogrammetry
Optional
Standard (built-in)
Area
2500mm × 3000mm
Depth of Field
2500mm
Laser Class
Class II (Eye Safe)
Resolution
0.050 mm
0.010 mm
Volumetric Accuracy
Standard
0.035mm/m
Equipped with 1m high-precision Standard Rod
0.020 mm + 0.020 mm/m
Equipped with MSCAN -L15 Global Photogrammetry System System
0.020mm + 0.015mm/m
Datum Distance
500mm
180mm
Depth of Field
620mm
200mm
K-Probe
Optional
Optional
Single Point Repeatability
0.030 mm
Tracking Frequency
60hz
Intelligent Boundary Detection Module
Optional
Optional
Boundary Accuracy
0.030 mm
Pipe Fitting Measurement Module
Optional
Optional
Output Format
Output YBC/LRA and Compensation Values
Output Format
.stl, .ply, .obj, .igs, .wrl, .xyz, .dae, .fbx, .ma, .asc, etc., Customizable
Operating Temperature
-10～40℃
Interface USB 3.0 Patent Certificates
CN204329903U,CN104501740B,CN104165600B,CN204988183U,CN20485 4633U, CN204944431U,CN204902788U,CN105068384B,CN105049664B,CN20490 2784U, CN204963812U,CN204902785U,CN204902790U,CN106403845B,CN209197685U,
CN209263911U,CN106500627B,CN106500628B,CN206132003U,CN206905709U,
CN107202554B,CN209310754U,CN209485295U,CN209485271U,CN305446920S,
CN209991946U,US10309770B2,KR102096806Bí
