ixiang® 5/5S Automatic Metallographic Sample Mounting Machine
The ixiang® 5/5S automatic metallographic sample mounting machine allows samples with unsuitable shapes or sizes to be mounted to meet the requirements of subsequent sample preparation steps, obtaining the required test plane, and also protecting the edges or preventing surface defects caused by the preparation process. In modern metallographic laboratories, widely used semi-automatic or automatic grinding/polishing machines have specifications for sample size. To meet these requirements, samples must be mounted, so automatic mounting machines have become one of the essential pieces of equipment in metallographic laboratories.
Keywords:
Metallographic testing and consumables
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: ixiang® 5/5S Automatic Metallographic Sample Mounting Machine
The ixiang® 5/5S automatic metallographic sample mounting machine allows samples with unsuitable shapes or sizes to be mounted to meet the requirements of subsequent sample preparation steps, obtaining the required test plane, and also protecting the edges or preventing surface defects caused by the preparation process. In modern metallographic laboratories, widely used semi-automatic or automatic grinding/polishing machines have specifications for sample size. To meet these requirements, samples must be mounted, so automatic mounting machines have become one of the essential pieces of equipment in metallographic laboratories.
Product Introduction

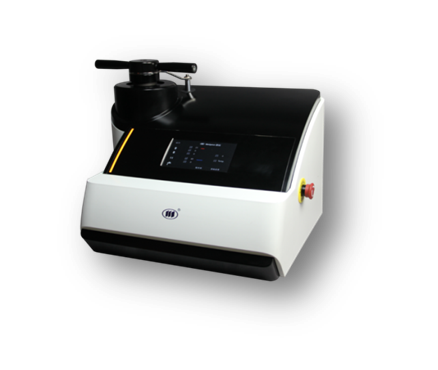

ixiang® 5/5S Automatic Metallographic Sample Mounting Machine

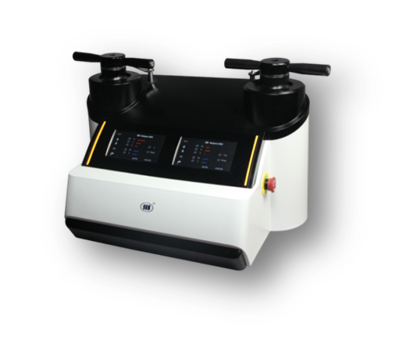

ixiang® 5 ixiang® 5S S
Product Overview
ixiang® 5/5S The automatic metallographic sample mounting machine allows samples with shapes or sizes unsuitable for subsequent sample preparation steps to be mounted to obtain the required inspection plane. It also protects edges or prevents surface defects caused by the preparation process.
In modern metallographic laboratories, widely used semi-automatic or automatic grinding/polishing machines have size requirements for samples. To meet these requirements, samples must be mounted; therefore, automatic mounting machines have become essential equipment in metallographic laboratories.
One of the essential pieces of equipment in a metallographic laboratory.
Detailed Parameters
Model Number ixiang® 5 Automatic Metallographic Sample Mounting Machine ixiang® 5S Automatic Metallographic Sample Mounting Machine Hot Pressing Operation
Automatic Electric Hydraulic
Mounting Mold
Dimensions
Imperial: 1 inch, 1.25 inches, 1.5 inches, 2 inches
Metric: 25, 30, 40, 50mm
Pressure
1-20MPa (200kgf-4000kgf) Optional, 1MPa can be added or subtracted each time
Heating Temperature
90 ℃-200℃ Optional
Heating Power
2400w
Imperial: 1 inch, 1.25 inches
Metric: 25, 30mm4200w
Imperial: 1 inch, 1.25 inches
Metric: 25, 30mm3000w
Imperial: 1.5 inches, 2 inches
Metric: 40, 50mm5400w
Imperial: 1.5 inches, 2 inches
Metric: 40, 50mmCooling Method
Temperature Cooling: 40℃-90℃ optional, 1℃ can be added or subtracted each time
Time Cooling: 0-20 minutes optional, 1 minute can be added or subtracted each time
Working Environment
Temperature 5℃ to 40℃, humidity 30-90% non-condensing
Voltage/Frequency
220V, 50HZ, Single-phase (110V customizable)
Inlet
3/4 Standard Inlet
Outlet
Φ10 rubber tube

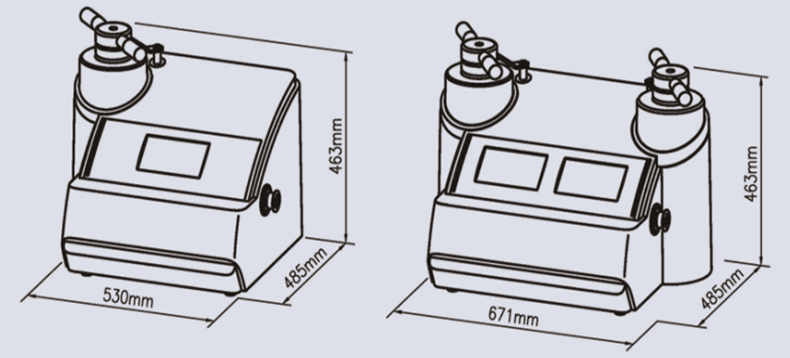

Dimensions
420 ×556×463mm
420 ×671×463mm
Dimensions
