Mopao3S metallographic sample grinder and polisher
The Mopao® 3S Automatic Metallographic Sample Grinder and Polisher is a new generation of high-precision, automated sample preparation equipment manufactured according to international standards and using advanced international technology. This machine features a water cooling system and abrasive flushing nozzles to cool the sample during grinding, preventing damage to the microstructure from overheating and continuously flushing away abrasives. Further equipped with an ABS shell and stainless steel standard parts, it boasts a more aesthetically pleasing appearance and improved corrosion and rust resistance, as well as easy cleaning. Suitable for automatic sample preparation of metallographic samples from coarse grinding, fine grinding, coarse polishing to fine polishing, it is the ideal sample preparation equipment for enterprises, research institutions, and university laboratories.
Keywords:
Metallographic testing and consumables
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: Mopao3S metallographic sample grinder and polisher
The Mopao® 3S Automatic Metallographic Sample Grinder and Polisher is a new generation of high-precision, automated sample preparation equipment manufactured according to international standards and using advanced international technology. This machine features a water cooling system and abrasive flushing nozzles to cool the sample during grinding, preventing damage to the microstructure from overheating and continuously flushing away abrasives. Further equipped with an ABS shell and stainless steel standard parts, it boasts a more aesthetically pleasing appearance and improved corrosion and rust resistance, as well as easy cleaning. Suitable for automatic sample preparation of metallographic samples from coarse grinding, fine grinding, coarse polishing to fine polishing, it is the ideal sample preparation equipment for enterprises, research institutions, and university laboratories.

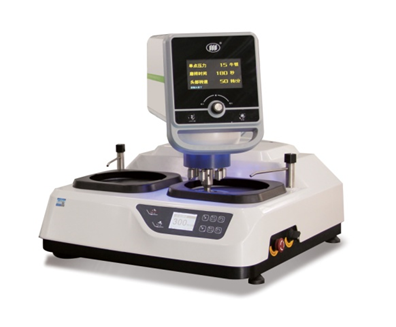

Mopao® 3 S Automatic Metallographic Sample Grinding and Polishing Machine
Product Overview
Mopao ® 3S The automatic metallographic sample grinding and polishing machine is a new generation of high-precision, automated sample preparation equipment manufactured according to international standards and using internationally advanced technology. This machine is equipped with a water cooling device and abrasive flushing nozzles, which can cool the sample during grinding to prevent damage to the microstructure due to overheating and flush away the abrasive at any time;
Furthermore, it is equipped with an ABS shell and stainless steel standard parts, making it more aesthetically pleasing
and improving its corrosion and rust resistance and ease of cleaning. It is suitable for automated sample preparation of metallographic samples from rough grinding, fine grinding, rough polishing to fine polishing, and is ideal sample preparation equipment for enterprises, research units, and colleges and universities.
laboratories.
Detailed Parameters
Specifications
Mopao®3 S Automatic Metallographic Sample Grinding and Polishing Machine
Machine Power Supply
Single Phase AC220V 50Hz
Input Power
1.1KW
Grinding and Polishing Disc Diameter
Φ 250mm (Standard), φ can be customized 203mm ，φ 300mm
Grinding and Polishing Disc Speed
50 ~ 1000r/min
150r/min 300r/min (Two-speed fixed speed)
Grinding and Polishing Disc Direction
Clockwise or counterclockwise adjustable
Grinding and Polishing Head Speed
50 ~ 150r/min (Stepless speed regulation)
Single-point force loading
5 ~ 60N
Number of Samples
6 (Standard)
Sample Size
Φ 30mm (Standard), φ can be customized 22mm ，φ 25mm ，φ 40mm ，φ 45mm ，φ 50mm
Sample Preparation Time
0 ~ 995 seconds ( s )
Compressed Air Pressure
0.6 ~ 0.9Mpa
External Dimensions
758 × 785 × 687mm
Net Weight
128kg
Gross Weight
152kg

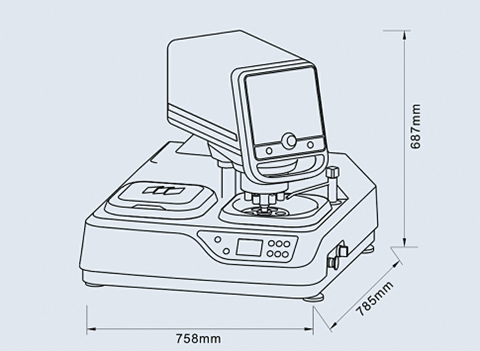

External Dimensions
Related Product Recommendations

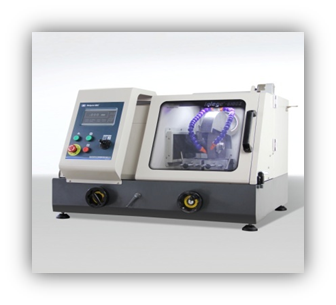

iqiege® 6100Z Metallographic Cutting Machine

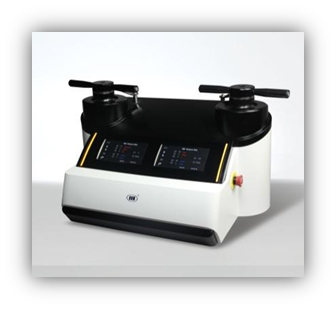

ixiang® 5/5S Automatic Embedding Machine
