ZXQ-2 Automatic Metallographic Sample Mounting Machine
The ZXQ-2 automatic mounting machine is suitable for mounting small, difficult-to-handle, or irregularly shaped metallographic and petrographic samples for subsequent cutting, grinding, polishing, metallographic and spectral testing, or hardness testing. During sample preparation, the machine uses a CPU program to automatically control a series of actions including heating, pressurization, and automatic cooling to final automatic pressure relief and shutdown, achieving user-friendly, simple, and highly efficient operation.
Keywords:
Metallographic testing and consumables
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: ZXQ-2 Automatic Metallographic Sample Mounting Machine
The ZXQ-2 automatic mounting machine is suitable for mounting small, difficult-to-handle, or irregularly shaped metallographic and petrographic samples for subsequent cutting, grinding, polishing, metallographic and spectral testing, or hardness testing. During sample preparation, the machine uses a CPU program to automatically control a series of actions including heating, pressurization, and automatic cooling to final automatic pressure relief and shutdown, achieving user-friendly, simple, and highly efficient operation.
I. Overview:
The ZXQ-2 automatic metallographic sample mounting machine is suitable for mounting small, irregular, or difficult-to-handle metallographic and petrographic samples, facilitating cutting, grinding, polishing, and subsequent metallographic, spectral, or hardness testing.
During sample preparation, the machine uses a single-chip microcomputer for program control, automatically performing a series of actions including heating, pressurization, and automatic cooling to final automatic pressure relief and shutdown. This allows for unattended operation, highlighting the machine's user-friendly design, ease of operation, and high efficiency.
Its superior features include user-friendliness, ease of operation, and high efficiency.
II. Working Principle:
◆ The motor drives the gears and other components, causing the lower mold to move upward;
◆ The embedding material being squeezed and filled exerts a force on the spring;
◆ When the spring is compressed to the limit switch position, the pressure holding timer starts. As the embedding material melts, the spring continues to compress until the pressure holding time ends.
III. Embedding Powder Selection Range:
The embedding powder selection for this machine is limited to thermosetting materials (such as general-purpose, edge-retaining, and conductive embedding powders). The pressing temperature for different thermosetting materials can be adjusted and customized according to the material.

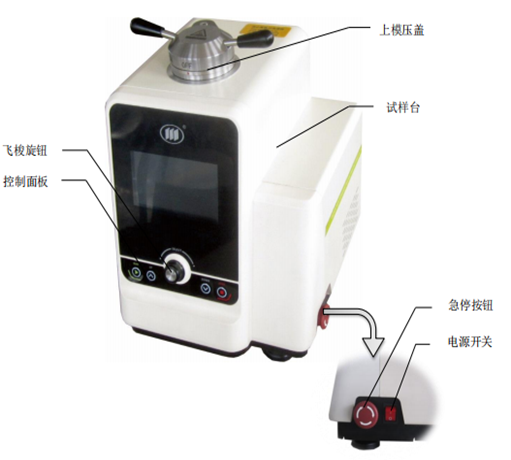

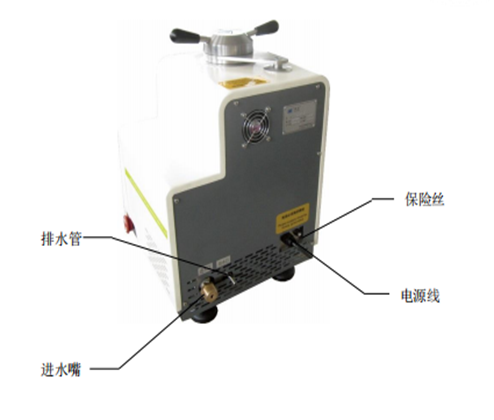

IV. Product Diagram:
V. Detailed Parameters:
ZXQ-2 Automatic Metallographic
Sample Mounting Machine
Sample Pressing Diameter
φ30
Heating Temperature Range
100-200 ℃
Pre-pressurization Delay Range
0-999s
Holding Time Range
0-999s
Cooling Temperature Range
20-90 ℃
Heating Power
600 W
Input Power
Single Phase AC220V 50Hz
External Dimensions
350 mm × 450 mm × 470 mm
Net Weight
45Kg
