- Product Description
-
- Commodity name: HVS-1000ZH Digital Display Micro-Vickers Hardness Tester (High-Type)
The HVS-1000ZH digital display micro-Vickers hardness tester features a unique and precise design in its mechanics, optics, and light source, resulting in clearer indentation imaging and more accurate measurements.

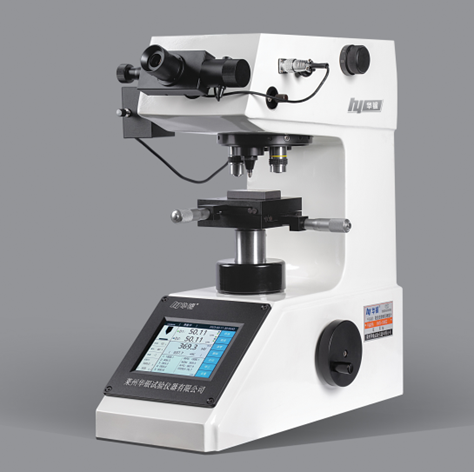

HVS-1000ZH Digital Display Micro-Vickers Hardness Tester (High-Type)
Main Features:
- Automatic turret; frictionless spindle, high test force accuracy;
- High-precision optical measurement system, precision coordinate stage;
- Maximum allowable specimen height 115mm;
- Using ARM high-speed processor, 5.6 inch LCD touch screen;
- Chinese and English interface switching; Various hardness value conversions;
- Dynamic display of indenter during loading and unloading, real-time observation of test status;
- The screen can display test force, indentation length, holding time, number of measurements, etc.;
- Automated test process, simple operation, no human operation error;
- Automatic correction of hardness values on concave and convex surfaces;
- Has a database data storage function, test data is synchronously stored and can be exported;
- Equipped with USB and RS232 interface, facilitating data processing for users;
- Equipped with a miniature printer, test results can be printed directly;
- Optional Knoop indenter for Knoop hardness testing;
- Optional HYHV300 image measurement system, realizing online function through data cable, controlling all actions of the hardness tester on the computer, automatically capturing indentation images, automatically measuring hardness values, automatically generating hardness curve, automatically calculating the effective hardened layer depth;
- Accuracy conforms to GB/T4340.2 ISO 6507-2 and US ASTM E384 。
- Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;
- Glass, ceramics, agate, gemstones, etc.;
- Measurement of depth and gradient of carburized layer, nitrided layer, and quenched hardened layer;
- Micro-Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical Parameters:
- Measurement Range: 1-3065HV
- Test Force: 0.09807、0.2452、0.4904、0.9807、1.961、2.942、4.904、9.807 （ N ） 10、 25、 50、 100、 200、 300、 500、 1000 （ gf ）
- Hardness Scale: HV0.01、HV0.025、HV0.05、HV0.1、HV0.2、HV0.3、HV0.5、HV1
- Measurement System Magnification: 400 X 、100 X
- Minimum Detection Unit: 0.0625μm
- Maximum Allowable Specimen Height: 115mm
- Distance from indenter center to machine wall: 110mm
- Power Supply: AC220V，50/60HZ
- Dimensions: 470 x 320 x 550 （ mm ）
- Weight: Approximately 50kg
Main Accessories:
- Coordinate Stage: 1 pcs
- Fine Axis Stage: 1 pcs
- Thin Plate Stage: 1 pcs
- Flat-jaw Vise: 1 pcs
- Large V Block: 1 pcs
- Small V Block: 1 pcs
- Diamond Indenter: 1 pcs
- Standard Microhardness Block: 2 pcs
- Miniature Printer: 1 pcs
