HV-1000Z Micro-Vickers Hardness Tester
The HV-1000 / HV-1000Z digital display micro-Vickers hardness tester features a unique and precise design in its mechanics, optics, and light source, resulting in clearer indentation imaging and more accurate measurements. Equipped with a digital micrometer eyepiece, there is no need to consult tables or input indentation diagonals; the screen displays the test method, test force, indentation length, dwell time, number of measurements, and conversion scale. During operation, simply measure the indentation and press the eyepiece button to automatically calculate and display the hardness value on the screen. A Knoop indenter can be optionally used for Knoop hardness measurements, and an LCD screen measuring device and a CCD image automatic measurement system are also available.
Keywords:
Hardness tester and consumables
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: HV-1000Z Micro-Vickers Hardness Tester
The HV-1000 / HV-1000Z digital display micro-Vickers hardness tester features a unique and precise design in its mechanics, optics, and light source, resulting in clearer indentation imaging and more accurate measurements. Equipped with a digital micrometer eyepiece, there is no need to consult tables or input indentation diagonals; the screen displays the test method, test force, indentation length, dwell time, number of measurements, and conversion scale. During operation, simply measure the indentation and press the eyepiece button to automatically calculate and display the hardness value on the screen. A Knoop indenter can be optionally used for Knoop hardness measurements, and an LCD screen measuring device and a CCD image automatic measurement system are also available.

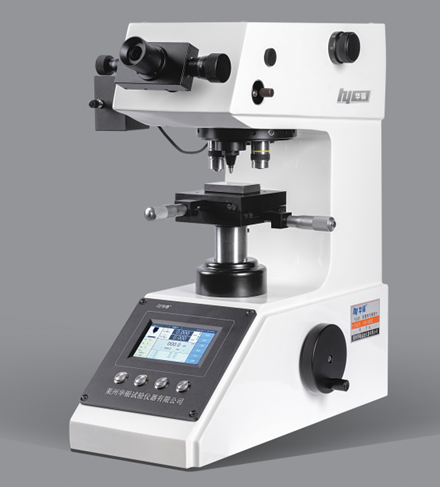

HV-1000Z Micro-Vickers Hardness Tester
Main Features:
- Automatic turret; frictionless spindle, high test force accuracy;
- High-precision optical measurement system, precision coordinate stage;
- 4.3 Inch LCD touch screen display, with 4 shortcut keys for easier operation;
- Chinese and English interface switching; Various hardness value conversions;
- Dynamic display of indenter during loading and unloading, real-time observation of test status;
- The screen can display test force, indentation length, holding time, number of measurements, etc.;
- Automated test process, simple operation, no human operation error;
- Automatic correction of hardness values on concave and convex surfaces;
- Has a database data storage function, test data is synchronously stored and can be exported;
- With USB and RS232 interface, facilitating data processing for users;
- Optional Knoop indenter for Knoop hardness testing;
- Optional HYHV300 image measurement system ，through data cable connection to the computer, online function can be realized. All actions of the hardness tester can be controlled on the computer, and indentation hardness can be automatically captured and measured;
- Accuracy conforms to GB/T4340.2 ISO6507-2 and US ASTM E384 。
- Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;
- Glass, ceramics, agate, gemstones, etc.;
- Measurement of depth and gradient of carburized layer, nitrided layer and quenched hardened layer;
- Micro-Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical Parameters:
- Measurement Range: 1-3065HV
- Test Force: 0.09807、0.2452、0.4904、0.9807、1.961、2.942、4.904、9.807 （ N ） 10、 25、 50、 100、 200、 300、 500、 1000 （ gf ）
- Hardness Scale: HV0.01、HV0.025、HV0.05、HV0.1、HV0.2、HV0.3、HV0.5、HV1
- Measurement System Magnification: 400 X 、100 X
- Minimum Detection Unit ： 0.25μm
- Maximum Allowable Specimen Height: 75mm
- Distance from indenter center to machine wall: 110mm
- Power Supply : AC 220V ，50/60Hz
- Dimensions : 470 x 320 x 500(mm)
- Weight : Approximately 40Kg
Main Accessories:
- Coordinate Stage: 1 pcs
- Fine Axis Stage: 1 pcs
- Thin Plate Stage: 1 pcs
- Vise: 1 pcs
- Large V Block: 1 pcs
- Small V Block: 1 pcs
- Diamond Indenter: 1 pcs
Main Features:
- Automatic turret; frictionless spindle, high test force accuracy;
- High-precision optical measurement system, precision coordinate stage;
- 4.3 Inch LCD touch screen display, with 4 shortcut keys for easier operation;
- Chinese and English interface switching; Various hardness value conversions;
- Dynamic display of indenter during loading and unloading, real-time observation of test status;
- The screen can display test force, indentation length, holding time, number of measurements, etc.;
- Automated test process, simple operation, no human operation error;
- Automatic correction of hardness values on concave and convex surfaces;
- Has a database data storage function, test data is synchronously stored and can be exported;
- With USB and RS232 interface, facilitating data processing for users;
- Optional Knoop indenter for Knoop hardness testing;
- Optional HYHV300 image measurement system ，through data cable connection to the computer, online function can be realized. All actions of the hardness tester can be controlled on the computer, and indentation hardness can be automatically captured and measured;
- Accuracy conforms to GB/T4340.2 ISO6507-2 and US ASTM E384 。
- Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;
- Glass, ceramics, agate, gemstones, etc.;
- Measurement of depth and gradient of carburized layer, nitrided layer and quenched hardened layer;
- Micro-Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical Parameters:
- Measurement Range: 1-3065HV
- Test Force: 0.09807、0.2452、0.4904、0.9807、1.961、2.942、4.904、9.807 （ N ）
10、 25、 50、 100、 200、 300、 500、 1000 （ gf ）
- Hardness Scale: HV0.01、HV0.025、HV0.05、HV0.1、HV0.2、HV0.3、HV0.5、HV1
- Measurement System Magnification: 400 X 、100 X
- Minimum Detection Unit ： 0.25μm
- Maximum Allowable Specimen Height: 75mm
- Distance from indenter center to machine wall: 110mm
- Power Supply : AC 220V ，50/60Hz
- Dimensions : 470 x 320 x 500(mm)
- Weight : Approximately 40Kg
Main Accessories:
- Coordinate Stage: 1 pcs
- Fine Axis Stage: 1 pcs
- Thin Plate Stage: 1 pcs
- Vise: 1 pcs
- Large V Block: 1 pcs
- Small V Block: 1 pcs
- Diamond Indenter: 1 pcs
- Standard Microhardness Block: 2 pcs
