- Product Description
-
- Commodity name: HVS-1000Z Digital Vickers Hardness Tester

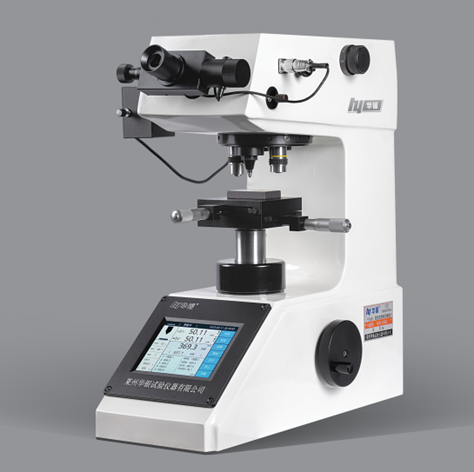

HVS-1000Z Digital Display Micro Vickers Hardness Tester
Main Features:
- Automatic turret; frictionless spindle, high test force accuracy;
- High-precision optical measurement system, precision coordinate stage;
- Using ARM high-speed processor, 5.6 inch LCD touch screen;
- Chinese and English interface switching; Various hardness value conversions;
- Dynamic display of indenter during loading and unloading, real-time observation of test status;
- The screen can display test force, indentation length, holding time, number of measurements, etc.;
- Automated testing process, simple operation, no human operation error;
- Automatic correction of concave and convex surface hardness values;
- It has a database function to store data, test data is synchronously stored and can be exported;
- Equipped with USB and RS232 interface, facilitating data processing for users;
- Equipped with a miniature printer, test results can be printed directly;
- Optional Rockwell indenter for Rockwell hardness testing;
- Optional HYHV300 image measurement system, online function is realized through data cable, controlling all actions of the hardness tester on the computer, automatically capturing indentation images, automatically measuring hardness values, and automatically generating hardness curves, automatically calculating the effective hardened layer depth;
- Accuracy conforms to GB/T4340.2 ISO 6507-2 and US ASTM E384 。
- Ferrous metals, non-ferrous metals, IC wafers, surface coatings, laminated metals;
- Glass, ceramics, agate, gemstones, etc.;
- Measurement of the depth and gradient of carburized layers, nitrided layers, and quenched hardened layers;
- Micro-Vickers hardness measurement of small parts such as thin plates and wafers.
Technical Parameters:
- Measurement Range: 1-3065HV
- Test Force: 0.09807、0.2452、0.4904、0.9807、1.961、2.942、4.904、9.807 （ N ） 10、 25、 50、 100、 200、 300、 500、 1000 （ gf ）
- Hardness Scale: HV0.01、HV0.025、HV0.05、HV0.1、HV0.2、HV0.3、HV0.5、HV1
- Measurement System Magnification: 400 X 、100 X
- Minimum Detection Unit: 0.0625μm
- Maximum allowable height of specimen: 75mm
- Distance from indenter center to machine wall: 110mm
- Power Supply: AC220V，50/60HZ
- Dimensions: 470 x 320 x 500 （ mm ）
- Weight: Approximately 40kg
Main Accessories:
- Coordinate Stage: 1 pcs
- Thin Shaft Stage: 1 pcs
- Thin Plate Stage: 1 pcs
- Vice: 1 pcs
- Large V Type Block: 1 pcs
- Small V Type Block: 1 pcs
- Diamond Indenter: 1 pcs
- Standard Microhardness Block: 2 pcs
- Miniature Printer: 1 pcs
