ATLAS xenon lamp weathering tester
The Ci3000 Weather-Ometer and Fade-Ometer, employing advanced digital control systems, represent a significant achievement in applying digital and optical technologies to user-friendly laboratory climate aging testing instruments. The 3000 series has earned recognition from numerous manufacturers in the textile, paint & coatings, and plastics industries, providing a dedicated platform for accurate, reproducible, and repeatable test results predicting product service life. The 3000 series holds CE, UL, CSA, ISO, and EN standard certifications.
Keywords:
Physical property testing
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: ATLAS xenon lamp weathering tester
The Ci3000 Weather-Ometer and Fade-Ometer, employing advanced digital control systems, represent a significant achievement in applying digital and optical technologies to user-friendly laboratory climate aging testing instruments. The 3000 series has earned recognition from numerous manufacturers in the textile, paint & coatings, and plastics industries, providing a dedicated platform for accurate, reproducible, and repeatable test results predicting product service life. The 3000 series holds CE, UL, CSA, ISO, and EN standard certifications.
● Product Details
The ATLAS Ci3000+ Xenon Arc Weathering Tester/Lightfastness Tester uses a water-cooled xenon lamp and a new digital control system, setting a new benchmark in the application of digital and optical technologies to weathering testing instruments. The Ci3000 series has been recognized by numerous manufacturers in the plastics, paint coatings, inks, packaging, automotive materials, photochemical materials, pigments and dyes, and textile industries, and is considered a highly accurate device for predicting product lifespan with excellent repeatability and reproducibility. The Ci3000 series has obtained certifications from international standards organizations such as CE, UL, CAS, ISO, and EN.
This tester's main features include: a rotating sample rack for uniform testing of all samples; customer-defined nozzles for uniform sample rack spraying; and the use of ASTM black panel temperature meters and ISO/DIN black standard temperature meters to control sample temperature and ensure test repeatability.
The Ci3000 series has obtained certifications from international standards organizations such as CE, UL, CAS, ISO, and EN.
This tester's main features include: a rotating sample rack for uniform testing of all samples; customer-defined nozzles for uniform sample rack spraying; and the use of ASTM black panel temperature meters and ISO/DIN black standard temperature meters to control sample temperature and ensure test repeatability.
● Standards Compliance:
AATCCTM16, AATCCTM16E, AATCC TM169, ASTMC1442, ASTM C1501, ASTM D904, ASTM D3424, ASTM D3451, ASTM D4101,ASTMD4303, ASTM D4355, ASTM D4459, ASTM D4798,
ASTMD5010,ASTM D5071, ASTM D5794, ASTM D6083, ASTM D6551,ASTM D6577, ASTM D6662, ASTM D6695, ASTM G151, ASTM G155, GME 60292, ISO 105-B02, ISO 105-B04, ISO105-
B06, ISO 11341, ISO3917, ISO4892-1, ISO 4892-2, ISO12040, JASO M346, M&S C9 C9A, PSA D27 1389 1431, GB/T 8427/14576, etc.
● Product Features:
• Supports a high-power 4500W precision water-cooled xenon lamp• Total exposure area: 2,188cm2 (339in2)
• Large-screen full-color TFT display with automatic diagnostic information
• Direct control of the chamber temperature and black panel or/and black standard temperature
• Direct setting and control of relative humidity
• Direct setting and control of the air temperature inside the test chamber
• Diagnostic information display with 14 major international standards built-in
• Supports 12 customer-defined programs and multilingual display (Chinese, English, French, German, Spanish, Japanese, Korean)
• USB data output interface
• Built-in globally patented Smart Damper automatic air delivery speed adjustment and intelligent air conditioning system
• Built-in globally patented Smart Light intelligent lighting monitoring system
• Filter combinations to meet all test standards
• Intake dust filter
• CS-7 Xenon lamp cooling system
• Test chamber observation window
• Globally universal power system, suitable for various frequencies, voltages, and electrical requirements
• Electrical safety performance meets CE, UL, CSA, EN, ISO standards
• Automatic countdown function in units of irradiance and time
• VibraSonicTM humidification system
• Sample rack can accommodate various types of samples
• Referenced xenon lamp calibration
• Automatic water quality monitoring
● Technical Parameters:
Name Parameter Light Source 4500W water-cooled xenon lamp Service Life (1 sun standard) 1200 hours Filter Replaceable inner and outer filters Irradiance Control 340/420 or 300-400nm selectable single-point automatic control, optional second-point monitoring Light Monitoring SmartLightTM monitor Relative Humidity Control Automatic Humidity Range Light cycle: 10-75%, Dark cycle 10-100% Temperature Control Automatic Black panel or black standard temperature BPT 40-110 ℃ / BST40-120 ℃ Simultaneous control of BPT or BST and chamber temperature Standard BPT/BST dual control Optional Sample Rack Type Single layer Exposure Test Area 2188cm2 (339in2) Power Supply 400/230V, 3-phase, 4-wire, 50Hz, 38 A HVAC-MJ/h (BTU/h) (Max) 26.06MJ/h (24703BTU/h, 275CFM) Compressed Air 0.11m3/min (Max 4CFM), @552kPa, (80psi) Water flow rate Pressure: 38-345kPa (20-50psi)
Humidification: 0.12l/min deionized water
Specimen spray: 0.07l/min deionized water
Specimen rack spray: 0.07l/min deionized water
Dimensions Length x Width x Height (L x W x H): 95cm x 84cm x 183cm Base 115cm x 240cm Weight 404kg (890lb) ● Options:
BPT/BST dual control: Optional
Irradiance control: 340/420 or 300-400nm single-point automatic control, optional second-point monitoring
Special locking casters and structural modifications
WXView (climate observation) data acquisition system
Two-tier rack - 60 sample positions
● Optional configuration:
LS-200 full-spectrum monitoring equipment Textile Kit for AATCC
Test Method 16 and/or ISO 105 B02

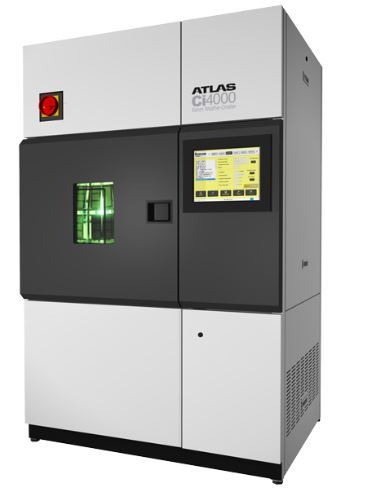

ATLAS Ci4000+ Xenon Arc Weathering Tester:

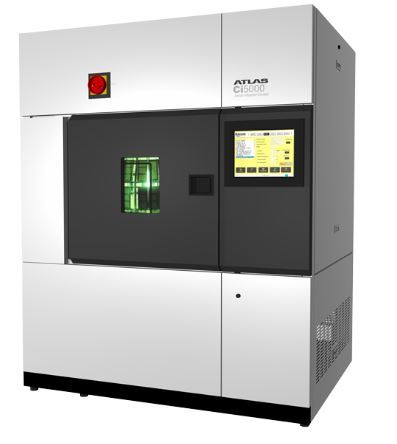

ATLAS Ci5000+ Xenon Arc Weathering Tester:
