Tumbling barrel drop tester
The tumble test machine is designed for continuous drop testing of small electrical structures and appliances. This tester is used to demonstrate and analyze the mechanical and electronic weaknesses of the tested object. This equipment is ideal for performing periodic continuous drop and tumble tests. Heinä’sⅡ type drum drop tester is used to test the damage of various small items and components. This machine is suitable for performing IEC 60068-2-31 (including IEC 68-2-32 and BS EN 60068-2-32) standards.
Keywords:
Physical property testing
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: Tumbling barrel drop tester
The tumble test machine is designed for continuous drop testing of small electrical structures and appliances. This tester is used to demonstrate and analyze the mechanical and electronic weaknesses of the tested object. This equipment is ideal for performing periodic continuous drop and tumble tests. Heinä’sⅡ type drum drop tester is used to test the damage of various small items and components. This machine is suitable for performing IEC 60068-2-31 (including IEC 68-2-32 and BS EN 60068-2-32) standards.
● Equipment Category
Heinä’sⅡtype drum tumble tester is used to test the breakage of various small items and components. This machine is suitable for performing IEC 60068-2-31 (including IEC 68-2-32 and BS EN 60068-2-32) standards.
● Working principle
Place the item to be tested in the drum tumble tester, set the required number of drops, and start the machine. Afterwards, the machine will drop the item from a random position (free fall) onto the base of the machine.
Select the rotation speed of the drum so that the item falls to the middle of the base. The machine can be adjusted according to customer's wishes.
The drum tumble tester complies with EU machinery safety directives 2006/42/EY, 2006/95/EY, 2004/108/EY, and the implemented SFS-EN ISO 12100 standard.
● Product features
- Solid aluminum alloy frame, reliable structure
- Programmable design
- Safe and clean design
- Safe use: safety door, top and electronic door locks
- Drop test in accordance with IEC 60068-2-31 standard
- Drop test in accordance with IEC 60950-1 standard
- CE certified
- Easy to operate
- Adjustable drum drop rate
- Easy access to the product for inspection
- Preset drop counter, number of drops is 1-9999
- Equipped with an inspection table
- Maintenance-free machine

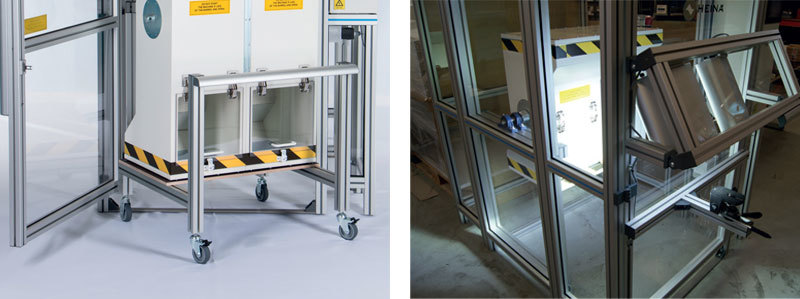

- The tester can be disassembled into three independent parts for easy transportation
- Has a library of five different programs
- Optional high-speed camera
● Limitations
The type Ⅱ drum tumble tester must not be used to test explosive objects, or objects that release harmful gases when damaged that may pose a health hazard to the user or the surrounding environment.
● New features
Technical specifications
Width： 1160 mm Height： 1600 mm Depth： 1500 mm Drop height： 1000mm and 500mm Drop rate, infinitely adjustable： 5-15 times/min Motor power： 0.18 KW Power requirements： 100–240 V, 50–60 Hz Machine weight： 200 kg Maximum sample weight： 1 kg CE mark： Yes
