SIMSCAN-E Smart Wireless Handheld 3D Scanner
The SIMSCAN-E wireless handheld 3D scanner, with its lightweight body and cutting-edge wireless scanning technology, ushers in a new era of lightweight, portable, and wireless scanning freedom. Equipped with a powerful edge computing engine and a high-definition industrial camera module, it boasts a measurement rate of up to 6.3 million measurements per second, rapidly capturing 3D data with metrology-grade accuracy. Featuring high-speed, fine, and deep-hole scanning modes, its leading performance allows it to easily handle measurements in confined spaces or complex structures.
Keywords:
3D scanner
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: SIMSCAN-E Smart Wireless Handheld 3D Scanner
The SIMSCAN-E wireless handheld 3D scanner, with its lightweight body and cutting-edge wireless scanning technology, ushers in a new era of lightweight, portable, and wireless scanning freedom. Equipped with a powerful edge computing engine and a high-definition industrial camera module, it boasts a measurement rate of up to 6.3 million measurements per second, rapidly capturing 3D data with metrology-grade accuracy. Featuring high-speed, fine, and deep-hole scanning modes, its leading performance allows it to easily handle measurements in confined spaces or complex structures.
Product Introduction
SIMSCAN-E is a handheld 3D scanner that combines high-precision edge computing, wireless transmission technology, powerful performance, and a lightweight form factor. Wireless control unlocks a new form of lightweight portability and flexible freedom for scanning.
Equipped with a powerful algorithm engine and a high-definition industrial camera module, the measurement rate is up to 6.3 million measurements/second, with 81 beams of blue laser lines rapidly capturing high-precision 3D data. Equipped with high-speed, fine, and deep-hole scanning modes, it excels in various scenarios.
It easily handles measurements in narrow spaces or complex structures.
Slender and Dynamic, Wireless and Versatile

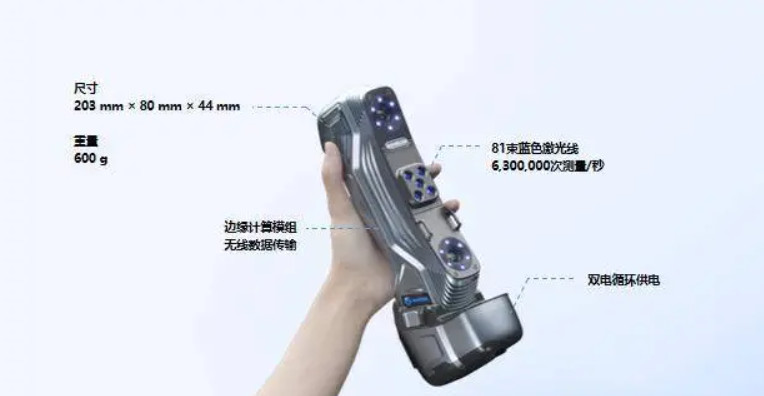

An all-around lightweight design for convenient portability and minimalist aesthetics. The 600g all-metal streamlined lightweight body, measuring only 203mm × 80mm × 44mm, provides comfortable handling. The leading-edge edge computing module enables an efficient data computing engine, coupled with wireless data transmission, giving every scan unlimited freedom and dynamism.

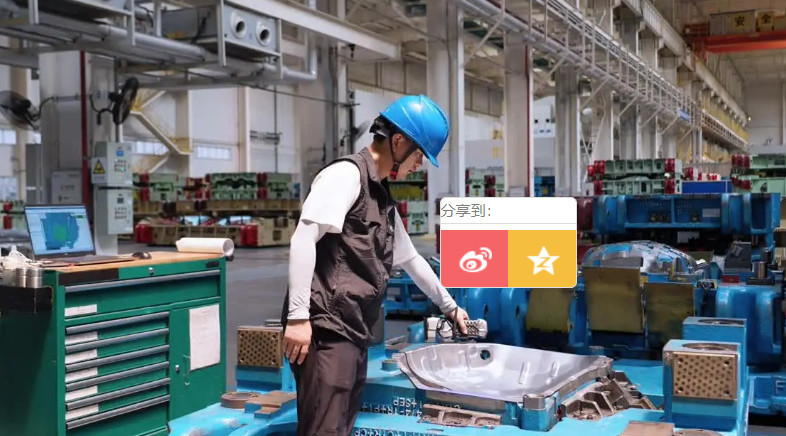

It can handle complex workshops, high-altitude operations, and outdoor environments without power, demonstrating its composure.

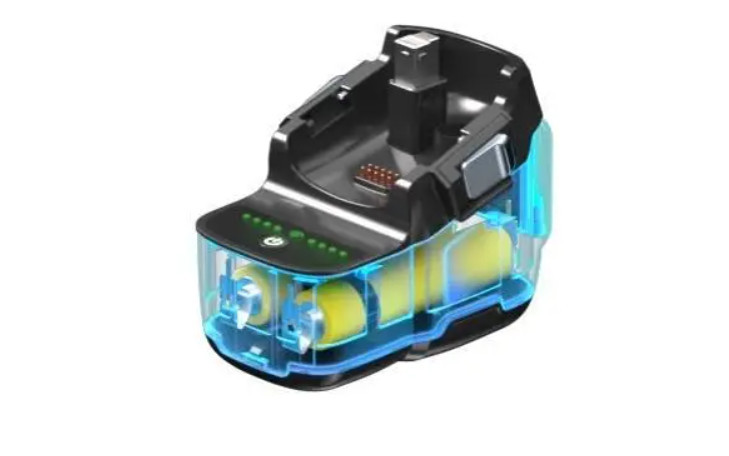

Removable battery compartment design, large-capacity battery stable output, safe and durable, dual battery cycle power supply, no need to interrupt scanning work, easy to replace the core, worry-free battery life, easily say goodbye to power anxiety. Intelligent power prompts, allowing you to freely control the entire scanning process. Supports switching between wired/wireless scanning modes to flexibly meet various measurement scenarios.
Supports easy switching between wired/wireless scanning modes, flexibly adapting to various measurement scenarios.
Efficiency Upgrade, Smooth High Energy
With super-strong hardware performance and leading-edge algorithms, enjoy unprecedented super measurement rates. 81 beams of blue laser lines, 6,300,000 measurements/second, 180 FPS high-frame rate smooth scanning, freely showing high-energy moments, powerfully demonstrating a smooth scanning experience for various workpieces in various measurement scenarios.
Smooth scanning experience, easily controlling various measurement scenarios.
Microscopic Vision, Precision Display
Equipped with a ultra-high-performance industrial camera module, combined with innovative image enhancement technology and sub-pixel feature extraction algorithms, it can discern minute details and complex surface features.
Relying on powerful algorithms and carefully selected aerospace-grade components, SIMSCAN-E delivers mature and reliable system performance, with accuracy up to 0.020mm, meeting the requirements of industrial-grade high-precision 3D scanning and measurement, and achieving data capture throughout the product's lifecycle from design to production testing.
Multiple Modes, Free Control
Intelligently switch between different scanning modes to easily handle workpieces of different materials, shapes, and sizes, meeting various data acquisition and testing needs.
High-Speed Scanning
63 beams of intersecting blue laser lines quickly assess workpiece geometry and dimensions.
Technical Specifications
Model SIMSCAN-E Scanning Mode High-Speed Scanning 63 beams of intersecting blue laser lines Fine Scanning 17 parallel blue laser lines Deep Hole Scanning Additional 1 blue laser line Accuracy Up to 0.020 mm Maximum Scanning Rate 6,300,000 measurements/second Maximum Scanning Area 700 mm × 600 mm Laser Class Class Ⅱ (Eye Safe) Maximum Resolution 0.020 mm Maximum Volumetric Accuracy Standard 0.015 mm + 0.035 mm/m Equipped with MSCAN-L15 Global Photogrammetry System 0.015 mm + 0.012 mm/m Baseline Distance 300 mm Depth of Field 550 mm Output Format .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, etc. Dimensions 203 mm × 80 mm × 44 mm Weight 600 g Operating Temperature -10°C–40°C Operating Humidity (Non-condensing) 10-90% RH Communication Interface USB3-B
