KSCAN-Magic series composite 3D laser scanner
The KSCAN-MAGIC series are infrared + blue laser metrology-grade composite 3D scanners, standard with five working modes: infrared parallel laser large-area scanning, blue cross laser high-speed scanning, blue parallel laser fine scanning, single-beam blue laser deep-hole scanning, built-in global photogrammetry system.
Keywords:
3D scanner
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: KSCAN-Magic series composite 3D laser scanner
The KSCAN-MAGIC series are infrared + blue laser metrology-grade composite 3D scanners, standard with five working modes: infrared parallel laser large-area scanning, blue cross laser high-speed scanning, blue parallel laser fine scanning, single-beam blue laser deep-hole scanning, built-in global photogrammetry system.
Product Introduction
The KSCAN-Magic series of 3D laser scanners is the world's first infrared + blue laser metrology-grade composite 3D laser scanner, standard with five working modes: the world's first infrared parallel laser large-area scanning, blue cross laser high-speed scanning, blue parallel laser fine scanning, single-beam blue laser deep-hole scanning, and built-in global photogrammetry system.
The KSCAN-Magic series of 3D laser scanners has made a historic breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, area, and depth of field greatly optimize the 3D measurement workflow and accelerate product launch cycles.
When acquiring data from hard-to-reach or complex surfaces, users can freely choose a contact-type three-coordinate stylus, providing a comprehensive digital solution for 3D laser scanners and precision measurement.
World's First, Powerful Launch

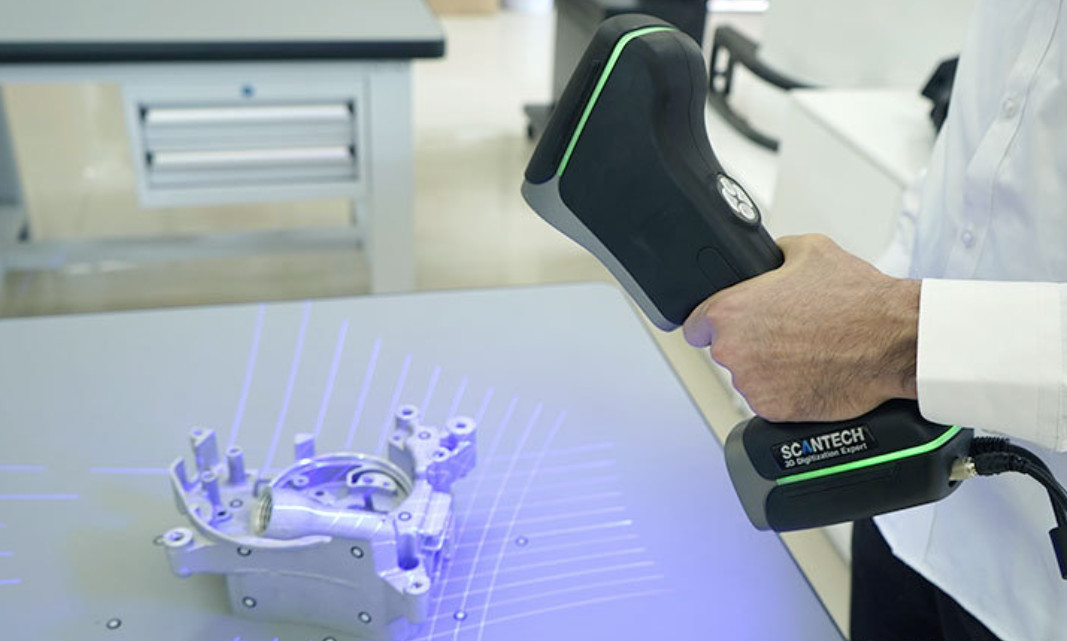

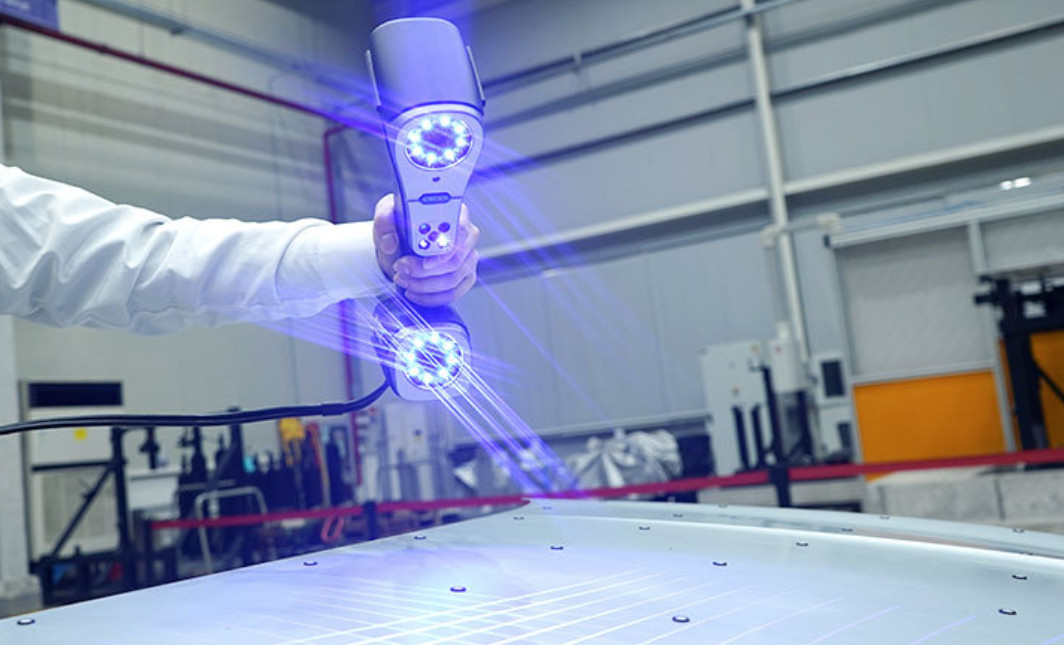

Using the world's first infrared laser scanning technology, ultra-wide range working mode, scanning area up to 1440 mm x 860 mm, high-precision large-area scanning effortlessly.
Efficient and Smooth, Free Control
Based on different application scenarios, you can freely switch between five measurement modes, greatly improving work efficiency.
Every Detail, Insight into Everything

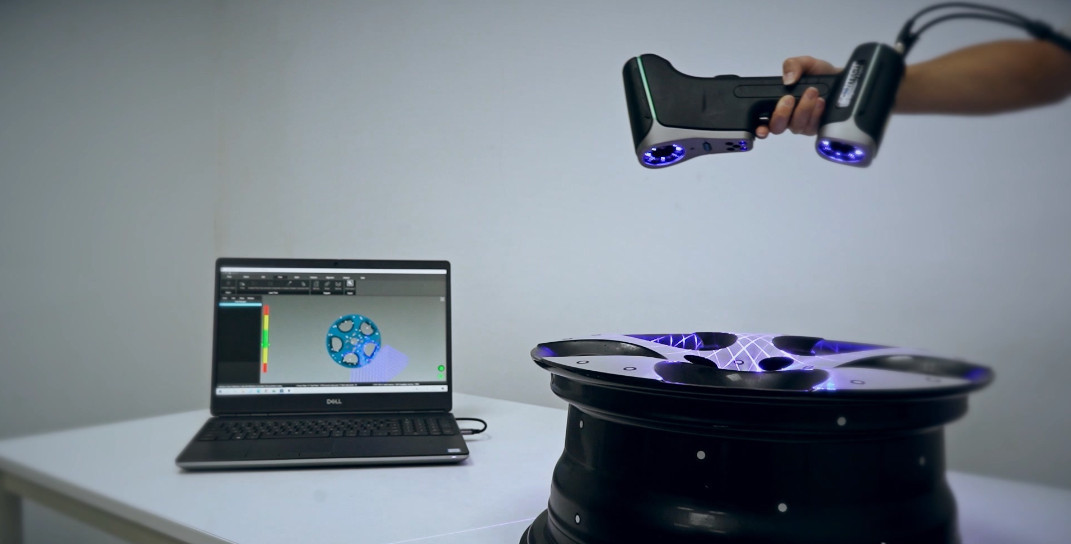

In the ultra-fine scanning mode, it can accurately acquire complete data from the surface of complex objects, with a maximum resolution of 0.010 mm, easily capturing every detail.
Single-Line Scan, No Detail Missed

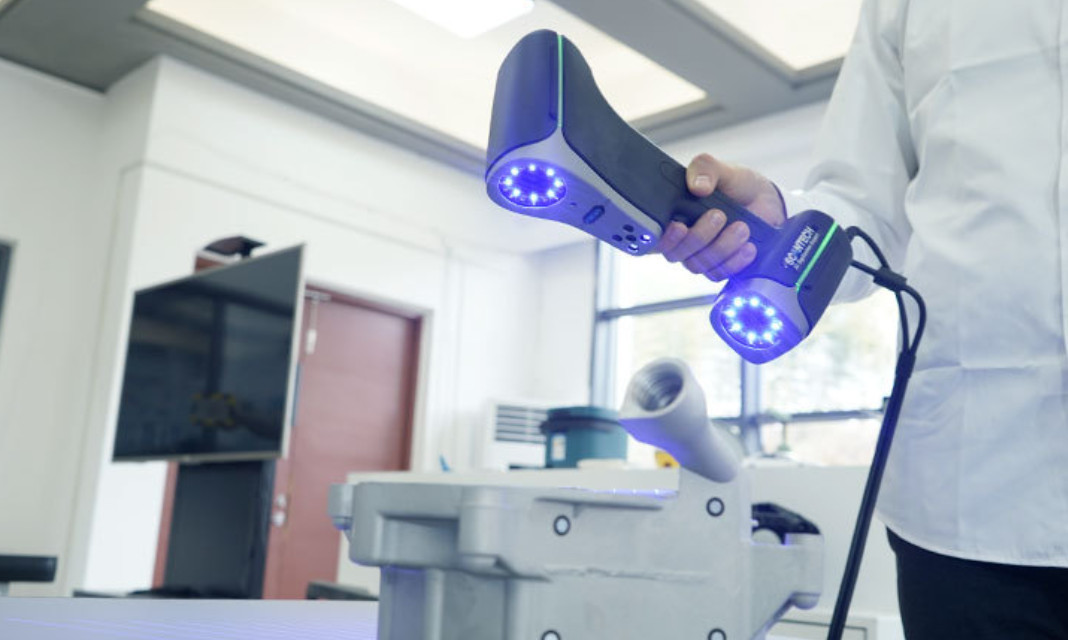

Single-beam blue laser line scanning can accurately and quickly acquire 3D data from deep holes and blind spots. 。
Precision Measurement, Non-Destructive Testing
Scanning accuracy 0.020 mm, volume accuracy 0.030 mm/m, can provide ultra-high precision non-destructive testing for the aerospace field.
Product Model
Model
KSCAN-Magic
KSCAN-Magic ll
Scanning Mode High-Speed Scanning 22 cross blue laser lines
26 cross blue laser lines
Fine Scanning
7 parallel blue laser lines Large-Area Scanning
11 parallel infrared laser lines
Deep Hole Scanning
Additional 1 blue laser line
Total Number of Laser Lines
41 beams
45 beams
Accuracy
0.020 mm Maximum Scanning Rate
1,350,000 measurements/second
1,650,000 measurements/second
Maximum Scanning Area
mm × 860 mm mm
1440 Photogrammetry Optional
Standard (Built-in)
Area
3760 mm × 3150 mm
Depth of Field
Laser Category
Class
2500 mm
II
(Eye Safe) Maximum Resolution 0.010 mm
Maximum Volumetric Accuracy
Standard
0.010 mm + 0.030 mm/m
Equipped with 1m high-precision rod
0.010 mm + 0.020 mm/m
Equipped with MSCAN-L1 Global Photogrammetry System 0.010 mm + 0.015 mm/m 5 Baseline Distance Depth of Field K-Probe Stylus
Optional
Optional
300 mm
Single Point Repeatability
925 mm
0.030 mm
Tracking Frequency
hz
Intelligent Boundary Detection Module
Boundary Accuracy
Pipe Fitting Measurement Module
60 Output Format
Output
Tracking Frequency
hz
and Compensation Values
Boundary Accuracy
管件测量模块
Tracking Frequency
hz
输出格式
输出YBC/LRA及补偿值
Output format
.stl, .ply, .obj, igs, wrl, .xyz, .dae, .fbx, .ma, .asc, etc., customizable
Operating temperature
-10～40℃
Interface method
USB3.0
Patent certificates CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S,
CN209991946U, US10309770B2, KR102096806B1
