3D scanning solution for complex measurement and inspection tasks Reliable, versatile, compact, mobile, and highly precise: the ATOS Q is ideal for use in your workshop. It is designed as a flexible 3D scanner that perfectly solves complex measurement and inspection tasks, meeting the high-end metrology needs of numerous industrial sectors. Combined with GOM Inspect, it forms an optical 3D measurement system that inherits the excellent genes of ATOS, is fast, compact, and easy to operate.
ATOS Q – The new compact ATOS
In the industrial sector, ATOS has become a leader in 3D optical scanning measurement. Its success stems from precise optical components, an industrial-grade scanner head design, and powerful computing software. The ATOS Q inherits the excellent DNA of previous ATOS generations, perfectly solving complex scanning and measurement problems.
High Compatibility of ATOS Q
The ATOS Q boasts extremely high design compatibility, capable of handling everything from manual scanning to fully automated scanning and measurement with the ATOS ScanBox 4105.
Manual Operation

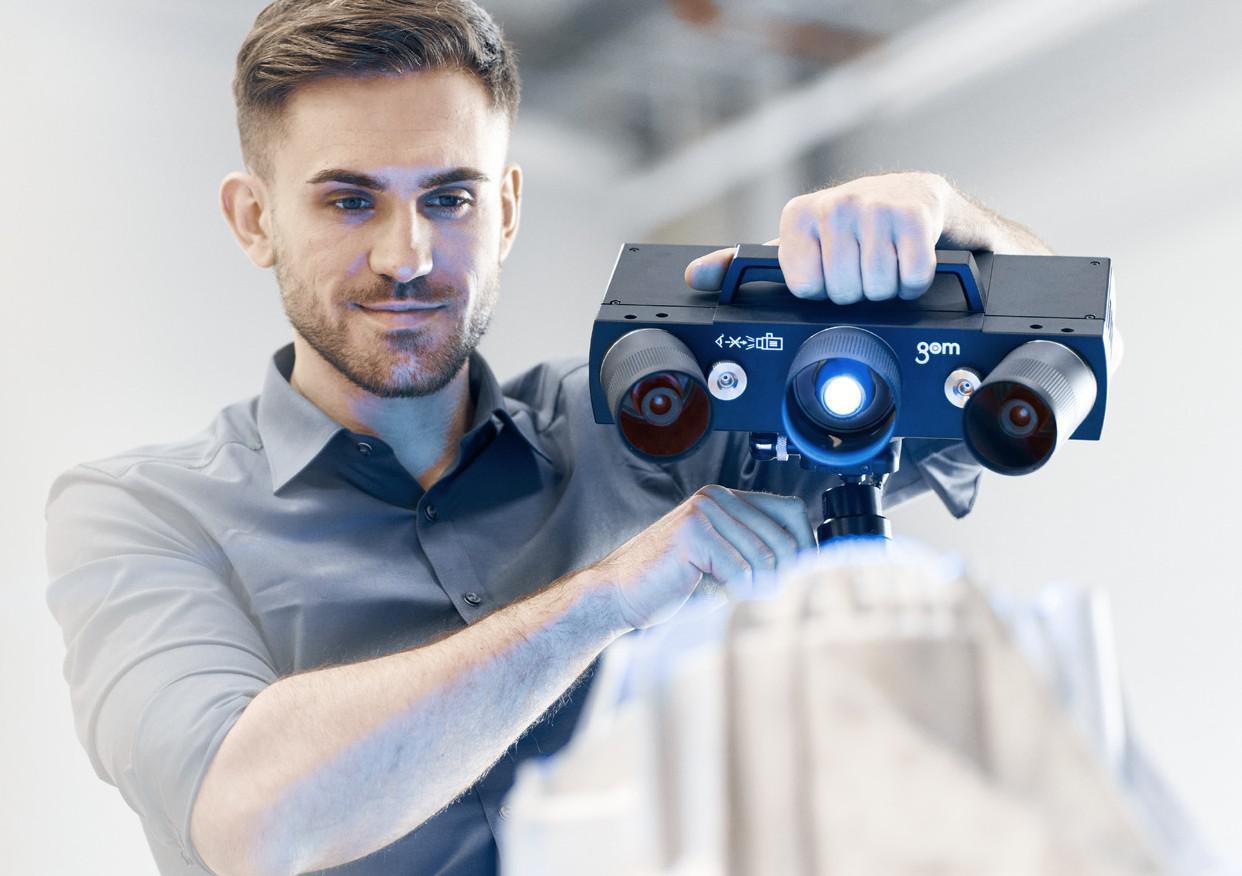

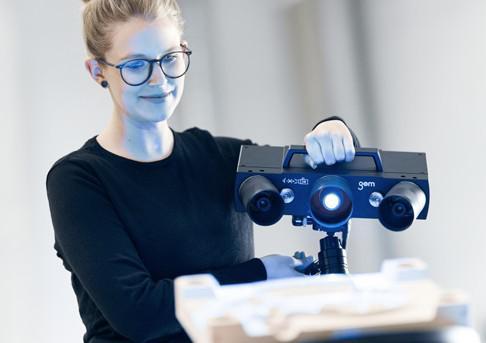

Weighing only 4 kg, the ATOS Q scanning head, combined with its compact design and carbon fiber tripod, allows you to scan anywhere.
Semi-Automatic Operation

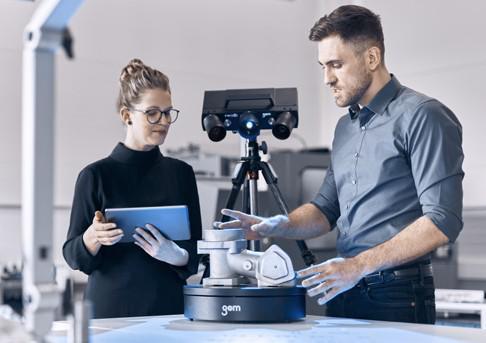

Mounted on a carbon fiber tripod or desktop stand, and coupled with the GOM ROT 350 automatic turntable or automatic turntable set, the ATOS Q can be operated semi-automatically.
Fully Automatic Operation

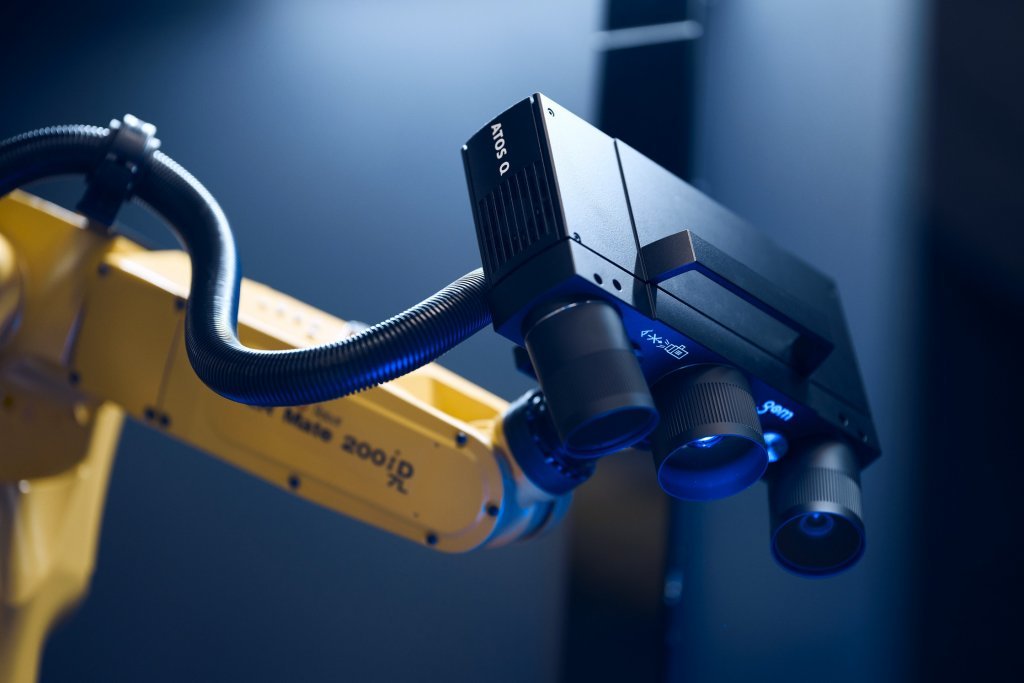

Combined with the ATOS ScanBox 4105, the ATOS Q delivers peak efficiency, ensuring highly efficient and reliable quality control.
One Series, Two Versions
The ATOS Q is available in two versions: 12M and 8M. This means the actual number of scan points during scanning can reach 2 x 12 million and 2 x 8 million points respectively. Resolution and scanning range are both selectable.
The ATOS Q is a versatile 3D scanner suitable for complex measurement and inspection tasks across various industries. Interchangeable lenses ensure high-precision measurement of both small and large components. The fixed camera position allows for easy switching between different measurement volumes.
 |
||
| Model | ATOS Q 8M | ATOS Q 12M |
| Light Source | LED | LED |
| Scan Points | 8 million | 12 million |
| Measurement Range [mm2] | 100 × 70 – 500 × 370 | 100 × 70 – 500 × 370 |
| Point Spacing [mm] | 0.04 – 0.15 | 0.03 – 0.12 |
| Working Distance [mm] | 490 | 490 |
| Weight | Approx. 4 kg | Approx. 4 kg |
| Dimensions | Approx. 340 mm x 240 mm x 83 mm | Approx. 340 mm x 240 mm x 83 mm |
| Cable Length | 10 m fiber optic cable | 10 m fiber optic cable |
| Operating System | Windows 10 | Windows 10 |
| Optional Scanning Range MV | 100, 170, 270, 350, 500 | 100, 170, 270, 350, 500 |
ATOS systems have become a leader in the field of optical 3D measurement. Precision optoelectronic components, an industrial-grade robust probe design, and powerful computing software are all fundamental to its success. The ATOS Q inherits the advantages of previous ATOS systems and is even more refined in design, technology, and performance, creating a compact, versatile system with the excellent DNA of ATOS.

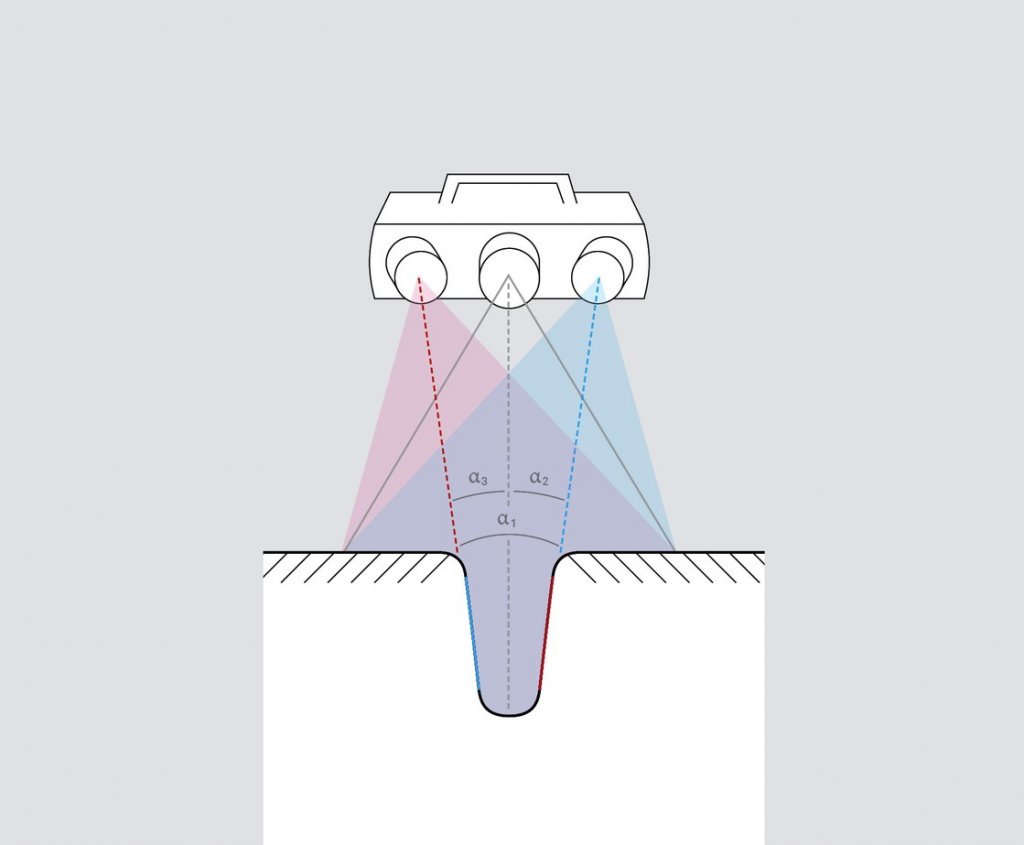

The 3-in-1 lens sensor, with its left and right cameras capable of simultaneous image capture, provides three different perspectives of the object in a single measurement. This reduces the number of scans required, resulting in faster measurement speeds (even with complex components) by avoiding "hotspots" and improving scanning results on glossy surfaces.

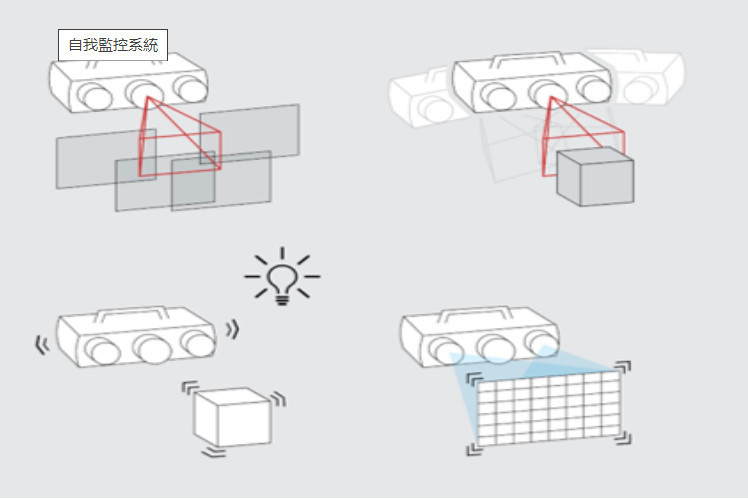

The ATOS Q incorporates all checks during the measurement process, from the clear conversion of single measurements to tracking the object's position even when the probe is moving. The ATOS Q also automatically detects ambient light, avoids measurement errors, and provides online calibration monitoring, continuously ensuring measurement accuracy. Reliable performance throughout the measurement process ensures quality in every measurement.

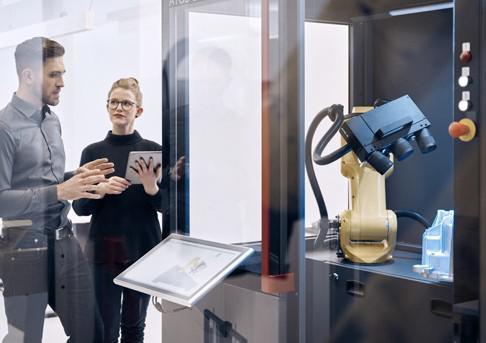

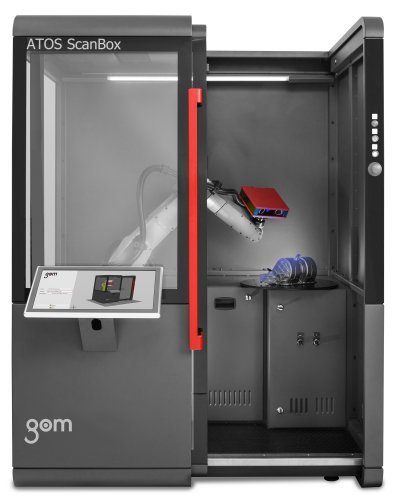

The ScanBox 4105 automated 3D measurement system features a virtual measuring room that allows for software planning of measurement needs before measurement. It can simulate the functionality of a real measurement environment. The virtual measuring room enables users to operate the system even without specific robotic programming skills. Before actual use in the real environment, all movement paths and activities of the robot arm are simulated and checked repeatedly to ensure operation.
