OptimScan 13M high-precision blue light 3D scanner
OptimScan 13M, a high-precision blue light 3D scanner with metering-level accuracy, continues to use a narrowband blue light source, offering strong anti-interference capabilities. Combined with powerful 3D reconstruction algorithms, it achieves metering-level measurement accuracy, reaching up to 4 microns. Equipped with a 13-megapixel high-performance industrial camera, it can capture highly detailed geometric features of object surfaces. The device also uses a modular lens setup, allowing for quick switching between different measurement ranges to adapt to various high-precision 3D measurement needs.
Keywords:
3D scanner
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: OptimScan 13M high-precision blue light 3D scanner
OptimScan 13M, a high-precision blue light 3D scanner with metering-level accuracy, continues to use a narrowband blue light source, offering strong anti-interference capabilities. Combined with powerful 3D reconstruction algorithms, it achieves metering-level measurement accuracy, reaching up to 4 microns. Equipped with a 13-megapixel high-performance industrial camera, it can capture highly detailed geometric features of object surfaces. The device also uses a modular lens setup, allowing for quick switching between different measurement ranges to adapt to various high-precision 3D measurement needs.
1.1 Product Overview

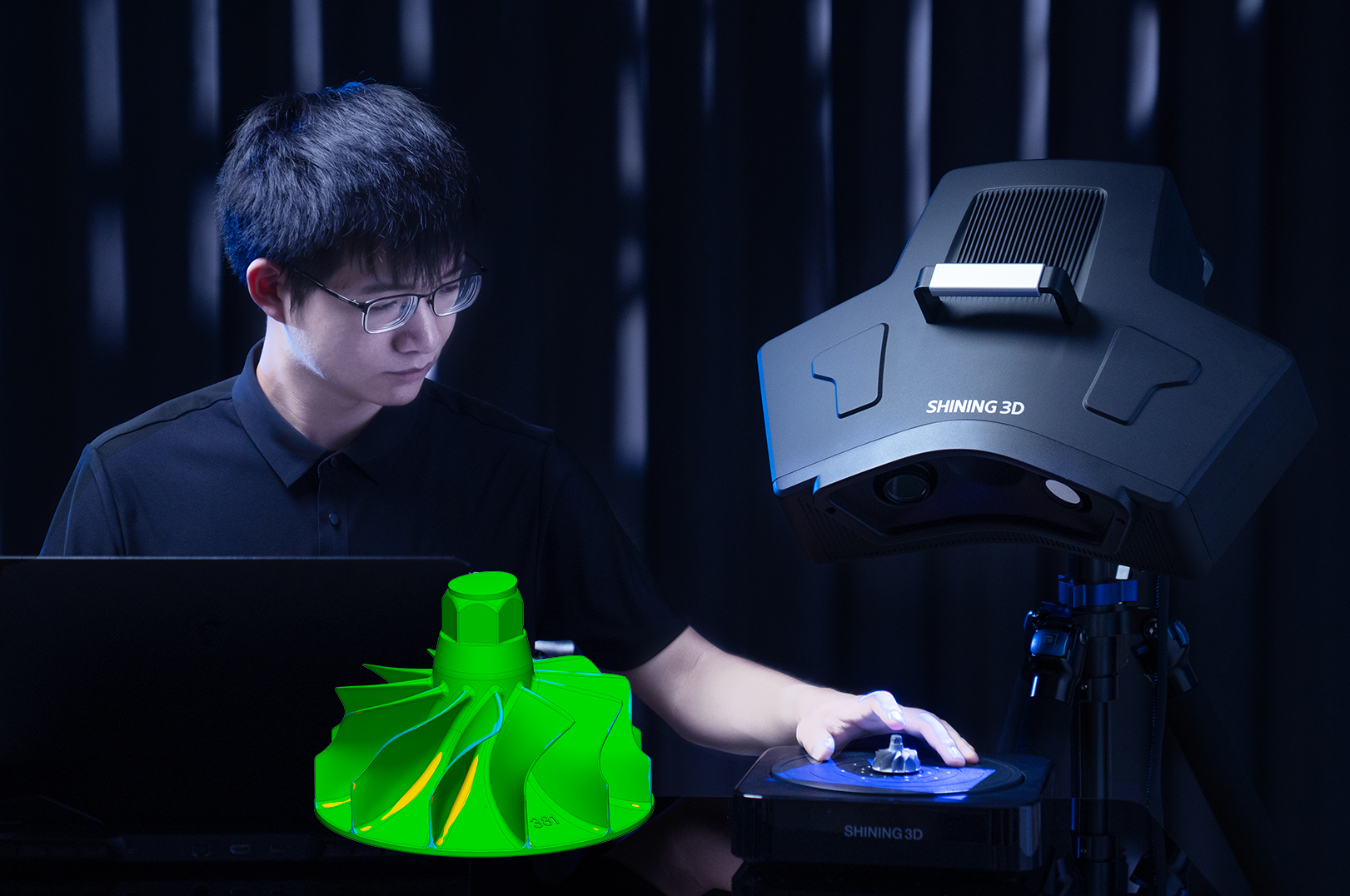

OptimScan 13M Metrology-grade high-precision blue light 3D scanner, continuing to use a narrowband blue light source, strong anti-interference ability, combined with powerful 3D reconstruction algorithm, achieves metrology-level measurement accuracy, accuracy up to 4 microns. Equipped with 1300 megapixel high-performance industrial camera, can obtain high-precision geometric features of the object surface. At the same time, the device adopts a modular lens setting, which can achieve rapid switching of different measurement ranges to adapt to various high-precision 3D measurement needs.
1.2、 Main functions

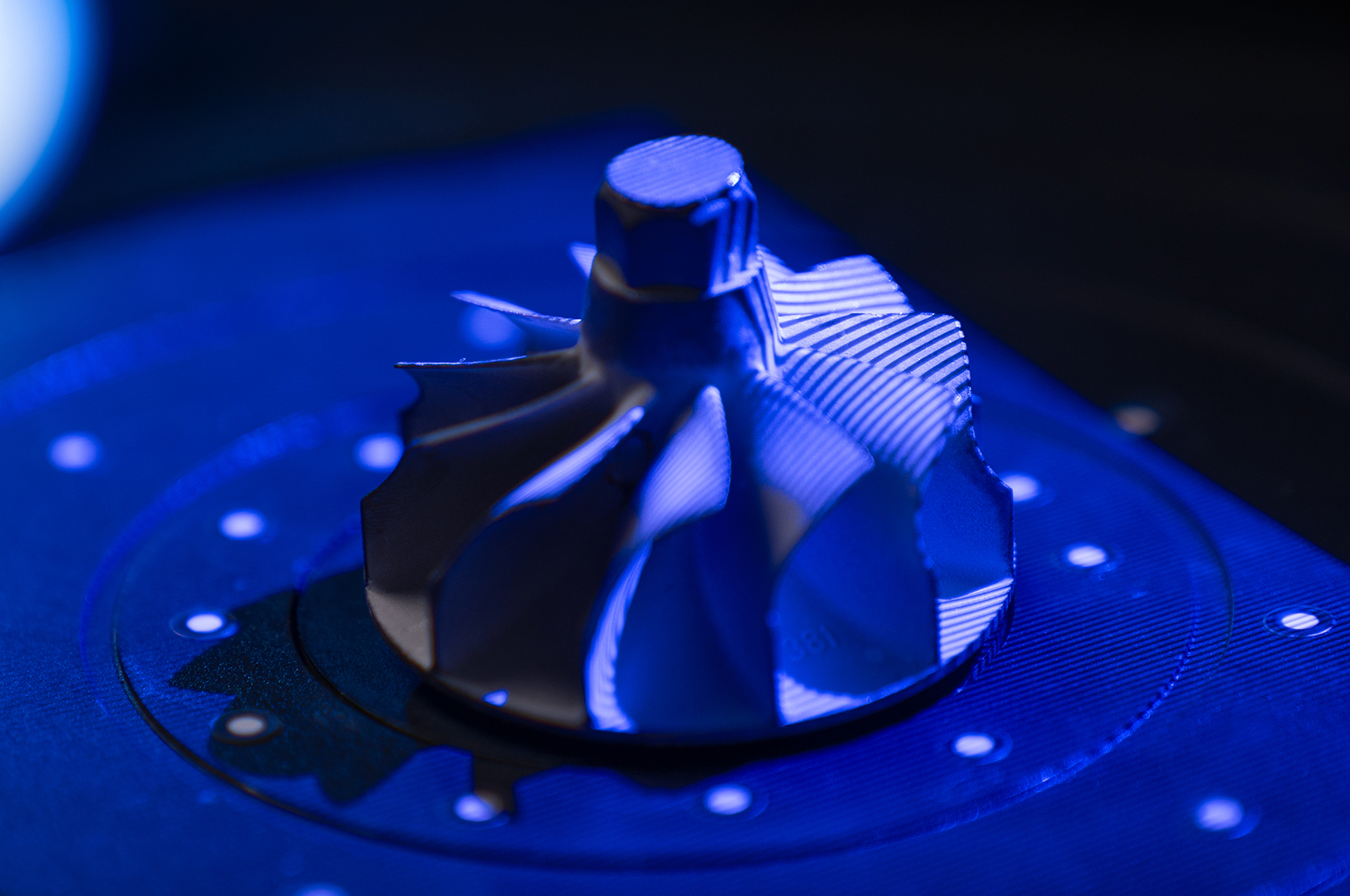

● Narrowband blue light
Using a narrowband blue light source, it has strong anti-interference ability, effectively avoiding environmental influences and obtaining high-quality data.
● Accuracy up to 4 microns
Using high-performance hardware modules and powerful 3D reconstruction algorithms, the accuracy can reach 0.004mm。

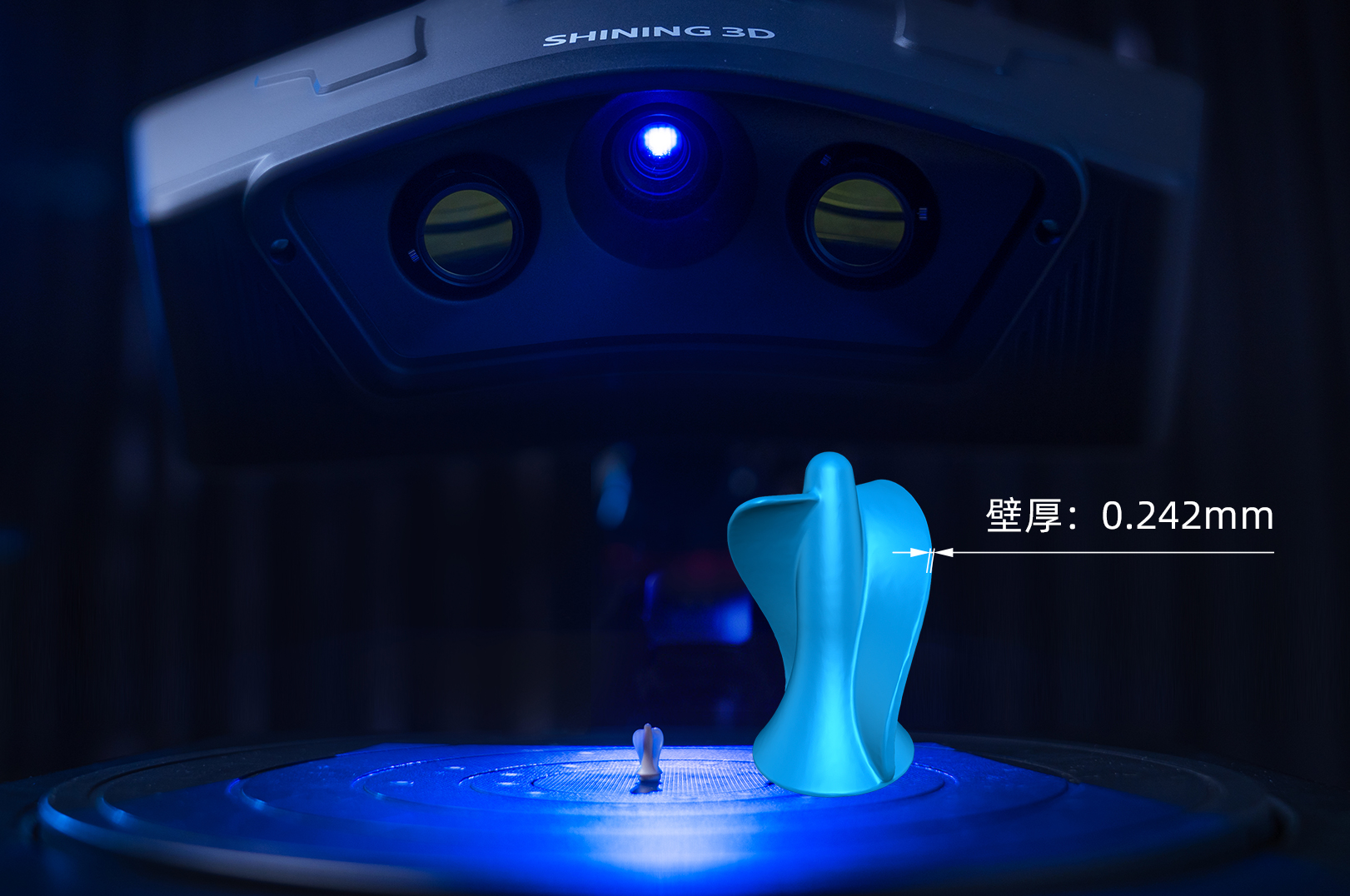

● High resolution
Equipped with 1300 megapixel high-performance industrial camera, can completely obtain the subtle geometric features of the workpiece.
● Efficient scanning

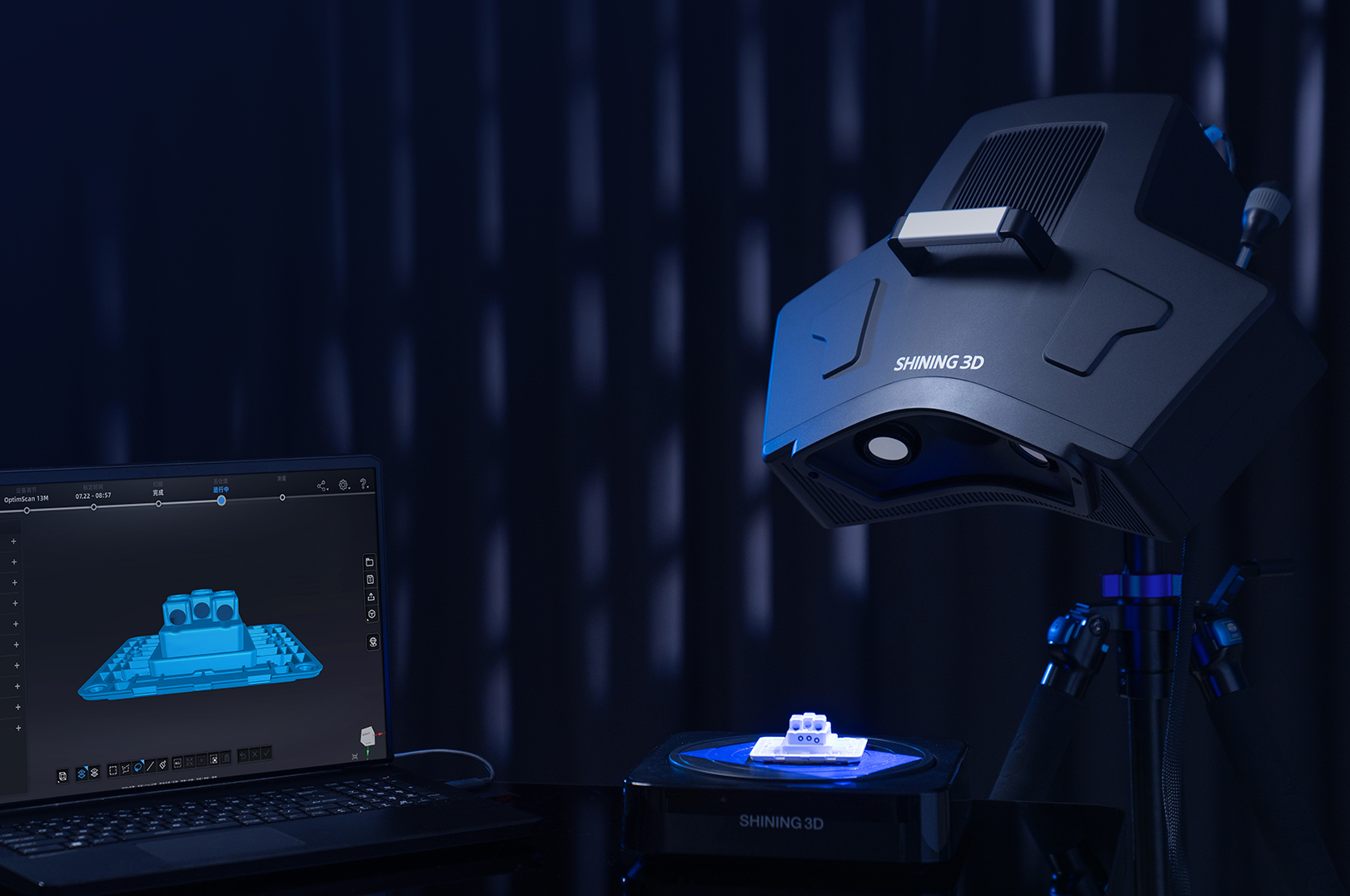

With automatic turntable, semi-automatic scanning can be realized to meet the needs of full-size inspection of a large number of workpieces.

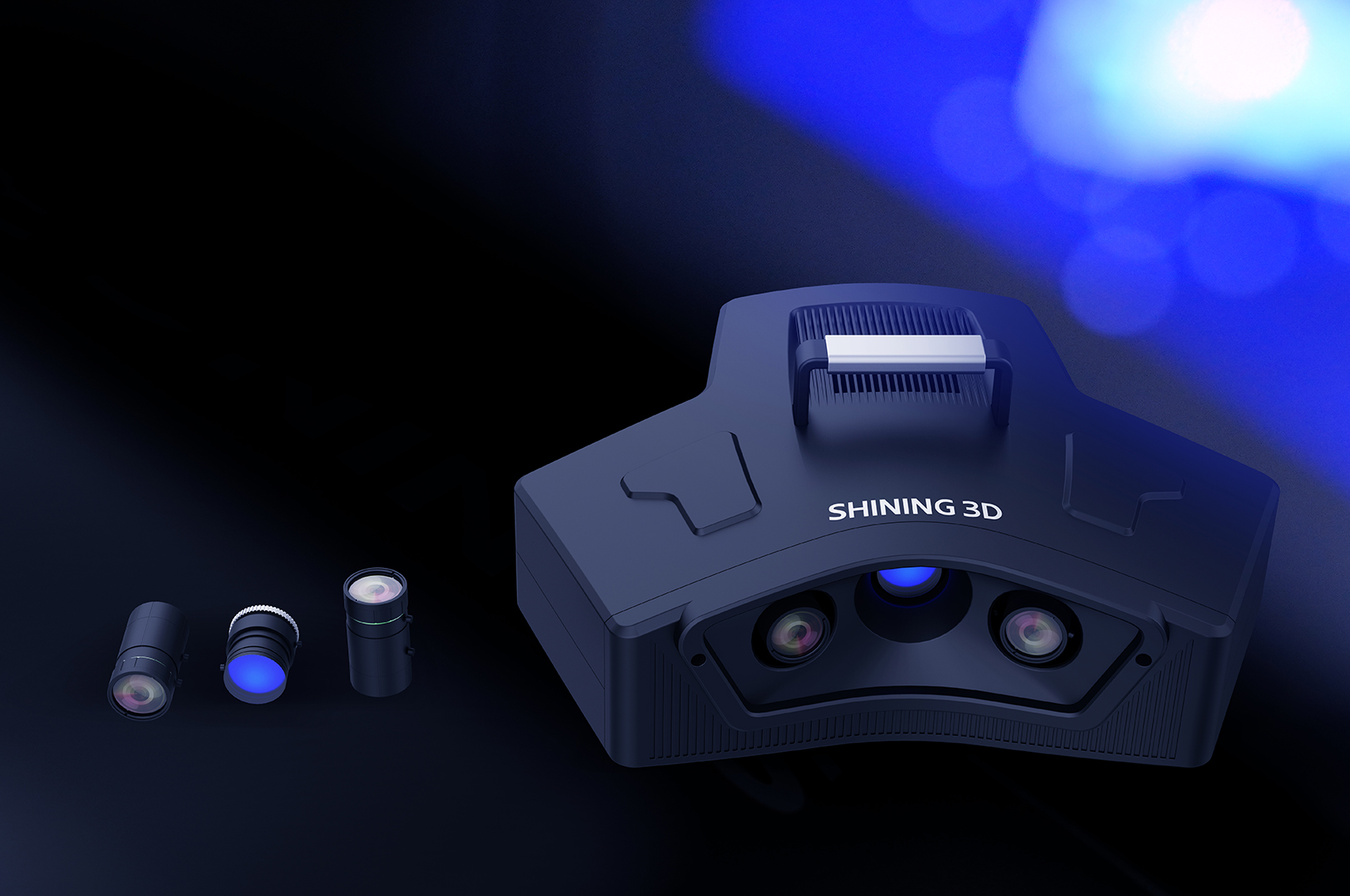

● Quick switching of multiple ranges
Equipped with two sets of high-resolution fine measurement industrial lenses, which can be quickly and easily switched to meet the needs of different measurement ranges.
1.3、Application Cases

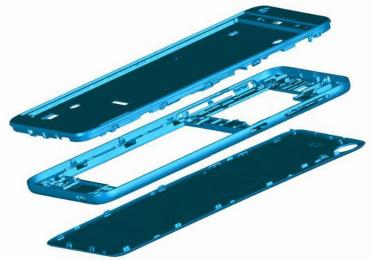

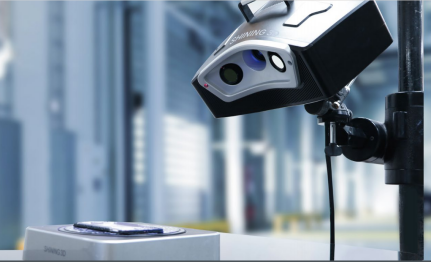

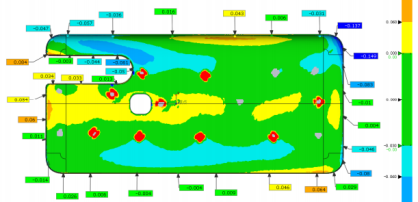

Application Case 1: Mobile phone back cover detection
As one of the precision assembly components, the mobile phone back cover has high size requirements. During the production process, it is necessary to measure parameters including flatness, curvature, step height and hole depth. OptimScan series fixed blue light 3D scanner has metrology-grade accuracy ( 13M accuracy up to 4 μm), and has strong detail restoration ability, can obtain high-quality 3D data, and with automatic turntable, semi-automatic scanning can be realized. Only 1 minutes are needed to complete the detection report of all positions of the mobile phone back cover, providing a quality assessment basis for the product.

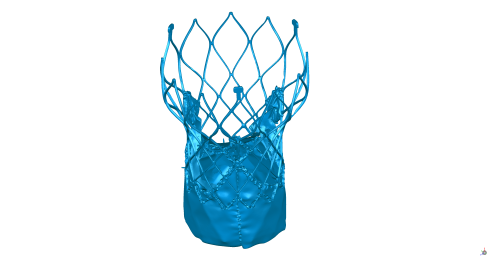

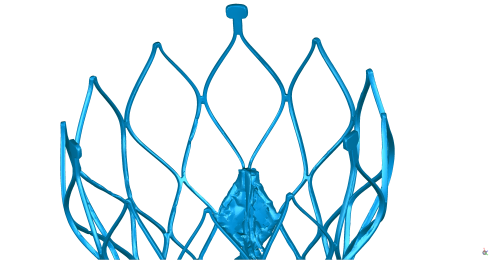

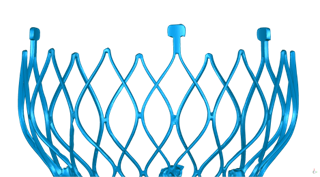

Application Case 2: 3D data acquisition of artificial heart valve
Artificial heart valves are cardiac interventional medical devices used to treat cardiac valve defects or degenerative lesions. Its basic structure includes three parts: metal frame, occluder and suture ring. In this case, we need to obtain the complete 3D data of the metal frame. Because it is a thin-walled mesh structure and its volume is relatively small, the scanning difficulty is relatively large. We use OptimScan series fixed blue light 3D scanner, relying on its high-performance hardware modules and powerful 3D reconstruction algorithm, completely obtains the complete 3D data of the artificial heart valve metal frame.
OptimScan 13M
Product Model
OptimScan 13M SD Standard type
OptimScan 13M HD High-definition type
Single-side measurement range
400 mm × 220 mm
200 mm × 110 mm
200 mm × 110 mm
100 mm × 55 mm
Accuracy *
0.012 mm
0.008 mm
0.008 mm
0.004 mm
Average point distance
0.087 mm
0.044 mm
0.044 mm
0.021 mm
Reference working distance
500 mm
310 mm
Sensor
2 × 1300 megapixel
Light source type
Blue light LED
Scanning speed
< 3 s
Scanning method
Non-contact photographic
Data output format
Export results as ASC ， STL etc., Data output interface is extensive, the measurement results can be used with NX, Solid Edge, CATIA, Solidworks, Creo, Inventor, Geomagic, Polyworks and other mainstream 3D software for data interaction
Operating temperature
0 ° C ~ 40 ° C
Operating Humidity
10% RH ~ 90% RH
Probe Weight
8.9 kg
External Dimensions
485 mm x 350 mm x 210 mm
Computer Configuration Requirements
Operating System: Win10 and above (Professional Edition), 64 bit; CPU ： Intel ® Core™ i7-11700 or above;
Graphics Card: NVIDIA RTX 3060 or above; Memory: 32GB or above; Video Memory: 6GB or above
III. Application Fields
Aerospace
3C Electronics
Medical Devices
Full-size inspection of blades
Blade failure analysis
Riveting assembly inspection
Structural assembly gap detection
Full-size inspection of laptop shells
Full-size inspection of mobile phone shells
Soldered circuit board inspection
Electronic Products 3D Measurement
Size inspection of human implants
Human Implants 3D Measurement
Size inspection of surgical instruments
Surgical Instruments 3D Measurement
Precision Hardware
Precision Injection Molding
Cultural relic protection
Precision stamping die inspection
Precision stamping product inspection
Precision die-casting die inspection
Precision die-casting product inspection
Full-size inspection of injection molds and injection finished products
Injection mold wear analysis
Injection Molded Products 3D Measurement
Preservation of complete data of cultural relics
Cultural relics 3D Repair
Cultural relic secondary creation design
High-efficiency cultural relic replication
