SJ5100 High-Precision Grating Length Measuring Machine
The grating length measuring machine adopts imported high-precision grating measurement system, precision grinding guide rail, high-precision environmental compensation system, two-way constant measuring force system, and high-performance computer control system technology to achieve high-precision measurement of various length parameters. The high-precision grinding guide rail ensures the high stability and linearity of the measurement travel. A German-imported high-precision grating measurement system is used to record the length direction coordinates in contact measurement. The computer synthesizes the data, the measuring force device, and the feedback data of the temperature sensor, and analyzes it according to the relevant definitions and formulas of the measured parameters to calculate the relevant length parameters. The operator installs the workpiece, selects the standard of the workpiece and inputs the specifications of the workpiece on the detection software, moves the headstock to contact the workpiece, adjusts the five-axis workpiece platform and the head and tail seats to find the inflection point, completes the sampling to obtain the current measurement data, the system can display the measurement results in real time, automatically calculates the various parameters of the workpiece (such as detecting the thread gauge, the thread mean diameter can be converted and displayed), and performs qualified judgment on the various parameters of the workpiece according to the standard database built in the system. The entire measurement process takes no more than 3 minutes, and the results and reports are automatically generated after the detection. The instrument measurement principle conforms to JJG 343-2012 Inspection Regulations for Smooth Limit Gauges, JJG 146-2011 Inspection Regulations for Gauge Blocks, JJG 21-2008 Inspection Regulations for Vernier Calipers, JJG 22-2014 Inspection Regulations for Inside Vernier Calipers, JJG 62-2017 Inspection Regulations for Feeler Gauges, JJF 1207-2008 Three-Pin/Pin Gauge Inspection Specifications, JJF 1345-2012 Calibration Specifications for Cylindrical Thread Gauges (tolerance reference GB/T 3934-2003), etc., length inspection regulations.
Keywords:
Electronics and Electrical Engineering
Dimension measurement
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: SJ5100 High-Precision Grating Length Measuring Machine
The grating length measuring machine adopts imported high-precision grating measurement system, precision grinding guide rail, high-precision environmental compensation system, two-way constant measuring force system, and high-performance computer control system technology to achieve high-precision measurement of various length parameters. The high-precision grinding guide rail ensures the high stability and linearity of the measurement travel. A German-imported high-precision grating measurement system is used to record the length direction coordinates in contact measurement. The computer synthesizes the data, the measuring force device, and the feedback data of the temperature sensor, and analyzes it according to the relevant definitions and formulas of the measured parameters to calculate the relevant length parameters. The operator installs the workpiece, selects the standard of the workpiece and inputs the specifications of the workpiece on the detection software, moves the headstock to contact the workpiece, adjusts the five-axis workpiece platform and the head and tail seats to find the inflection point, completes the sampling to obtain the current measurement data, the system can display the measurement results in real time, automatically calculates the various parameters of the workpiece (such as detecting the thread gauge, the thread mean diameter can be converted and displayed), and performs qualified judgment on the various parameters of the workpiece according to the standard database built in the system. The entire measurement process takes no more than 3 minutes, and the results and reports are automatically generated after the detection. The instrument measurement principle conforms to JJG 343-2012 Inspection Regulations for Smooth Limit Gauges, JJG 146-2011 Inspection Regulations for Gauge Blocks, JJG 21-2008 Inspection Regulations for Vernier Calipers, JJG 22-2014 Inspection Regulations for Inside Vernier Calipers, JJG 62-2017 Inspection Regulations for Feeler Gauges, JJF 1207-2008 Three-Pin/Pin Gauge Inspection Specifications, JJF 1345-2012 Calibration Specifications for Cylindrical Thread Gauges (tolerance reference GB/T 3934-2003), etc., length inspection regulations.
The grating length measuring machine adopts imported high-precision grating measuring system, precision grinding guide rail, high-precision environmental compensation system, bidirectional constant measuring force system, and high-performance computer control system technology to achieve high-precision measurement of various length parameters. The high-precision grinding guide rail ensures the high stability and linearity of the measurement travel. A German-imported high-precision grating measuring system is used to record the length direction coordinates in contact measurement. The computer synthesizes the data, the measuring force device, and the feedback data of the temperature sensor, and performs analysis according to the relevant definitions and formulas of the measured parameters to calculate the relevant length parameters.
After the operator installs the workpiece to be measured and selects the standard of the workpiece and inputs the specifications and other parameters of the workpiece on the detection software, the headstock contacts the workpiece to be measured, adjusts the five-axis workpiece platform and the head and tailstock to find the inflection point, and completes the sampling to obtain the current measurement data. The system can display the measurement results in real time, automatically calculate the various parameters of the workpiece to be measured (such as the detection of thread gauges, the thread mean diameter can be converted and displayed), and perform qualification determination of the various parameters of the workpiece to be measured based on the standard database built into the system. The entire measurement process takes no more than 3 minutes, and the results and report are automatically generated after the detection is completed.
The instrument's measurement principle conforms to the JJG 343-2012 Verification Regulation for Smooth Limit Gauges, JJG 146-2011 Verification Regulation for Gauge Blocks, JJG 21-2008 Verification Regulation for Vernier Calipers, JJG 22-2014 Verification Regulation for Inside Vernier Calipers, JJG 62-2017 Verification Regulation for Feeler Gauges, JJF 1207-2008 Three-Pin/Pin Gauge Verification Specification, JJF 1345-2012 Calibration Specification for Cylindrical Thread Gauges (Tolerance Reference GB/T 3934-2003), and other length verification regulations and specifications.

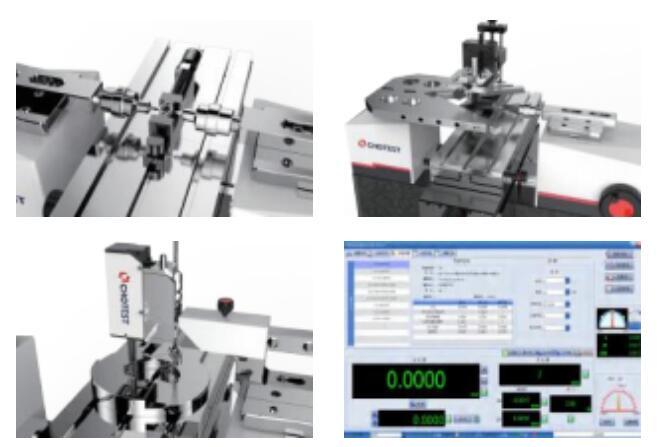

Functions and Features
● Full-range direct measurement
● High precision, high stability
● Bidirectional constant measuring force
● Intelligent management and detection software system
● High-performance five-axis worktable
● High-performance thread ring gauge measuring device
Technical Specifications
Model
SJ5100-UP300/600/1000
SJ5100-Lab300/600/1000
SJ5100-Lab1500/2000/3000
SJ5100-Prec300/600/1000
SJ5100-Prec1500/2000/3000
Measuring Range
Direct External Dimensions (mm)
0～340mm/640mm/1040mm
0～340mm/640mm/1040mm
0～1540mm/2040mm/3040mm
Relative External Dimensions (mm)
50~400mm/700mm/1100mm
50~400mm/700mm/1100mm
50~1600mm/2100mm/1100mm/3100mm
External Dimension Indicating Error (µm)
±(0.09+L/1500)µm*
Lab type
±(0.12+L/1000)µm*
±(0.25+L/1000)µm*
Prec type
±(0.2+L/1000)µm*1
±(0.4+L/1000)µm*1
External Dimension Repeatability (2S)(µm)
≤0.06µm
Lab type
≤0.08µm
≤0.15µm
Prec type
≤0.1µm
≤0.2µm
Highest Resolution (µm)
≤0.01 µm
Measuring Force (N)
Internal measuring device sensor measuring force 0.05N, 0.1N, 0.3N, 0.5N, main measuring force 1~10N manually continuously adjustable
Environmental Conditions
20±0.5℃, temperature fluctuation ≤0.2℃/H, relative humidity: 20～60%
Lab type
20±1℃, temperature fluctuation ≤0.2℃/H, relative humidity: 20～60%
Prec type
20±2℃, temperature fluctuation ≤0.5℃/H, relative humidity: 20～60%
Instrument Dimensions (mm)
(1400/1400/1700)×400×450
(1400/1400/1700)×400×450
(2200/2700/3700)×400×450
Instrument Weight (kg)
150kg/150kg/180kg
150kg/150kg/180kg
310kg/360kg/410kg
Five-axis worktable
Z-axis (mm)
≤0～50mm
Y-axis (mm)
≤±25mm
X-axis float (mm)
≤±10mm
Z-axis rotation (°)
≤±3°
Y-axis swing (°)
≤±3°
Load capacity (kg)
≤50kg
Table size (mm)
≤350mm×125mm
*1 Where: L is the measured
length, unit:
mm
