- Commodity name: WR 50 automatic precision turntable
Rotary Axis Measurement Principle
Rotary axis measurement requires the use of a WR50 automatic precision turntable in conjunction with SJ6000 angle measurement. The WR50 is connected to the rotary axis and serves as an angle standard. The WR50 achieves an angle measurement range of 0~360°, a measurement accuracy of ±1″, and a maximum speed of 10 rpm.
Technical Indicators
Model
WR50
Weight
1.9kg
Angle Measurement Range
(0~360)°
Height
148mm
Measurement Accuracy
±1″
Diameter
112mm
Resolution
0.01″
Communication Method
Bluetooth Transmission
Maximum Speed
10rpm
Power Supply
Lithium Battery
Maximum Tracking Speed
2rpm
Automatic Precision Turntable Application Cases
Rotary axis measurement of CNC machine tools Measurement of the CNC machine tool's main spindle Measurement of the CNC machine tool's swing axis
Angle measurement of CNC indexing tables Angle measurement of CNC indexing tables Indexing measurement of CNC lathes Software Introduction
Eccentric Shaft Measurement Configuration
The eccentric shaft measurement configuration mainly consists of the SJ6800 main unit, angle mirror group, WR50 automatic precision turntable, eccentric shaft accessories, and eccentric shaft measurement software.
Eccentric shaft accessories are used for angle positioning accuracy measurement of摇篮轴等转台 (which cannot be installed on the axis).The eccentric shaft attachment consists of the following components:
1. Powerful magnets, 3 pieces2. 90° installation bending plate
3. Eccentric shaft measurement software
Eccentric Shaft Measurement Principle

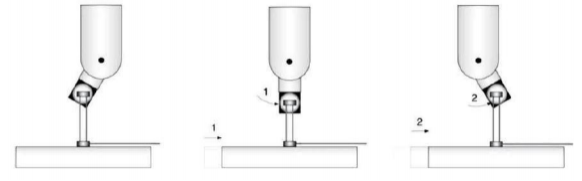

The working principle of eccentric shaft measurement utilizes the synchronous movement of the machine tool's linear axis and rotary axis. As shown in the figure below, each rotary axis movement has a corresponding linear axis movement. It should be noted that even with the same angle axis movement, the linear axis movement intervals will differ to ensure collimation between the interferometer and WR50.

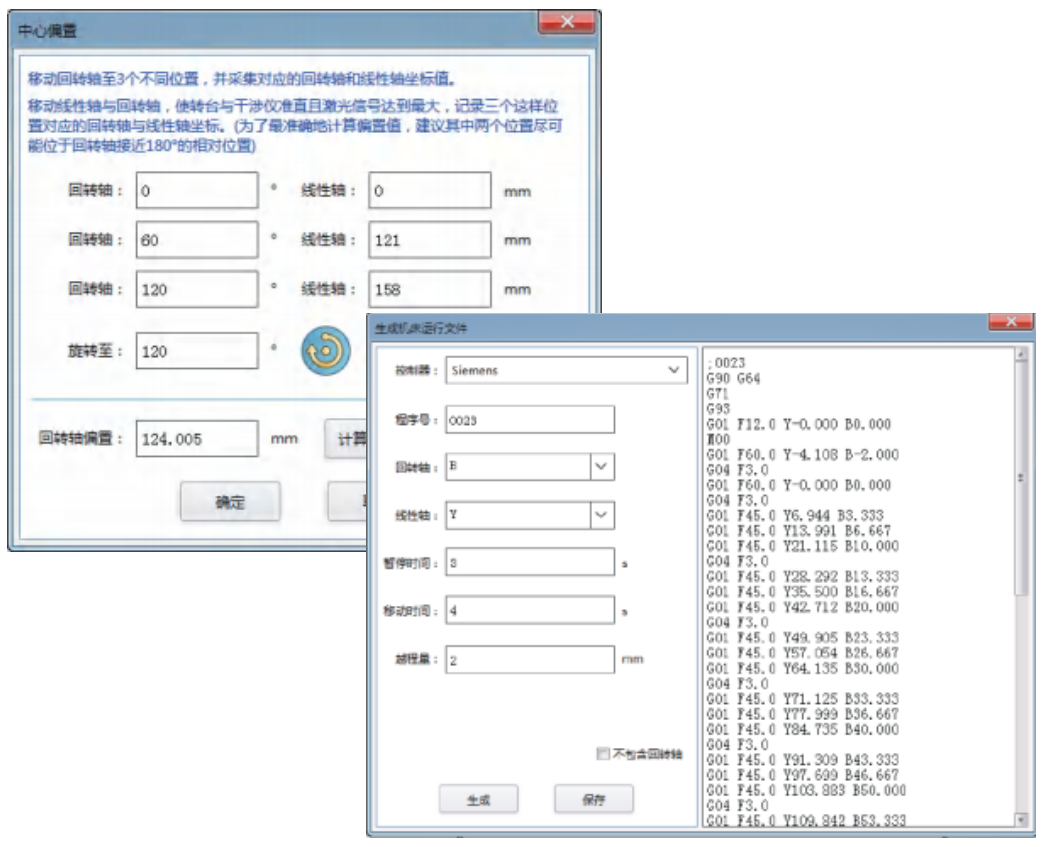

Software Settings for Eccentric Shaft Measurement
Eccentric Shaft Measurement Application Cases
Eccentric Shaft Measurement (Figure 1) Eccentric Shaft Measurement (Figure 2) Eccentric Shaft Measurement (Figure 3)
