- Commodity name: APS4000 Aircraft Power System Simulation Software
The APS4000 series aviation power system simulation software can be used with ITECH IT7800/IT7800E/IT7900P/IT7900EP series high-performance programmable AC/DC power supplies to provide power output of 5kVA-960kVA and 16Hz~2400Hz for airborne electrical equipment.
APS4000 Aviation Power System Simulation SoftwareThe APS4000 series aviation power system simulation software can be used with ITECH IT7800/IT7800E/IT7900P/IT7900EP series high-performance programmable AC/DC power supplies to provide power output of 5kVA-960kVA and 16Hz~2400Hz for airborne electrical equipment. The software includes mainstream aircraft power characteristic testing standards, such as MIL-STD-704, DO160, A350, A380, GJB181B, HB20326, and MIL1399, etc., realistically reproducing various AC and DC power systems in the aviation field, including DC 270Vdc, 28Vdc, single-phase AC 115V/400Hz, three-phase AC 115V/400Hz, and wideband 360Hz-800Hz. The APS4000 series software includes four models to meet different testing scenarios: APS4000-ASTD, APS4000-B787&AMD, APS4000-AVALL, and APS4000 1399. The software provides users with a user-friendly interface to help engineers quickly select test conditions and complete tests.Product Features♦ The APS4000 software mainly serves the power adaptability test of aviation airborne electrical equipment.
♦ Built-in mainstream aviation regulation waveforms, quick access, no programming background required.
♦ The APS4000-ASTD model includes MIL-STD-704, DO160, ABD0100.1.8, ABD0100.1.8.1, GJB181B, and HB20326 aviation regulation test standards.
♦ The APS4000-B787&AMD model includes B787 and AMD24C commercial aviation regulation test standards.
♦ The APS4000-AVALL model includes the aviation regulation standards included in APS4000-AVSTD and APS4000-B787&AMD.♦ APS4000-1399 is suitable for testing shipboard airborne electrical equipment.
♦ It can simulate different power outputs of more-electric/all-electric aircraft: single/three-phase constant frequency, single/three-phase wideband, low-voltage DC, and high-voltage DC.
♦ It can simulate normal and abnormal power characteristics of aircraft, with built-in regulatory test items for quick access.
♦ Provides test report function.Product Functions and Advantages
Application Range
The APS4000 aviation power system simulation software is widely used in testing airborne electrical equipment on aircraft or ships, such as lighting systems, communication systems, entertainment systems, aircraft instrument displays, and radar systems.
Regulations built-in, quick access.

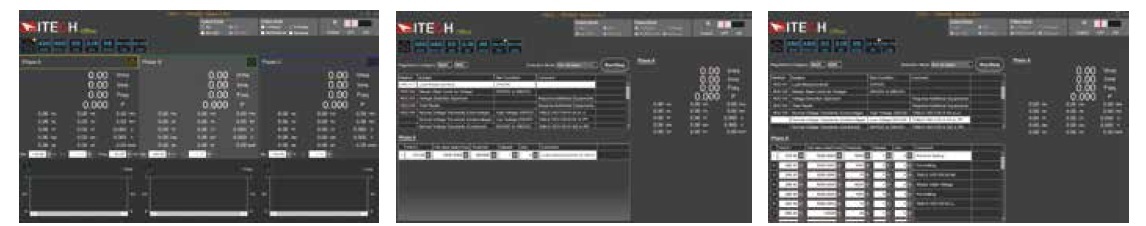

The APS4000 series features a user-friendly and clear software interface design, which greatly accelerates the testing process of airborne electrical equipment. After successfully installing the software on your computer, you only need a few simple
steps to complete the test.
1. Select the corresponding aviation or ship standard, such as MIL-STD 704.
2. Select the version number of the test standard, such as MIL-STD-704 RevF or RevE.
3. Select the power system type, AC or DC.
4. Select the test sequence number, such as HDC101, HDC102.
5. Select the test sequence run type: Run all steps/ Run single step/Loop single step.
6. Click Run to start the test.
