ITS5300 Battery Charge and Discharge Test System
The ITS5300 battery charge and discharge testing system is specifically designed for performance testing of various power batteries (lead-acid, nickel-hydrogen, lithium-ion, supercapacitors, hydrogen fuel cells, etc.), and can simulate various equivalent operating conditions of electric vehicles for battery packs.
Keywords:
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: ITS5300 Battery Charge and Discharge Test System
The ITS5300 battery charge and discharge testing system is specifically designed for performance testing of various power batteries (lead-acid, nickel-hydrogen, lithium-ion, supercapacitors, hydrogen fuel cells, etc.), and can simulate various equivalent operating conditions of electric vehicles for battery packs.
ITS5300 Battery Charge and Discharge Test SystemThe ITS5300 battery charge and discharge test system is specifically designed for performance testing of various power batteries (lead-acid, nickel-hydrogen, lithium batteries, supercapacitors, hydrogen fuel cells, etc.), and can simulate various equivalent operating conditions of electric vehicles on battery packs. It can simultaneously test hundreds of battery packs or 200 individual cells in hundreds of battery packs, significantly improving the testing efficiency and output of the production line. The ITS5300 test system consists of ITECH power supplies, electronic loads, internal resistance testers, temperature acquisition instruments, and professional battery testing software. It features a high degree of automation and high stability, making it an excellent choice for user testing.Product Features♦ It has the capability of constant-current constant-voltage charge and discharge, suitable for testing single cells/series battery packs.
* Charging Modes: CC/CV/Pulse Charging
* Discharging Modes: CC/CR/CP/Pulse Discharging
* Voltage Range: 0~2250 V
* Current Range: 0~8000 A
* Power Range: 0~10 MW
♦ Fast response speed, high sampling rate, seamless switching between charging and discharging, suitable for charge and discharge testing of various batteries.
* Sampling rate and data saving time as low as 1ms.
♦ High stability and high precision, ensuring absolute accuracy across a wide voltage/current range, improving equipment utilization.
* Voltage: 0.05% + 30 mV
* Current: 0.2% + 120 mA
♦ The system adopts a standard modular design, making it easy to expand hardware, broaden the application range, and facilitate future maintenance.
♦ Real-time online monitoring of single-module internal resistance, voltage, and temperature. It can analyze the AC internal resistance of individual batteries and the DC internal resistance of battery packs. The measured temperature depends on the thermocouple type selected by the user.
♦ Various alarm and protection settings effectively prevent battery over-discharge, overcharge, and other unexpected faults.
♦ The system uses GPIB communication and supports the expansion of multiple systems (ITS5300-001 uses USB communication).
♦ Multi-channel independent control
♦ Can simultaneously charge and discharge hundreds of battery channels
Product Functions and Advantages
Fast Battery Constant-Current Constant-Voltage Charge and Discharge
Series battery packs are widely used in various fields as power sources, but the series structure results in the inability of individual batteries to automatically balance during charging. Excess energy can only be dissipated in the form of heat, damaging the batteries that generate heat. This greatly affects the performance and lifespan of the battery pack.
The ITS5300-003 battery constant-current constant-voltage charge and discharge test system monitors the voltage of individual batteries in real time and can independently charge and discharge unbalanced batteries in the group, thereby effectively improving the usable capacity and extending the lifespan of the battery pack. During each step setting, the voltage, current, and voltage difference for constant-current constant-voltage charge and discharge can be set simultaneously. When the voltage difference between individual batteries meets the set value, the bipolar constant-current constant-voltage charge and discharge power supply will independently charge and discharge the individual batteries.
Modular Design Structure

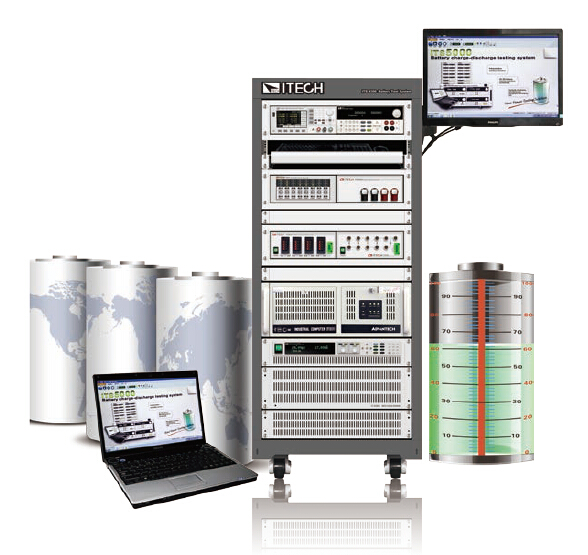

The ITS5300 battery charge and discharge test system consists of an industrial computer, electronic load, power supply, internal resistance analyzer, and temperature acquisition instrument. It provides professional test steps to help users significantly improve testing efficiency. At the same time, the system software allows for synchronous remote control of all devices within the system. The modular design allows users to select instruments that meet their specific testing needs to build an automated testing platform, providing greater flexibility and scalability for the system architecture.
Power-off Memory Protection Function
Compared to the single protection setting of traditional integrated charge and discharge units, the ITS5300 battery charge and discharge test system highlights its power-off memory function.
The power-off memory function is specifically designed and developed for long-term aging tests. It effectively ensures that data collected during long-term aging tests remains intact even in case of abnormal power outages or computer crashes. After the system resumes normal operation, the program continues from where the error occurred, avoiding the trouble of repeated testing and improving testing efficiency.
Similarly, if the system remains powered off, it will automatically cut off the charging or discharging circuit, preventing overcharge and over-discharge, protecting the safety and reliability of the battery experiment.
Real-time Monitoring of Charge and Discharge Status of Each Channel
Battery packs are usually composed of individual batteries connected in series. During the charging and discharging process, the charging and discharging characteristics of individual batteries may differ, so monitoring individual batteries is particularly important.
In addition to the important parameters of each channel, the ITS5300 system can achieve real-time monitoring of individual battery voltage, internal resistance, and temperature values by setting up a temperature meter and internal resistance meter.

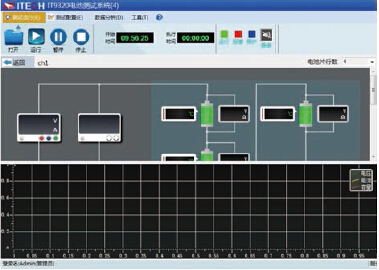

During testing, users can clearly observe the test information of each channel through the test software interface. Colored block diagrams warn users whether individual battery characteristics are normal or abnormal, providing intuitive and clear information and improving test reliability. This includes channel configuration information and parameters such as voltage, current, and discharge capacity of the corresponding battery in each channel, facilitating observation and recording.
