HSCAN series handheld 3D scanners
The HSCAN 3D scanner uses multiple laser beams to acquire 3D point clouds of the object's surface. The operator holds the device in their hand and adjusts the distance and angle between the instrument and the object in real time. The operation is flexible, convenient, simple, and easy to learn. When scanning large objects, it can be combined with a global photogrammetry system to eliminate cumulative errors and improve the accuracy of global scanning. This scanner can be easily carried to industrial sites or production workshops, and can perform efficient and accurate scanning according to the size, shape, and scanning conditions of the scanned object.
Keywords:
3D scanner
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: HSCAN series handheld 3D scanners
The HSCAN 3D scanner uses multiple laser beams to acquire 3D point clouds of the object's surface. The operator holds the device in their hand and adjusts the distance and angle between the instrument and the object in real time. The operation is flexible, convenient, simple, and easy to learn. When scanning large objects, it can be combined with a global photogrammetry system to eliminate cumulative errors and improve the accuracy of global scanning. This scanner can be easily carried to industrial sites or production workshops, and can perform efficient and accurate scanning according to the size, shape, and scanning conditions of the scanned object.
● Product Introduction

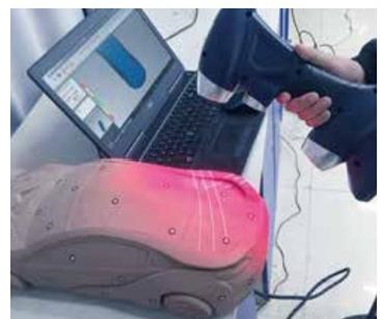

The HSCAN series of 3D scanners uses multiple laser beams to acquire 3D point clouds from the surface of an object. The operator holds the device in their hand and adjusts the distance and angle between the instrument and the object being measured in real time. The operation is simple and easy to learn.
When scanning large-volume objects, it can be combined with a global photogrammetry system to eliminate cumulative errors and improve the accuracy of global scanning. This scanner can be easily carried to industrial sites or
production workshops and perform efficient and accurate scanning according to the size, shape of the object being scanned, and the scanning conditions.
● Product Features
High-speed Scanning
It can continuously acquire 3D data at a measurement rate exceeding hundreds of thousands of times per second.
Anti-interference
The external environment has little impact on scanning accuracy, and it can work normally even under direct sunlight.
Real-time Display
The scanned data is displayed and stitched together in real time, quickly obtaining 3D data that is difficult to acquire, such as deep holes and blind spots. This advantage is particularly noticeable when scanning objects with complex shapes.
Ultra-high Precision
The accuracy is as high as 0.030 mm, ensuring accurate 3D measurement data acquisition.
Automatic Positioning
Automatic target point positioning, no tracking and positioning equipment is required, dynamic measurement is supported.
Flexible Operation
The instrument weighs less than 1 kilogram, is easy to operate, and can not only scan and stitch large objects but also be used in narrow spaces.
● Technical Parameters
HSCAN Series Handheld 3D Scanner
Model HSCAN-771 HSCAN-331 Light Source Type
14 intersecting beams + 1 red laser line
6 intersecting beams + 1 red laser line
Deep Hole Scanning
Supported
Accuracy
0.030 mm
Scanning Rate
480,000 measurements/second
265,000 measurements/second
Maximum Scan Area
275 mm × 250 mm
225 mm × 250 mm
Laser Type
CLASSII (Eye Safe)
Resolution
0.050 mm
Volume Accuracy
Standard
0.020 mm + 0.060 mm/m
0.020 mm + 0.080 mm/m
High Precision (1)
0.020 mm + 0.015 mm/m
Reference Distance
300 mm
Depth of Field
250 mm
Output Format
. stl ,. ply ,. obj , igs , wrl , xyz ,. dae ,. fbx ,. ma ,. asc etc., can be customized
Weight
0.95kg
Dimensions
315 × 165 × 105 mm
Operating Temperature
-10～40℃
Interface Type
Gigabit Ethernet
Patent Certificates
CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN2049 44431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN2049 02785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN303453606S, US10309770B2, KR 102096806B1
● Applications
