- Product Description
-
- Commodity name: PRINCE series handheld 3D scanner
PRINCE is the world's first 3D scanner with two distinctly different operating modes, independently developed by ThinkSee Technology. It is designed using a groundbreaking dual-color laser principle, taking full advantage of the high adaptability of red lasers and the ultra-low noise characteristics of blue lasers, achieving a perfect fusion of ease of operation and exquisite detail. When scanning large objects, PRINCE can be combined with the MSCAN global photogrammetry system to significantly improve volume accuracy. The PRINCE 3D scanner is easily portable to industrial sites and can perform efficient and accurate scans according to the size, shape, and scanning conditions of the object.
PRINC Three-series handheld 3D scanner
● Product Introduction
PRINCE is the world's first 3D scanner independently developed by Sikan Technology set with two distinctly different working modes The scanner uses a breakthrough dual-color laser principle in its design and development, making full use of the
high adaptability of red light and the ultra-low noise characteristics of blue laser, truly achieving a perfect fusion of convenient operation and extreme detail. PRINCE When scanning large-volume objects, it can be used with the global photogrammetry system
MSCAN to significantly improve volume accuracy. PRINCE The 3D scanner can be easily carried to the industrial site and perform efficient and accurate scanning according to the size, shape, and working conditions of the scanned object.
● Product Features
Dual-color laser
Red and blue laser scanning modes can be switched quickly, with the flexibility and portability of a handheld 3D scanner, while acquiring 3D
data with ultra-high detail.

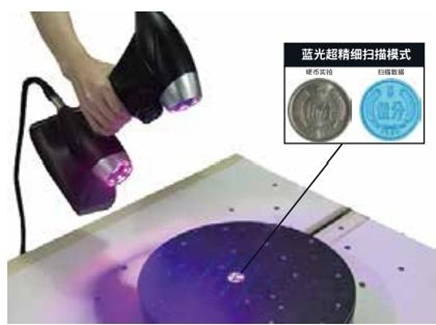

Extreme Detail
In blue light mode, using 5 a bundle of parallel laser lines for scanning, the extremely high resolution can clearly acquire 3D details
that are difficult to obtain with traditional handheld red lasers.
Ultra-high precision
Accuracy up to 0.030 mm, The external environment has little effect on scanning accuracy, even under direct sunlight, it can still work normally.
High-speed scanning
Multiple red cross-line lasers for scanning, fast scanning speed; single red line laser scanning, can quickly acquire 3D data of deep holes and blind spots.
● Technical Parameters
PRINCE Series Handheld 3D Scanner Technical Specifications
Model Number PRINCE 775 PRINCE 335 Scanning Mode
R Standard Scanning Mode
B Ultra-fine Scanning Mode
R Standard Scanning Mode
B Ultra-fine Scanning Mode
Light Source Type
14 cross + 1 red laser line
5 parallel blue laser lines
6 cross + 1 red laser line
5 parallel blue laser lines
Deep Hole Scanning
Supported
Accuracy
0.030 mm
Scanning Rate
480,000 measurements/second
320,000 measurements/second
265,000 measurements/second
320,000 measurements/second
Camera Frame Rate
60 fps
120 fps
60 fps
120 fps
Maximum Scanning Area
275 mm × 250 mm
200 mm × 200 mm
225 mm × 250 mm
200 mm × 200 mm
Laser Class
CLASS Ⅱ (Eye Safe)
Resolution
0.050 mm
0.020 mm
0.050 mm
0.020 mm
Volume Accuracy
Standard
0.020 mm + 0.060 mm/m
0.010 mm + 0.060 mm/m
0.020 mm + 0.080 mm/m
0.010 mm + 0.080 mm/m
High Precision (1)
0.020 mm + 0.015 mm/m
0.010 mm + 0.015 mm/m
0.020 mm + 0.015 mm/m
0.010 mm + 0.015 mm/m
Distance
300 mm
150 mm
300 mm
150 mm
Depth of Field
250 mm
100 mm
250 mm
100 mm
Output Format
.stl, .ply, .obj, .igs, .wrl, .xyz, .dae, .fbx, .ma, .asc, etc., customizable
Weight
0.95 kg
Dimensions
315 x 165 x 105 mm
Operating Temperature
-10～40℃
Interface
Gigabit Ethernet
Patent Certificates
CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204 944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204 902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN1065 00628B,
CN206132003U, CN209310754U, US10782126, KR102073205B1, US10309770B2, KR1020 96806B1
● Application
