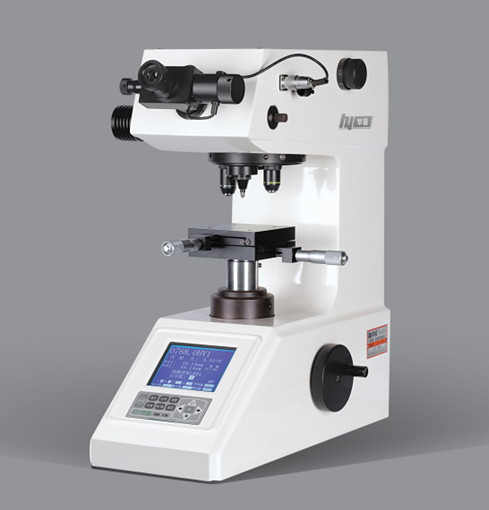

HVS-1000A/1000B Digital Display Micro-Vickers Hardness Tester
The HVS-1000A hardness testing equipment is equipped with an automatic turret function, while the HVS-1000B uses a manual turret design. Both feature a unique frictionless spindle ensuring precise test force, a high-precision optical measurement system, and a precision coordinate stage, providing a reliable and efficient solution for hardness testing in industrial applications.
Keywords:
Hardness tester and consumables
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: HVS-1000A/1000B Digital Display Micro-Vickers Hardness Tester
The HVS-1000A hardness testing equipment is equipped with an automatic turret function, while the HVS-1000B uses a manual turret design. Both feature a unique frictionless spindle ensuring precise test force, a high-precision optical measurement system, and a precision coordinate stage, providing a reliable and efficient solution for hardness testing in industrial applications.
HVS-1000A/1000B Digital Display Micro-Vickers Hardness Tester
Main Features:
- HVS-1000A Automatic turret type;
- HVS-1000B Manual turret type;
- Frictionless spindle, high test force accuracy;
- High-precision optical measurement system, precision coordinate stage;
- Chinese and English interface switching;
- Various hardness value conversions;
- Automated testing process, simple operation, no human operational errors;
- Equipped with RS232 Data interface;
- Optional Knoop indenter for Knoop hardness testing;
- Optional HYHV300 Image measurement system ；
- Accuracy conforms to GB/T4340.2 ISO6507-2 and the US ASTM E384 。
Application Range:
- Ferrous metals, non-ferrous metals, IC Sheets, surface coatings, laminated metals;
- Glass, ceramics, agate, gems, etc.;
- Measurement of depth and gradient of carburized layers, nitrided layers, and quenched hardened layers;
- Micro-Vickers hardness measurement of small parts such as thin plates and sheets.
Technical Parameters:
- Measurement Range: 1-3065HV
- Test force ：0.09807、0.2452、0.4904、0.9807、1.961、2.942、4.904、9.807 ( N ) 10、 25、 50、 100、 200、 300、 500、 1000 ( gf )
- Hardness scale :HV0.01、HV0.025、HV0.05、HV0.1、HV0.2、HV0.3、HV0.5、HV1
- Measurement system magnification: 400 X (measurement), 100 X (observation)
- Minimum detection unit: 0.0625μm
- Maximum allowable height of specimen: 75mm
- Distance from indenter center to machine wall: 110mm
- Power supply: AC220V，50/60HZ
- Dimensions: 470 x 320 x 500 ( mm )
- Weight: Approximately 40kg
Main Accessories:
- Coordinate stage: 1 pcs
- Fine axis stage: 1 pcs
- Thin plate stage: 1 pcs
- Clamp: 1 pcs
- Large V Standard block: 1 pcs
- Small V Standard block: 1 pcs
- Diamond pyramidal indenter: 1 pcs
- Standard microhardness block: 2 pcs
- Micro printer: 1 pcs
