TrackScan 3D scanning system
TrackScan - a tracking 3D scanning system. It uses intelligent optical tracking measurement technology and high-quality optical equipment to achieve ultra-high precision dynamic 3D measurement without the need for markers. It can be applied to quality control, product development, reverse engineering, and other aspects.
Keywords:
3D scanner
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: TrackScan 3D scanning system
TrackScan - a tracking 3D scanning system. It uses intelligent optical tracking measurement technology and high-quality optical equipment to achieve ultra-high precision dynamic 3D measurement without the need for markers. It can be applied to quality control, product development, reverse engineering, and other aspects.
Product Introduction
TrackScan- Tracking 3D scanning system, using intelligent optical tracking measurement technology, Equipped with high-quality optical equipment, ultra-high precision dynamic 3D measurement can be achieved without the need for target points, It can be applied to quality control, product development, reverse engineering, and other aspects.
Based on different scanning scene requirements,
Multiple working modes can be freely switched. 34-beam intersecting blue laser ultra-fast scanning, efficient and flexible; 7-beam parallel blue TrackScan-P42 laser fine scanning, ultimate details; single-beam blue laser scan ning, quickly acquiring 3D data of deep holes and blind spots.
Can be equipped with portable
TrackScan-P42 CMM measuring stylus T-Probe, High-precision point cloud data of complex areas such as workpiece gaps, holes, and grooves can be accurately obtained. It can also provide a development interface to work with robots to achieve intelligent online batch
automated 3D detection. Product Features
No target points needed, intelligent tracking
Based on intelligent optical tracking measurement technology,
TrackScan-P42 tracking three dimensional scanning system does not require target points, scanning is immediate, greatly improving work efficiency and reducing labor and material costs. Super strong adaptability and environmental perception
Easily acquire 3D data of bright and black objects; not easily affected by environmental factors, vibrations,
temperature, and other external factors. Dynamic reference real-time tracking
Using the dynamic reference function,
it can TrackScan-P42 or objects E-Track moving normally, and acquire the complete 3D data of the object in real time. Composite positioning, precise capture
Supports optical tracking and marker point tracking modes, which can be flexibly switched according to the on-site work
situation. Extremely fast and efficient, fearless of details
beam intersecting blue laser ultra-fast scanning, scanning speed
34 1,900,000 measurements/second; 7-beam parallel blue laser fine scanning, ultimate details; single-beam blue laser scanning, quickly acquiring 3D data of deep holes and blind spots locations. Wireless stylus measurement, no limitations
Portable
single point measuring stylus T-Probe, High-precision point cloud data of complex areas such as workpiece gaps, holes, and grooves can be accurately obtained. It can also repeatability 0.030 mm, Used to acquire key parts such as datum holes and hidden points. Measurement range freely expandable
By adjusting
the position of the optical tracker, the measurement range E-Track can be freely and flexibly expanded, while maintaining stable high precision. Aerospace-grade carbon fiber material
The TrackScan-P42 scanner adopts an integrated structural design, using aerospace-grade carbon fiber material, and is incredibly strong and durable.
TrackScan
Tracking 3D scanning system Model Number
Mode TrackScan-P42 TrackScan-P30 TrackScan-P22 Scanning Mode
High-speed scanning 34 intersecting blue laser lines
22 intersecting blue laser lines 14 intersecting + 1 red laser line Fine scanning 7 parallel blue laser lines
Deep hole scanning Additional 1 blue laser line
Total number of laser lines
42 beams
30 beams 22 beams Accuracy
0.025mm
0.03mm Maximum scanning rate
1,900,000 measurements/second
1,200,000
measurements/second
480,000 measurements/second
Scanning area
310mm×350mm
275mm×250mm CLASS TYPE
CLASSI Ⅱ(Eye Safety)
Minimum Resolution
0.020 mm
Volume Accuracy
( Using Scanner Alone)
9.1m³
0.064 mm
16.6 m³
0.078 mm
Volume Accuracy( Used with MSCAN-L15 Global PhotogrammetrySystem)
0.044 mm +0.015 mm/m
T-Probe
Optional
Optional
Single Point Repeatability
Maximum scanning rate
Scanning Object Size Range
( Recommendation)
200～6000 mm
Baseline Distance
300 mm
Depth of Field
320 mm
Output Format
.st,ply,.obj,igs,wrl,.xyz,.dae,.fbx,.ma,.asc, etc., customizable
Operating Temperature
5～40℃
Interface
USB 3.0
Patent Certificates
CN204329903U,CN104501740B,CN104165600B,CN204988183U,CN2048,54633U, CN204944431U,CN204902788U,CN105068384B, CN105049664B,CN204902784U,CN 204963812U,CN204902785U,CN204902790U,CN106403845B,CN209197685U,CN 209263911U,CN106500627B,CN106500628B,CN206132003U,CN211121096U,US10309770B2,KR102096 806B1

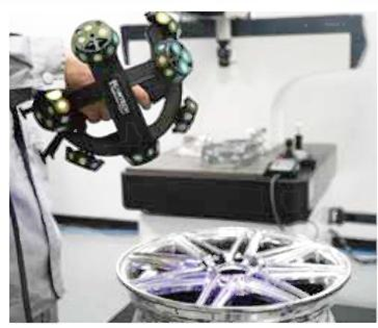

Application scenarios
