Metallographic microscope

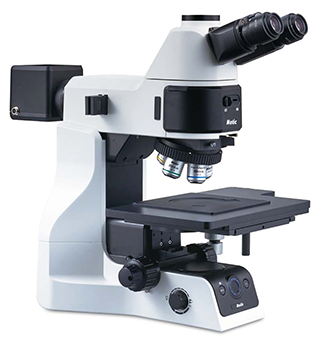

The Motic PA53MET product provides clear optical performance and equally excellent ergonomic design. Its versatile objective lenses ensure clarity in any observation mode, while its intelligent design reduces operator fatigue during prolonged use. Interchangeable modules meet a variety of application needs. An automatic power-saving mode is engaged whenever the operator temporarily leaves. Enabling this power-saving mode protects your sample from the heat of the illuminator. This mode also saves energy, extends the life of the bulb, and lowers overall operating costs. The sleep mode duration can be adjusted through Motic Analysis software
Keywords:
Metallographic testing and consumables
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: Metallographic microscope
The Motic PA53MET product provides clear optical performance and equally excellent ergonomic design. Its versatile objective lenses ensure clarity in any observation mode, while its intelligent design reduces operator fatigue during prolonged use. Interchangeable modules meet a variety of application needs. An automatic power-saving mode is engaged whenever the operator temporarily leaves. Enabling this power-saving mode protects your sample from the heat of the illuminator. This mode also saves energy, extends the life of the bulb, and lowers overall operating costs. The sleep mode duration can be adjusted through Motic Analysis software
MOTIC OPTILUTION
Integrating various optical knowledge, technologies and innovations, Motic PA53MET The product provides brand-new optical effects and equally excellent ergonomic design, future quality capabilities and innovative modules, a representative of Motic modern optics.
I. Optical Performance
Multifunctional objectives ensure clarity under any observation method. Currently, Motic optical technology has been recognized by numerous optical researchers worldwide.
II. Intelligent Design
Ergonomic design, compact body size, application materials and multifunctional digital technology ensure that operators experience reduced fatigue during prolonged operation.
III. Innovative Modular Design
Compact size, interchangeable modules meet various application needs, allowing for the selection of appropriate optical accessories. For example: Reflected light illuminator, condenser, horizontal moving stage, motorized Z-axis, motorized nosepiece, etc.
PA53MET The aspherical prism design of the lamphouse and objective lens ensures high clarity and high color reproduction of the field of view. Multiple observation methods make it easier for operators to obtain the required images and product inspection.
IV. Customized Optical and Illumination Systems
Reflected Light Illuminator
The reflected light illuminator provides various observation methods, such as bright field, dark field, and differential interference contrast, to meet the needs of various sample inspections.
BF/DF and ND Combination Lever
The BF/DF lever on the front panel allows for easy changes in observation methods. The linked ND filter protects the operator's eyes from strong light damage when switching from dark field (DF) to bright field (BF).
Analyzer and Polarizer
Rotating the polarizer and analyzer combination allows for quick and easy switching between DIC/POL observation methods and other observation methods. The plug-in design of the polarizer and analyzer makes them easy to remove and insert from the microscope.
DIC Provides Stereoscopic Images
Using a single, insertable DIC prism, Motic microscopes easily switch from other observation methods to differential interference contrast observation at any magnification, as the differential interference contrast position does not change.
Transmitted Light System and Condenser
Built-in ND6, ND25, and LB filters in the transmitted light path; multiple condensers are available.
The PA53MET-3D microscope provides clear and accurate results with an innovative design.
Easily obtain 3D images through the Z-axis focusing module. Combined with software, accurate 3D measurement provides clear 2D image capture. The controller helps in quick and accurate focus adjustment.
V. Achieving surprising results through a high-precision, high-accuracy, and user-friendly 3D analysis system.
Z-axis Module
The Z-axis focusing module's terrain analysis function and 3D features are analyzed through our Motic software, generating all 2D images converted into a 3D profile.
Z-axis Module Parameters
Travel Distance
30mm
Dimensions
W:240 mm
D:157 mm
H:202.5 mm
Accuracy
0.01μm
Repeatability
0.5μm
Max Speed
1.4mm/s
Load Capacity
15kg
Weight
5kg
Model:
Bright Field Series
Dark Field Series
Model
PA53MET
PA53MET-T
PA53MET-3D
PA53MET-T-3D
PA53MET-BD
PA53MET-BD-T
PA53MET-BD-
3D
Optical System
Infinity Corrected Optical System (CCIS)
Illumination
Reflected
Reflected/Transmitted
Reflected
Reflected/Transmitted
Reflected
Reflected/Transmitted
Reflected
Observation Tube
Erect Triocular Head (FN 25), 20° inclination angle, two-stage light path selection: (Visual: Camera - 100:0, 0:100)
Erect Binocular Head (FN25), 20° inclination angle (optional)
Eyepiece
UC-WF 10X/25 ， Diopter adjustable +/-5 (standard)
N-WF 15X/16, diopter adjustable +/-5 (optional)
N-WF20X/12.5, diopter adjustable +/-5 (optional)
Nosepiece
Five-hole bright field nosepiece with DIC slot
Five-hole dark field nosepiece with DIC slot
Motorized five-hole bright field nosepiece with DIC slot (optional)
Motorized five-hole dark field nosepiece with DIC slot (optional)
Plan S-APO Plan Achromat
Plan S-APO 5X/0.15
Plan S-APO 10X/0.3
Plan S-APO 20X/0.45
Plan S-APO 50X/0.8
Plan S-APO 100X/0.9 (Optional)
Plan S-APO BD 5X/0.15
Plan S-APO BD 10X/0.3
Plan S-APO BD 20X/0.45
Plan S-APO BD 50X/0.8
Plan S-APO BD 100X/0.9 (Optional)
LPlan S-APO Long-distance Flat-field Semi-apochromatic Metallurgical Objective (Optional)
LPlan S-APO 20X/0.4
LPlan S-APO 50X/0.55
LPlan S-APO 100X/0.8
LPlan S-APO BD 20X/0.4
LPlan S-APO BD 50X/0.55
LPlan S-APO BD 100X/0.8
Focusing Mechanism
Travel range: 29.5 mm, coarse and fine adjustment handwheels; Coarse adjustment: 17.7 mm/revolution, fine adjustment: 0.1 mm/revolution upper limit, tension adjustment ring
Electrical
Integrated power supply for 12V 100W DC dimming. LED brightness indicator, IL switch and ECO switch
Reflective Main Body
Yes
/
/
/
Yes
/
/
Transmission Main Body
/
Yes
/
/
/
Yes
/
Reflective 3D Main Body
/
/
Yes
/
/
/
Yes
Transmission 3D Main Body
/
/
/
Yes
/
/
/
Reflective Illumination
Kohler illumination system/bright field, DIC, simple polarization
Kohler illumination system/bright field, dark field, DIC, simple polarization
Light Source
12V / 100W long-life halogen bulb
Transmission Illumination
/
Yes
/
/
/
Yes
/
Illumination
/
Kohler illumination system bright field/built-in filter
/
/
/
Kohler illumination system bright field/built-in filter
/
Light Source
/
12V/ 100W long-life halogen bulb
/
/
/
12V/100W long-life halogen bulb
/
Condenser
/
LWCD, N.A
0.65
/
/
/
LWCD, N.A
0.65
/
Stage
4x4" size 210(W) X 170(D) mm, travel 104(X) X 102(Y) mm, metal stage plate, glass stage plate
Optional 6x4" stage, 6x6" stage
Dimensions
Approx. 246(W) x 572(D) x 514(H)
Weight
Approx. 19kg
