Olympus BX53M Industrial Metallurgical Microscope
The BX53M series features a modular design, providing versatile solutions for a wide range of materials science and industrial applications. BX53M enhances integration with Olympus Stream software, offering users of routine microscopy and digital imaging a seamless workflow from observation to report creation.
Keywords:
Metallographic testing and consumables
Electronics and Electrical Engineering
Product Attachments:
Retail Price
Market Price
Weight
Category:
Remaining Stock
隐藏域元素占位
- Product Description
-
- Commodity name: Olympus BX53M Industrial Metallurgical Microscope
The BX53M series features a modular design, providing versatile solutions for a wide range of materials science and industrial applications. BX53M enhances integration with Olympus Stream software, offering users of routine microscopy and digital imaging a seamless workflow from observation to report creation.
Product Introduction
The BX53M series uses a modular design, providing diverse solutions for a wide range of materials science and industrial applications. The BX53M enhances integration with Olympus Stream software, providing a seamless workflow from observation to report creation for routine microscopy and digital imaging users.
Microscopy examination and digital imaging users are provided with a seamless workflow from observation to report creation.

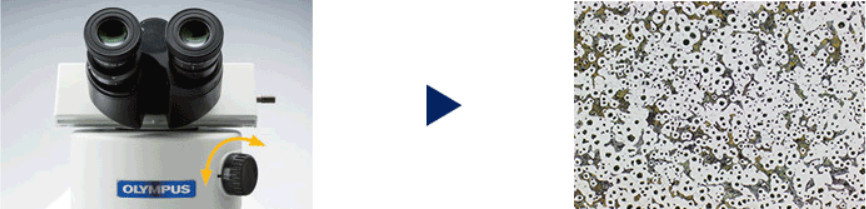

Comfortable and easy to use, making traditional technology easy to operate: simple illuminator
The illuminator design minimizes microscope complex operations required during operation. The knob on the front of the illuminator allows users to easily change observation methods Operators can reflecting light microscope check
quickly switch between frequently used observation methods during inspection, such as from brightfield to darkfield, to polarized light observation, to readily change different types of analysis. In addition, the analyzer can be rotated to achieve simple polarized light observation
adjustment.

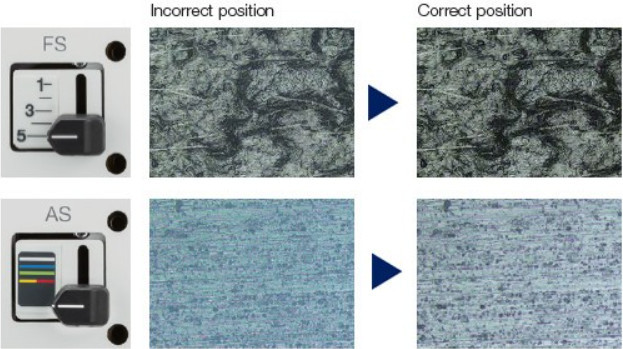

Intuitive microscope control: simple setting of field diaphragm and aperture diaphragm
Using the correct aperture and field diaphragm settings achieves good image contrast and also makes full use of the objective lens's numerical aperture . Indicator marks guide users to make
correct settings according to the observation method and objective lens used.

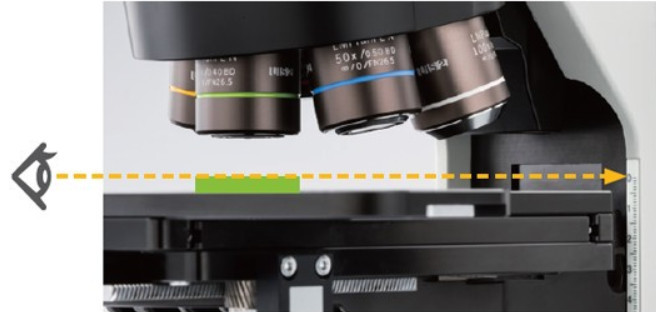

Quick focusing: focus scale
The focus scale on the frame allows the operator to quickly lock the focus. The operator does not need to use the eyepiece to view the sample to roughly align the focus, thus saving time when inspecting samples with different heights.
time 。

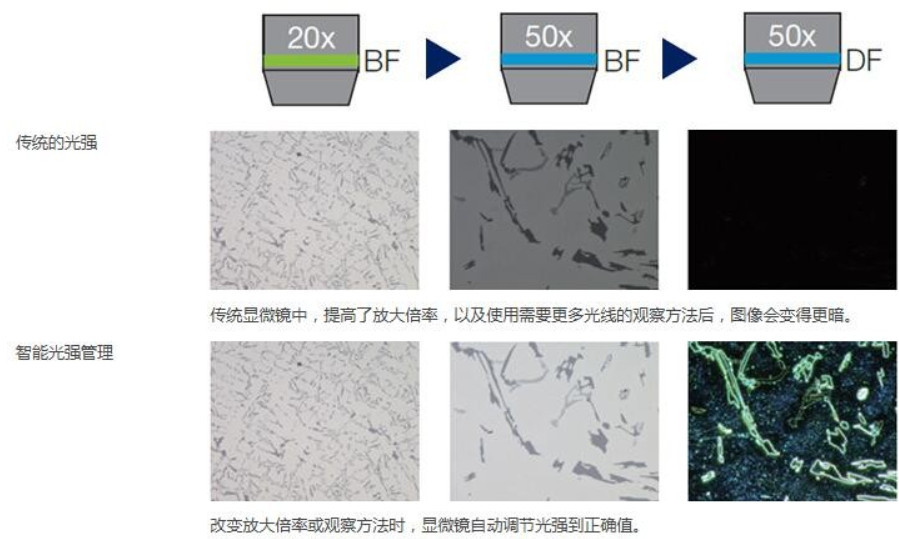

Consistent illumination: intelligent light intensity management
During initial setup, the illumination intensity can be adjusted to match the specific hardware configuration of the encoded illuminator and/or encoded objective lens turret.

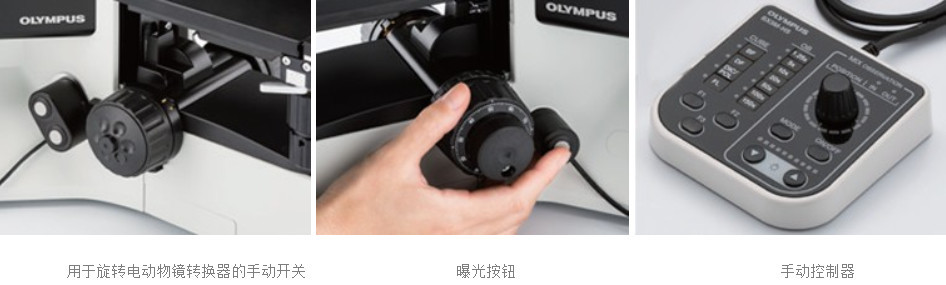

Convenient and user-friendly operation
User-friendly design is crucial for all users. Whether it's a standalone microscope user or a microscope system integrated with Olympus Stream image analysis software, users benefit from the user-friendly operation design of the manual controller, which clearly displays the
microscope's encoded hardware position. Simple manual switches allow users to focus on the sample and inspection work itself.
System designed for image analysis Recoverable microscope settings: encoded hardware
The BX3M incorporates new encoding capabilities, integrating the microscope's hardware settings with Olympus Stream image analysis software. Observation methods, illumination intensity, and objective lens position are all recorded in the software and/or
manual controller. The encoding function allows microscope settings to be automatically saved with each image, allowing for easy restoration of settings and providing documentation for reports. This saves the operator time and
minimizes the probability of using incorrect settings. The current observation settings are always clearly displayed on the manual controller and software.
